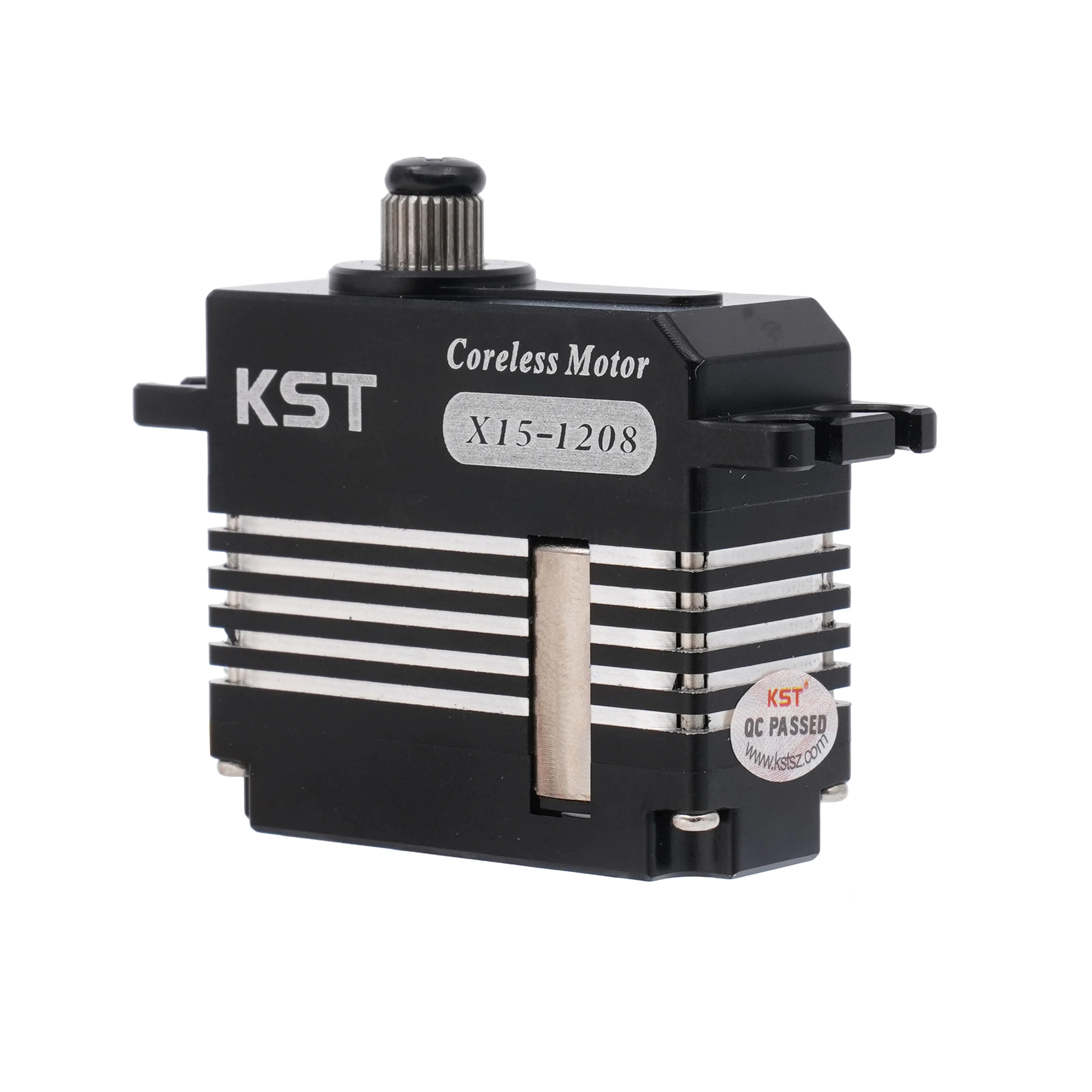

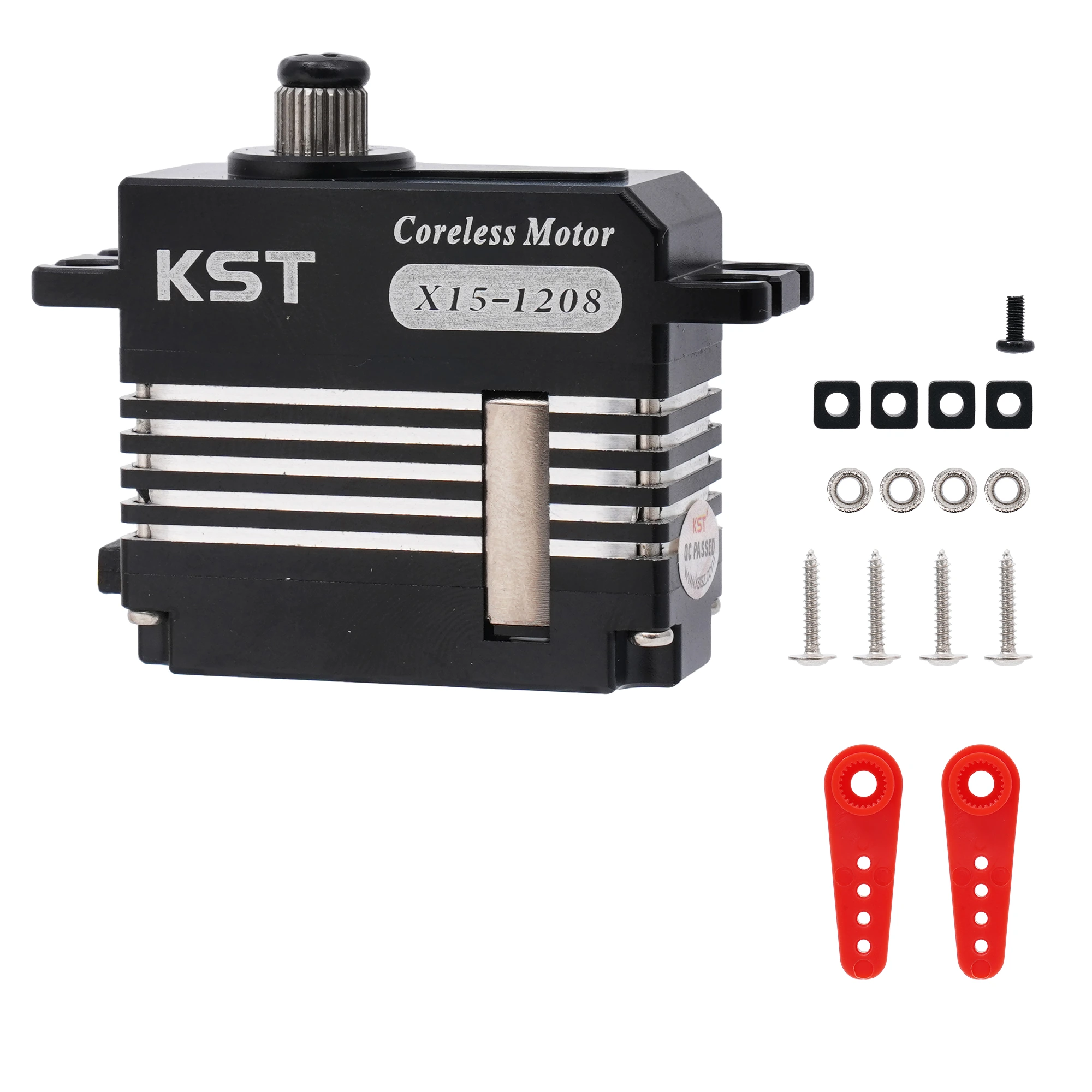

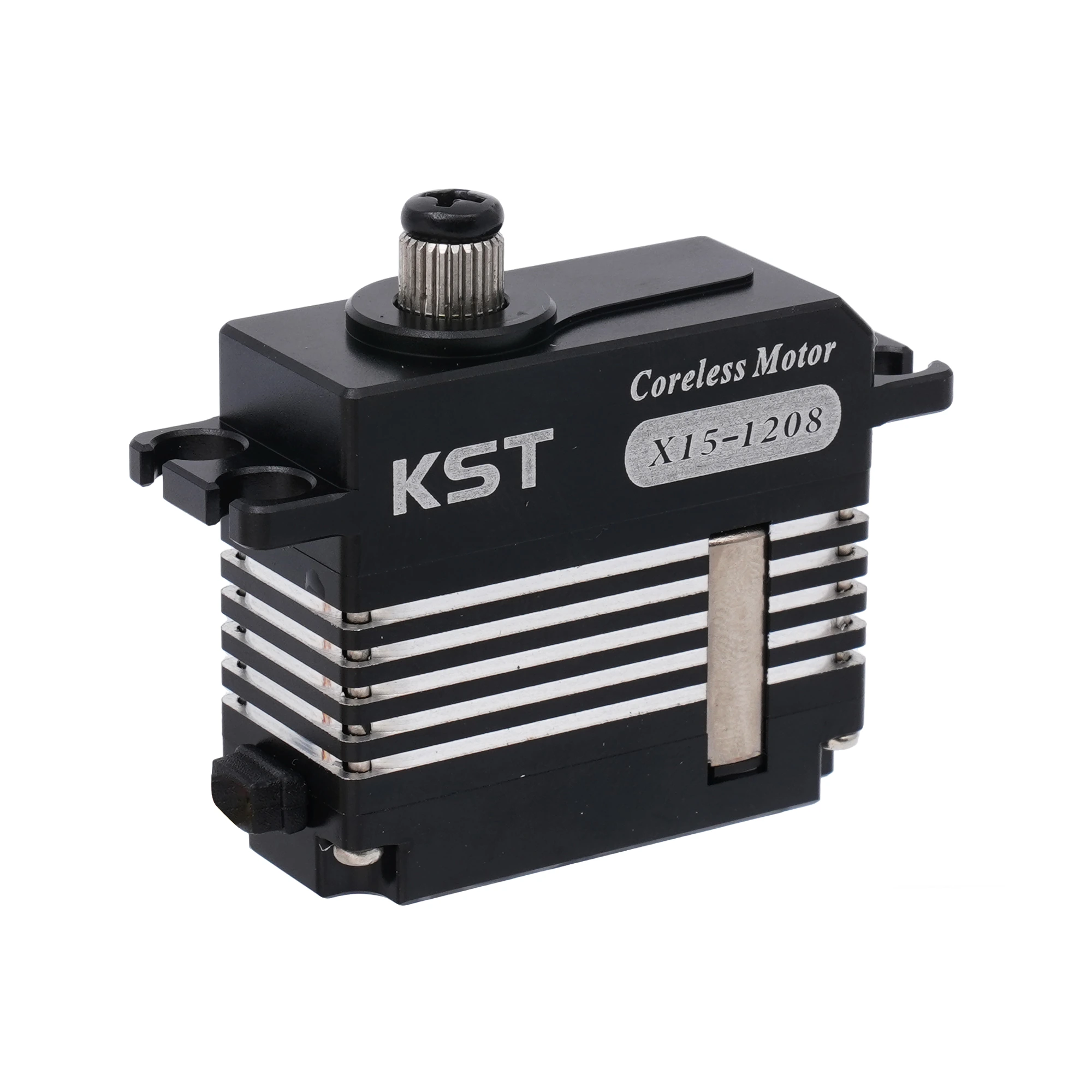

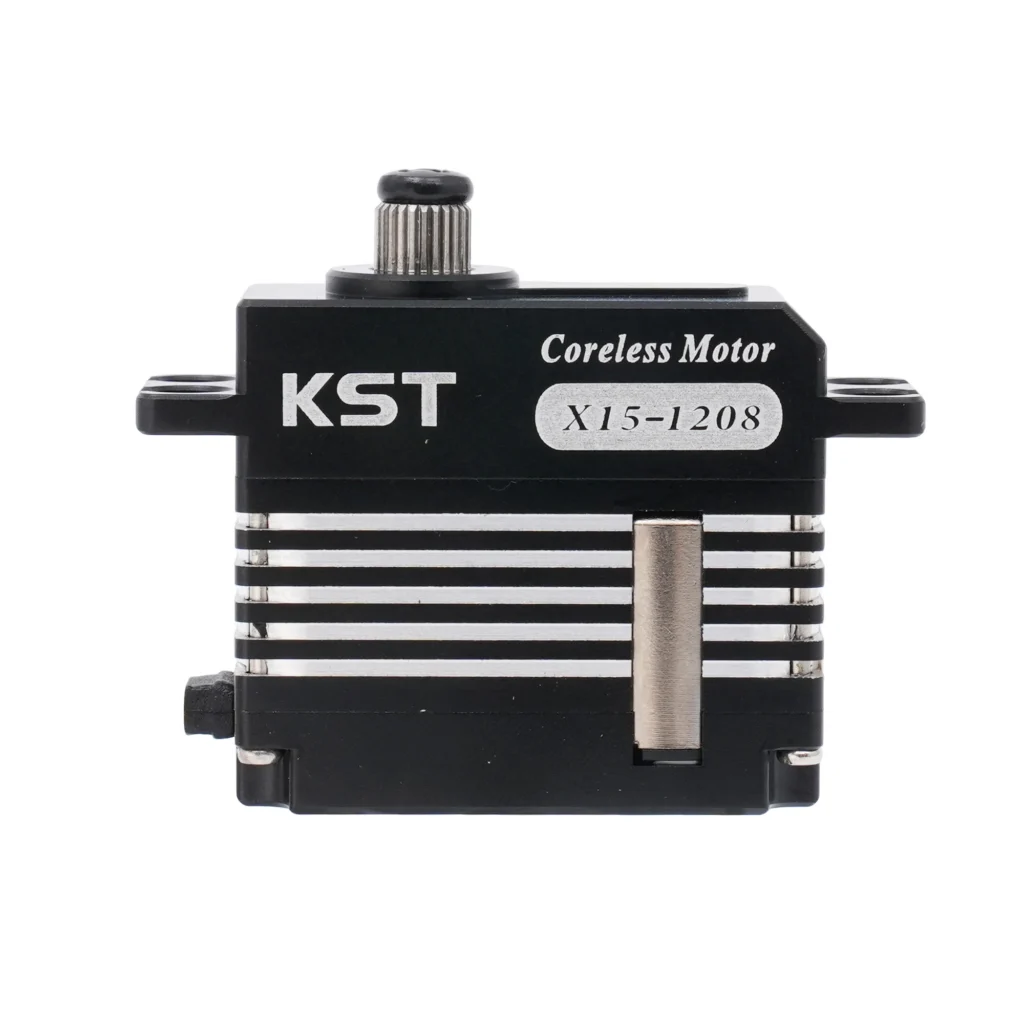

KST X15-1208 Digital Servo
$84.00
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST X15-1208 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC6.0V-8.4V
- Torque: 9.8Kgf.cm@6.0V 12.0Kgf.cm@7.4V 13.5Kgf.cm@8.4V
- Speed: 0.10sec/ 60°@6.0V 0.08sec/ 60° @7.4V 0.07sec/ 60° @8.4V
- Motor: Coreless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Programmable Yes
Technical Specifications
| Rated voltage | DC7.4V |
|---|---|
| Operating voltage | DC6.0V-8.4V |
| Torque | 9.8Kgf.cm@6.0V 12.0Kgf.cm@7.4V 13.5Kgf.cm@8.4V |
| Speed | 0.10sec/ 60°@6.0V 0.08sec/ 60° @7.4V 0.07sec/ 60° @8.4V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±50° = 100° Total |
| Operating temperature | -10℃……+65℃ |
| Soft start | Programmable |
| Programmable | Programmable Yes |
| Case material | Aluminum Alloy |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 35.5*15*32.5mm±0.2mm |
| Weight | 40g±10% |
| Protocol / interface | PWM Command Interface |
