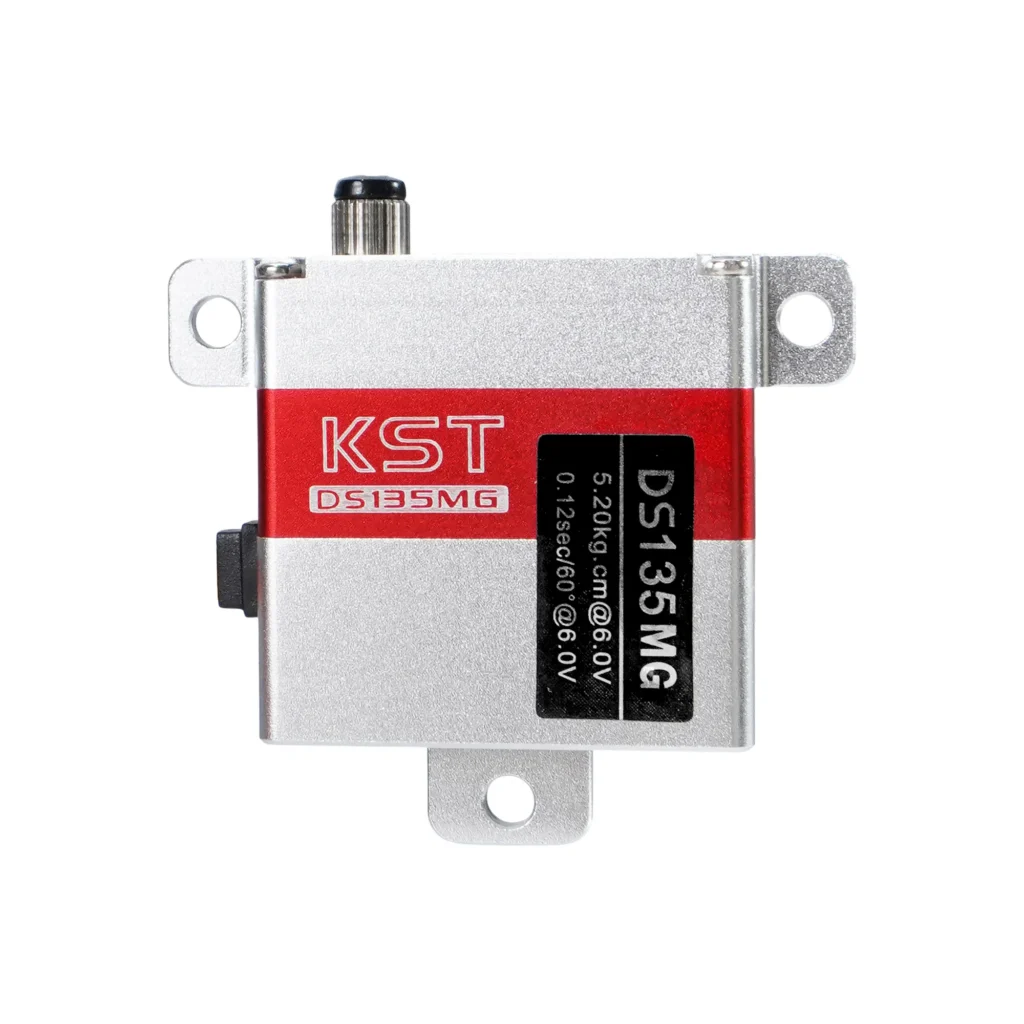

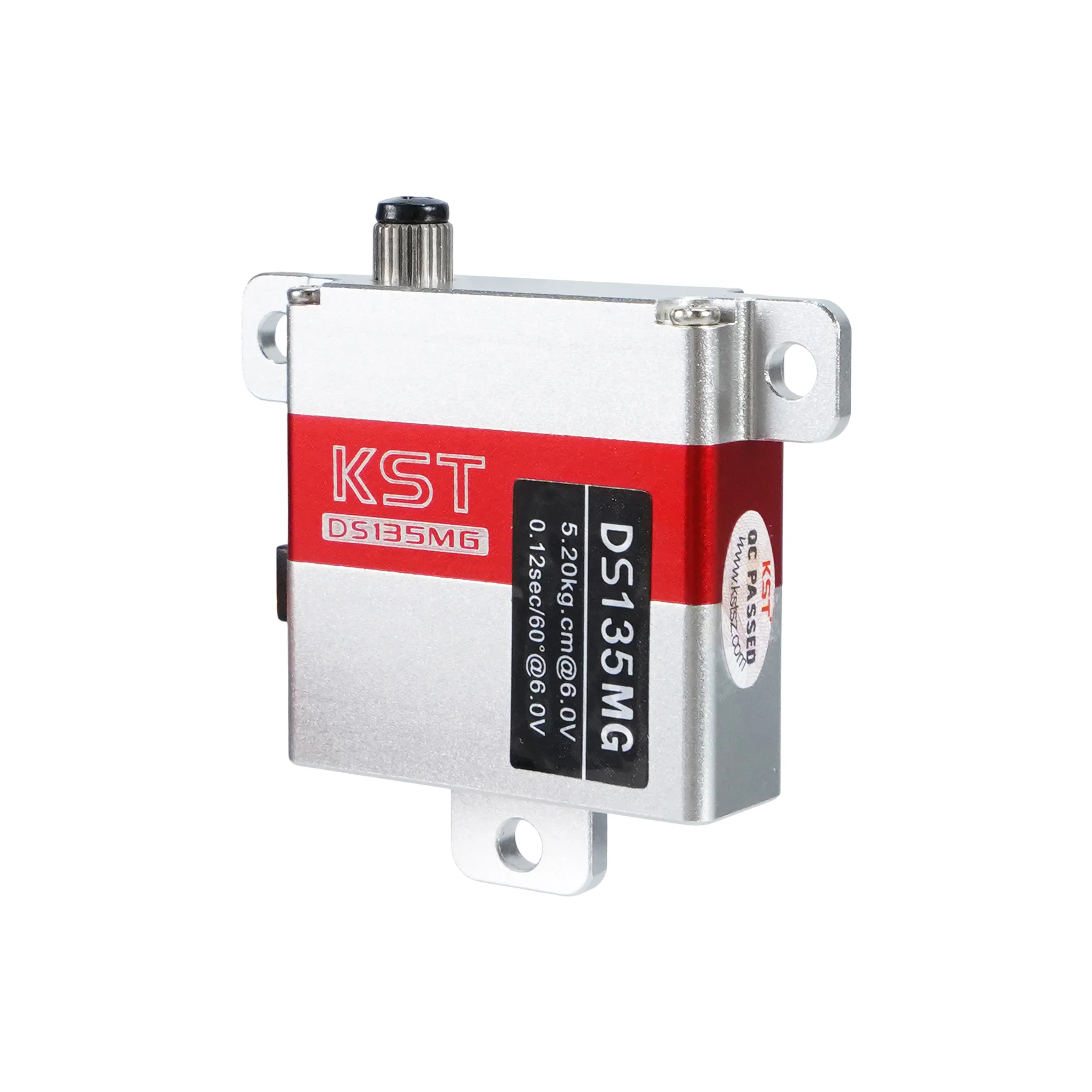

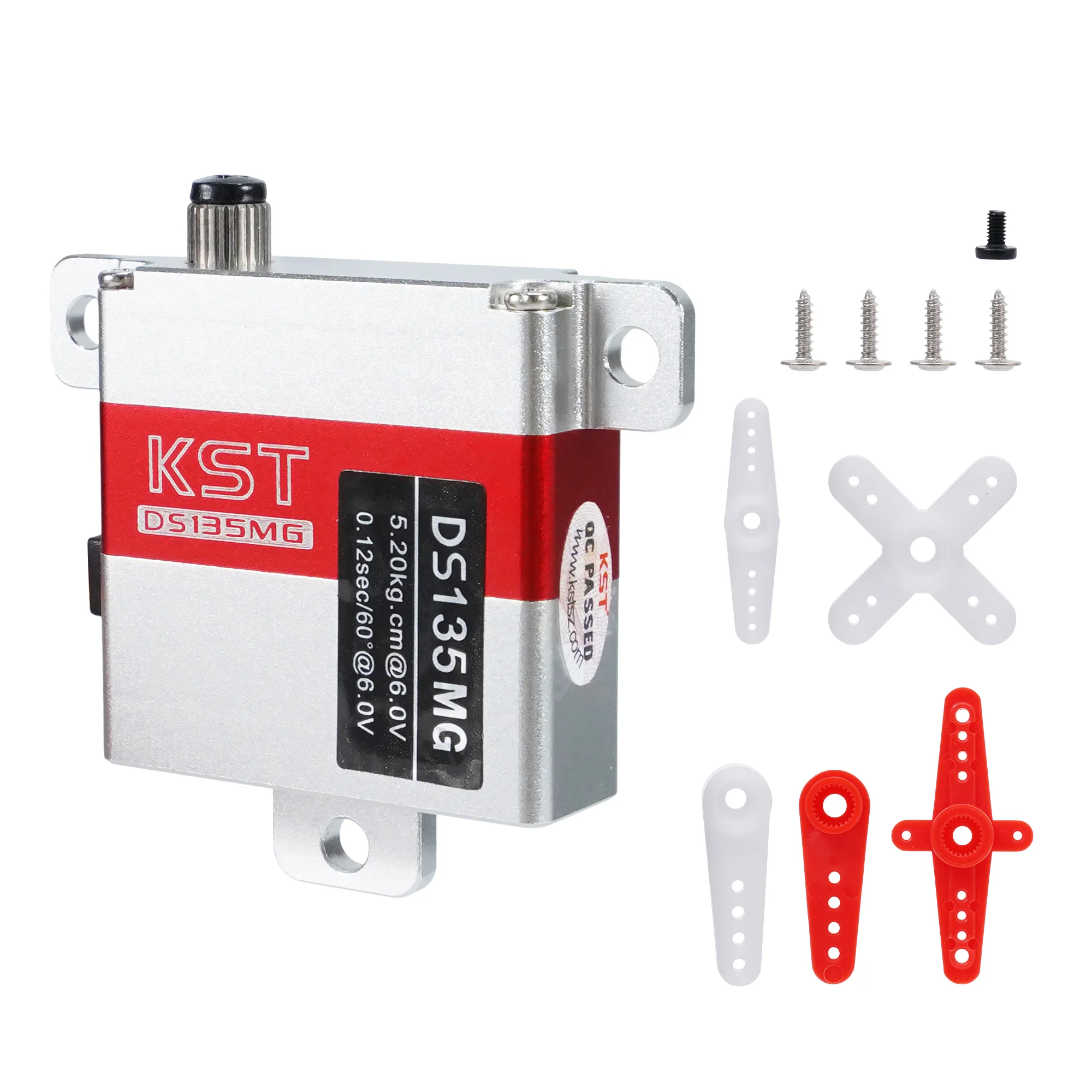

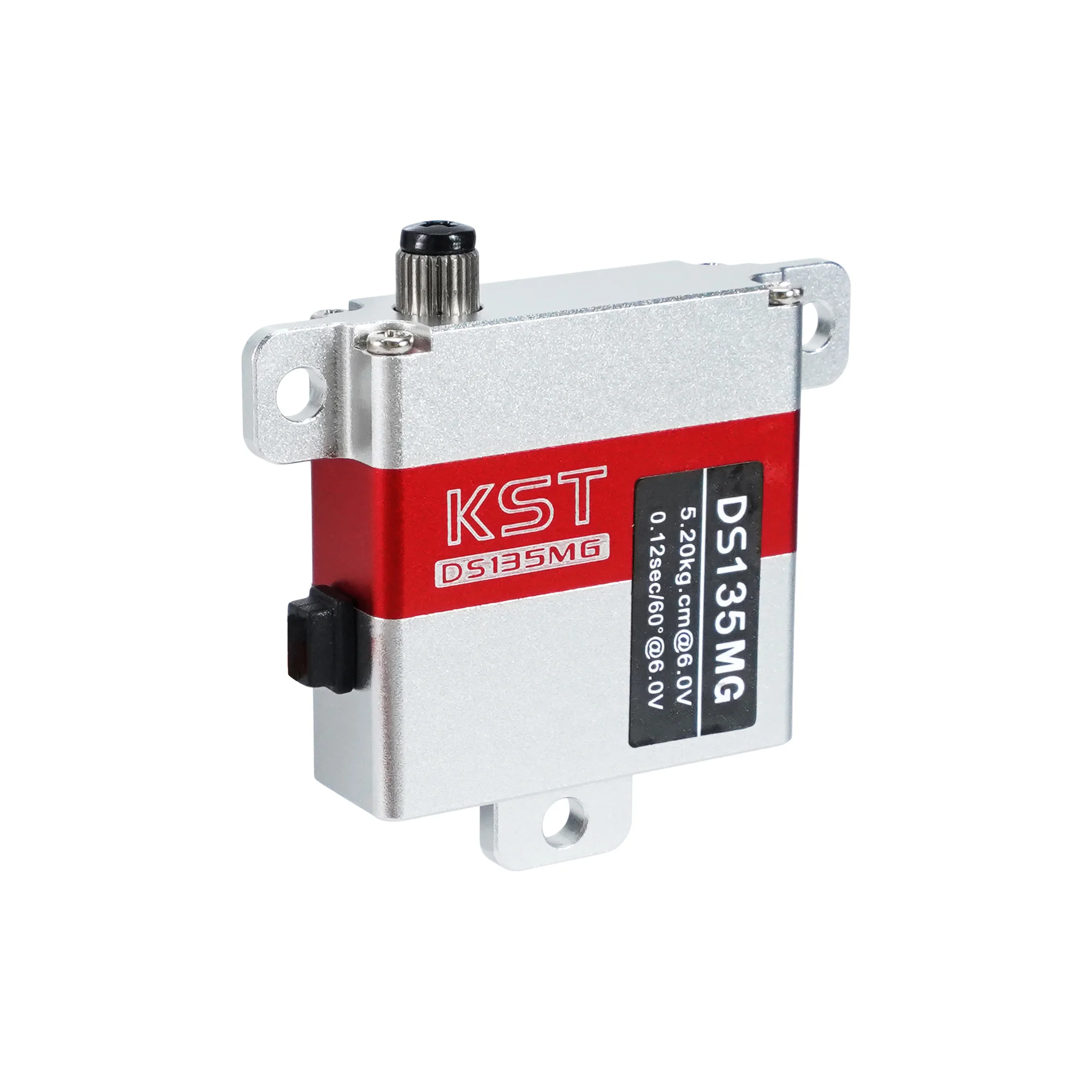

KST DS135MG Digital Servo
$42.00
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
The KST DS135MG Digital Servo is designed for engineering integration where its documented performance, control format and mechanical envelope match the application. Verified manufacturer specifications, materials, dimensions and interface details are listed below.
Key Features
- DC 4.8-6.0 V operation
- Up to 5.2 kgf.cm torque
- 0.12 sec/60° at 6.0 V
- Programmable soft start
- Aluminum-alloy case
- Hardened-steel gears
- 25T 5 mm output spline
- 23 g nominal weight
Technical Specifications
| Rated voltage | DC 4.8 V |
|---|---|
| Voltage range | DC 4.8-6.0 V |
| Torque | 4.3 kgf.cm @4.8 V; 5.2 @6.0 V |
| Speed | 0.15 sec/60° @4.8 V; 0.12 @6.0 V |
| Motor | Coreless DC motor |
| Gears | Hardened steel |
| Case | Aluminum alloy |
| Position sensor | Potentiometer |
| Spline | 25T, 5 mm |
| Default travel | ±50° (100° total) |
| PWM | 1520 us / 333 Hz; pulse range 800-2200 us |
| Position pulses | 1000/1500/2000 us = -50°/0°/+50° |
| Signal voltage | HIGH 3.3-5.0 V; LOW 0.0-1.5 V |
| Dimensions | 30 x 10 x 29.6 mm ±0.2 mm |
| Weight | 23 g ±10% |
| Temperature | -10°C to +65°C |
| 3-wire lead | Orange = PWM signal, Red = DC+ supply, Brown = DC- ground. Physical connector type and cable length are not stated. |
Applications
Compact motion-control assemblies. UAV/drone and robotics integration only where the listed voltage, torque, speed, travel and mechanical envelope satisfy the system design; final suitability remains an integrator validation item.
