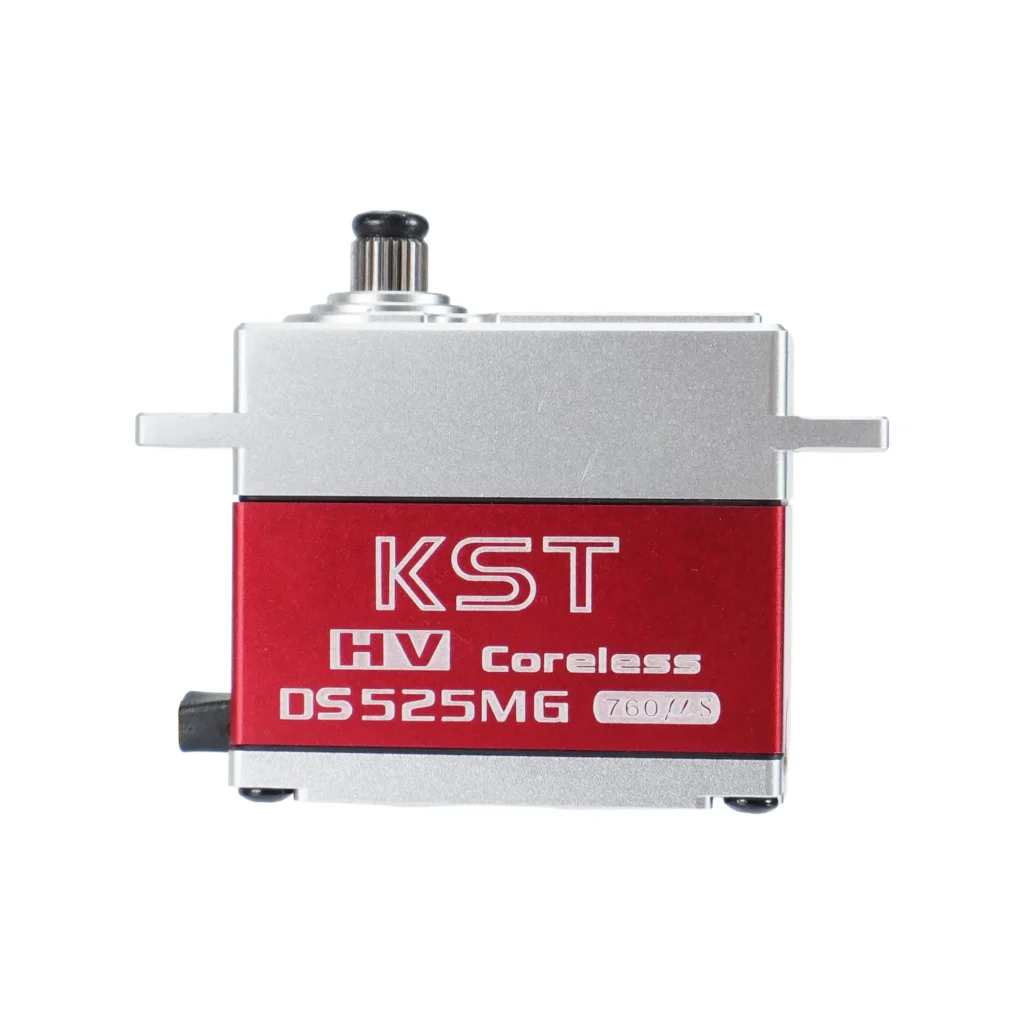

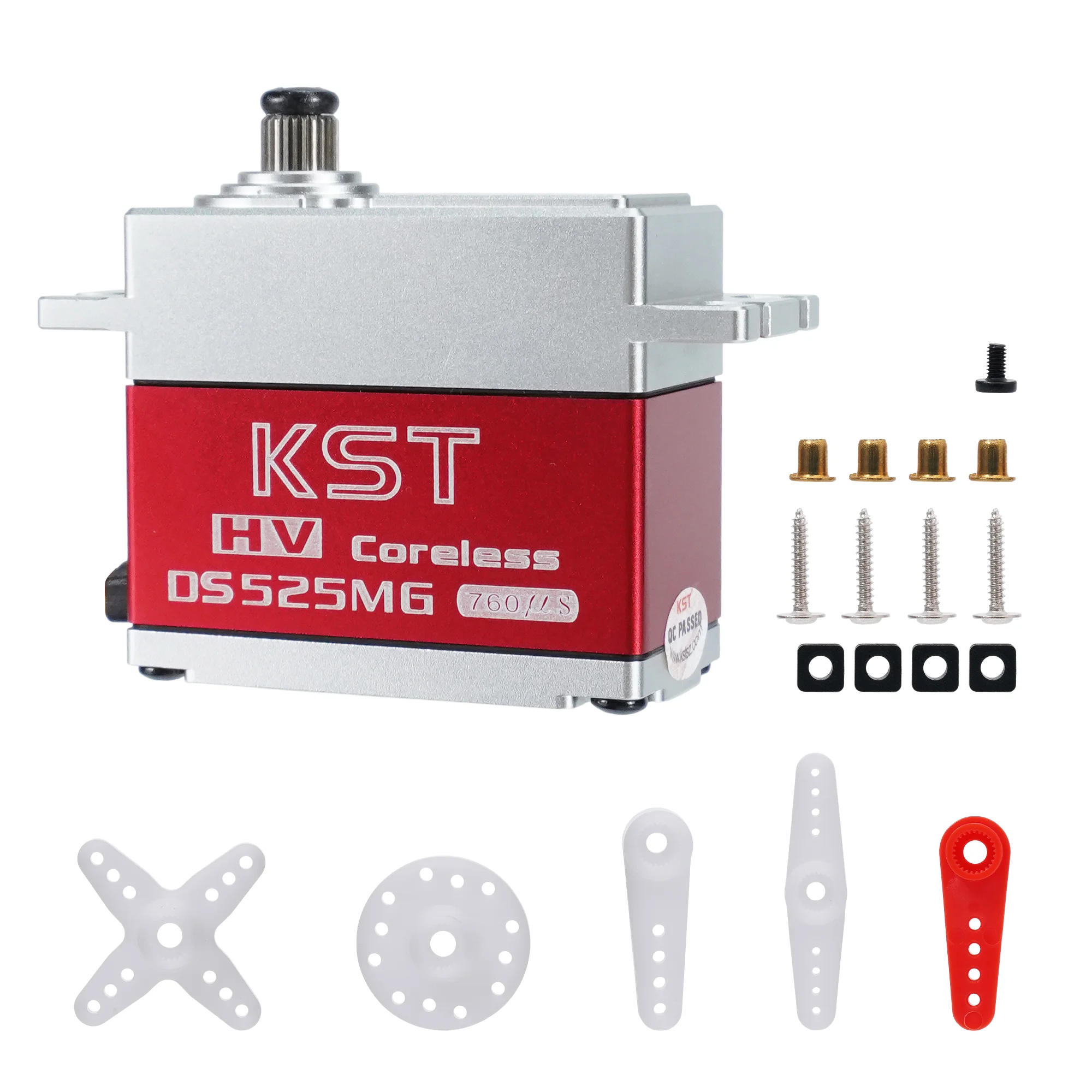

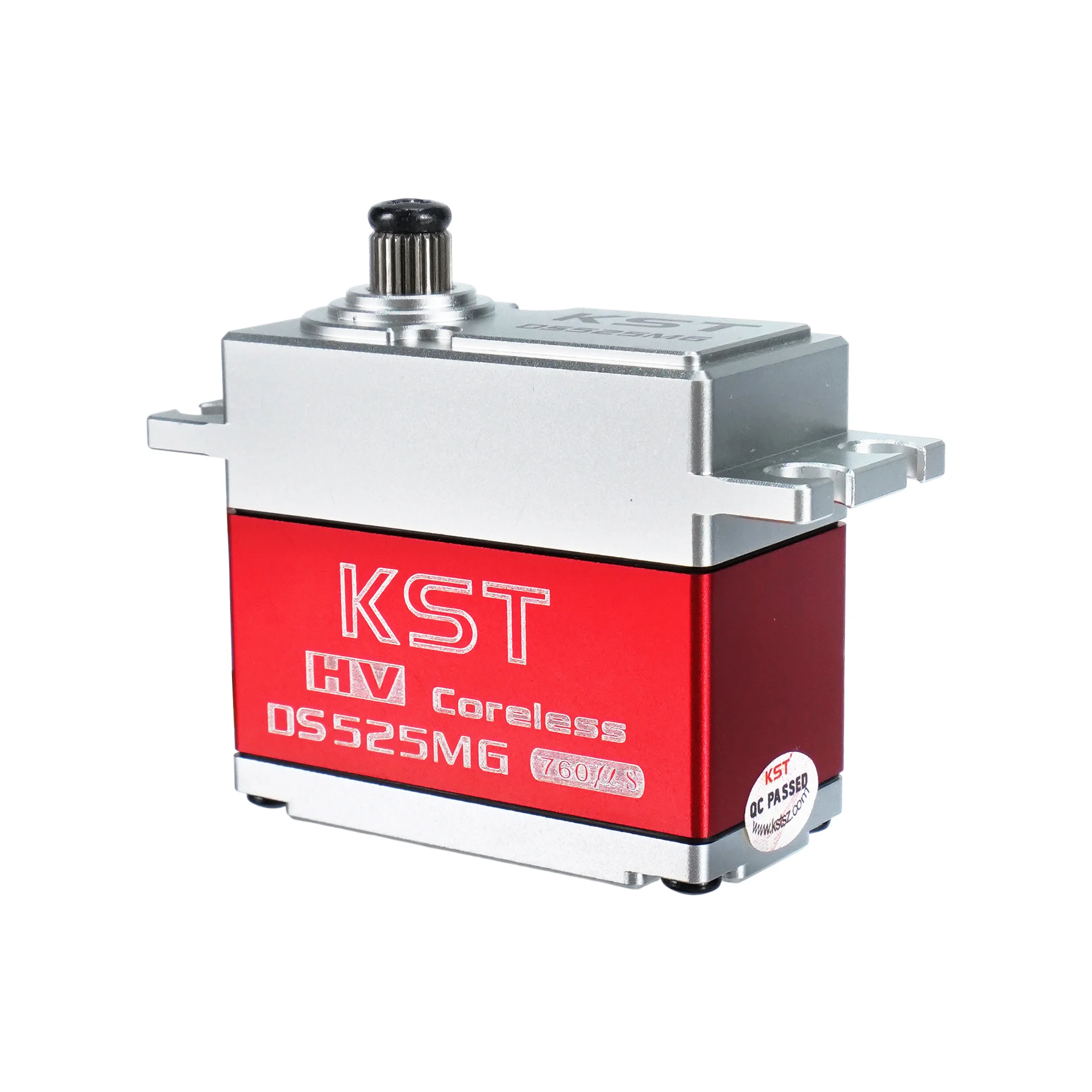

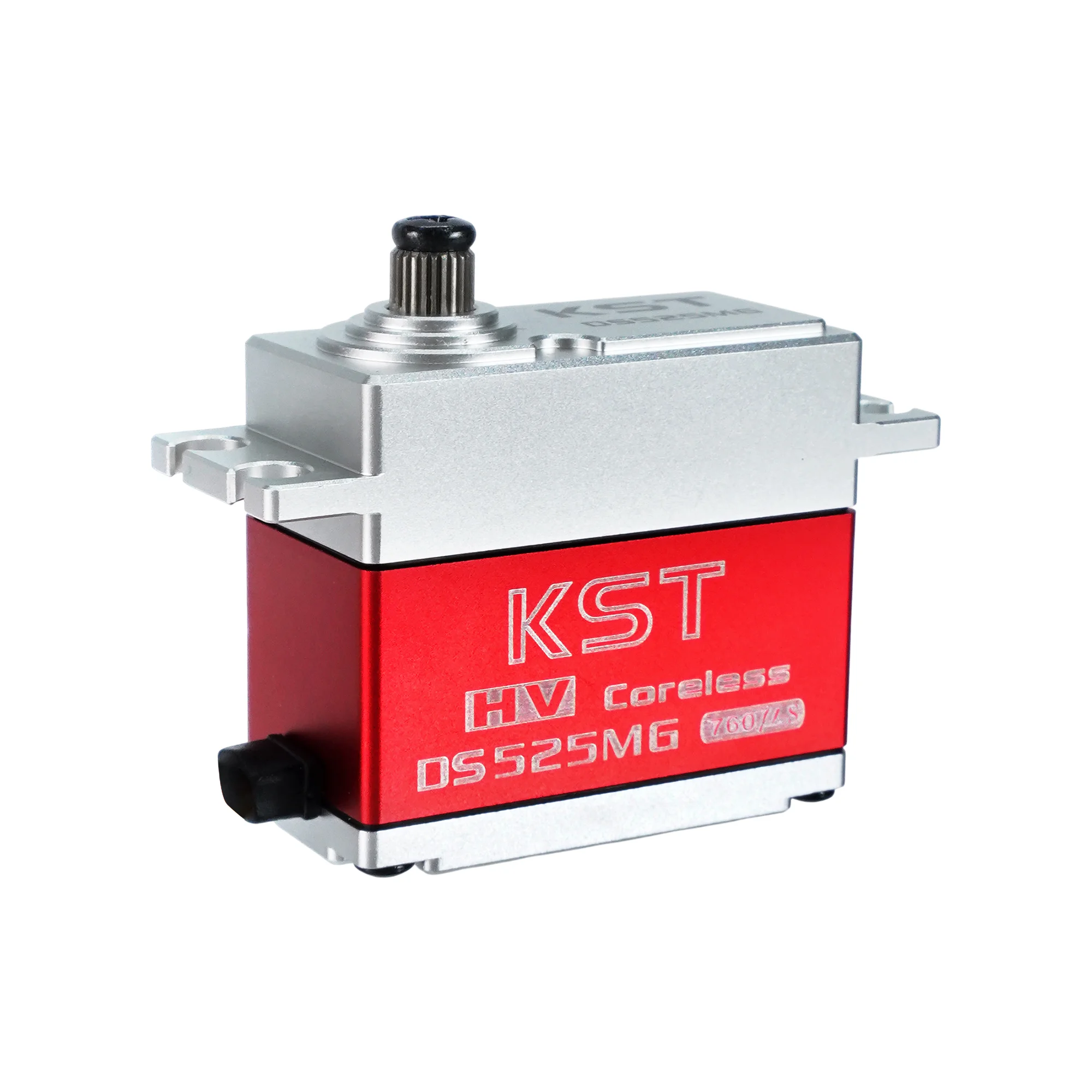

KST DS525MG Digital Servo
59,00 €
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
The KST DS525MG Digital Servo is designed for engineering integration where its documented performance, control format and mechanical envelope match the application. Verified manufacturer specifications, materials, dimensions and interface details are listed below.
Key Features
- 760 us / 560 Hz PWM format
- DC 6.0-8.4 V operation
- Up to 7.5 kgf.cm torque
- 0.040 sec/60° at 8.4 V
- Aluminum-alloy case
- Hardened-steel gears
- 2BB support
- 25T 6 mm output spline
Technical Specifications
| Rated voltage | DC 7.4 V |
|---|---|
| Voltage range | DC 6.0-8.4 V |
| Torque | 5.5 kgf.cm @6.0 V; 6.5 @7.4 V; 7.5 @8.4 V |
| Speed | 0.050 sec/60° @6.0 V; 0.045 @7.4 V; 0.040 @8.4 V |
| Motor | Coreless DC motor |
| Gears | Hardened steel |
| Case | Aluminum alloy |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Spline | 25T, 6 mm |
| PWM | 760 us / 560 Hz; pulse range 450-1050 us |
| Signal voltage | HIGH 3.3-5.0 V; LOW 0.0-1.5 V |
| Dimensions | 40.5 x 20 x 38 mm ±0.2 mm |
| Weight | 70 g ±10% |
| Temperature | -10°C to +65°C |
| 3-wire lead | Orange = PWM signal, Red = DC+ supply, Brown = DC- ground. Physical connector type and cable length are not stated. |
Applications
Compact motion-control assemblies. UAV/drone and robotics integration only where the listed voltage, torque, speed, travel and mechanical envelope satisfy the system design; final suitability remains an integrator validation item.
