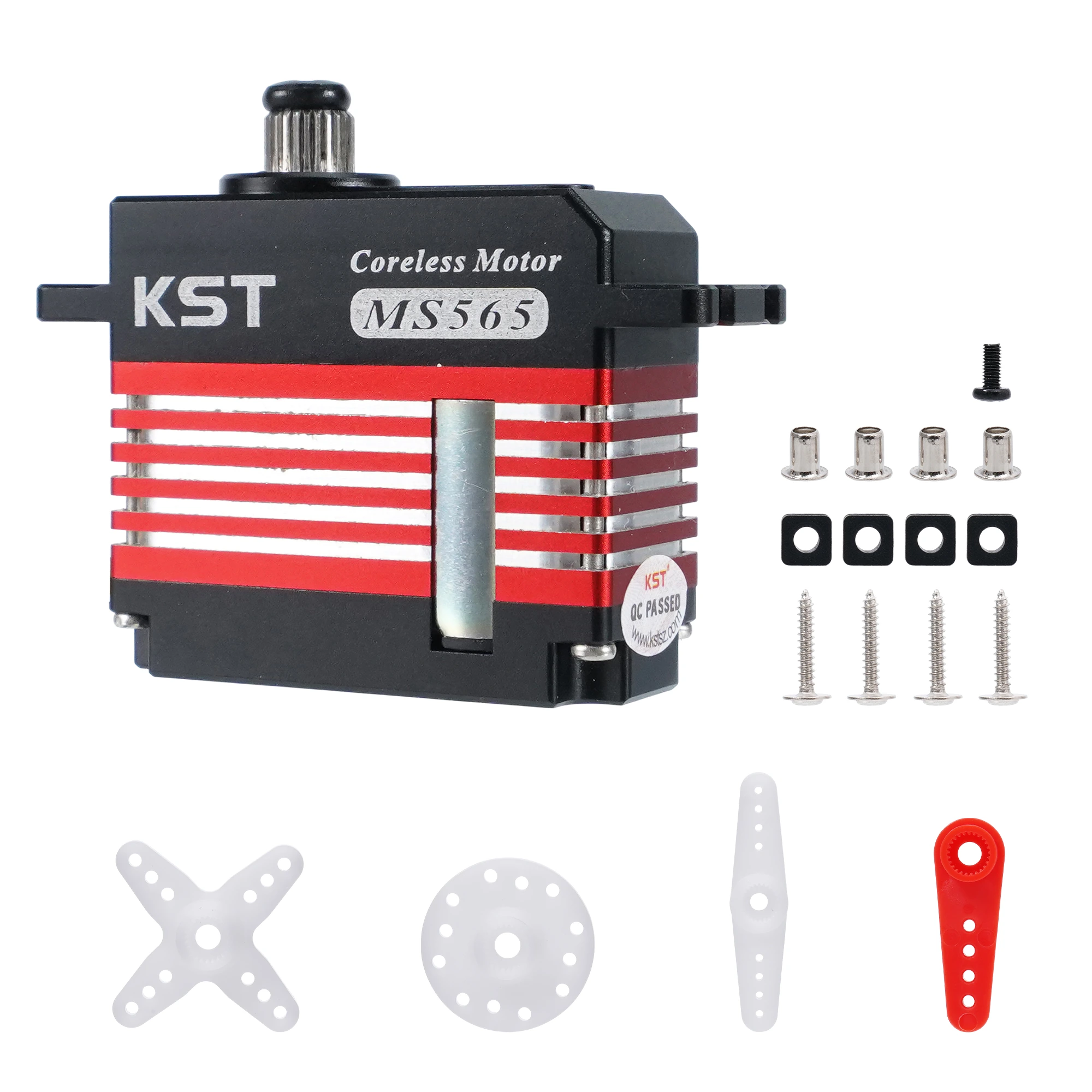

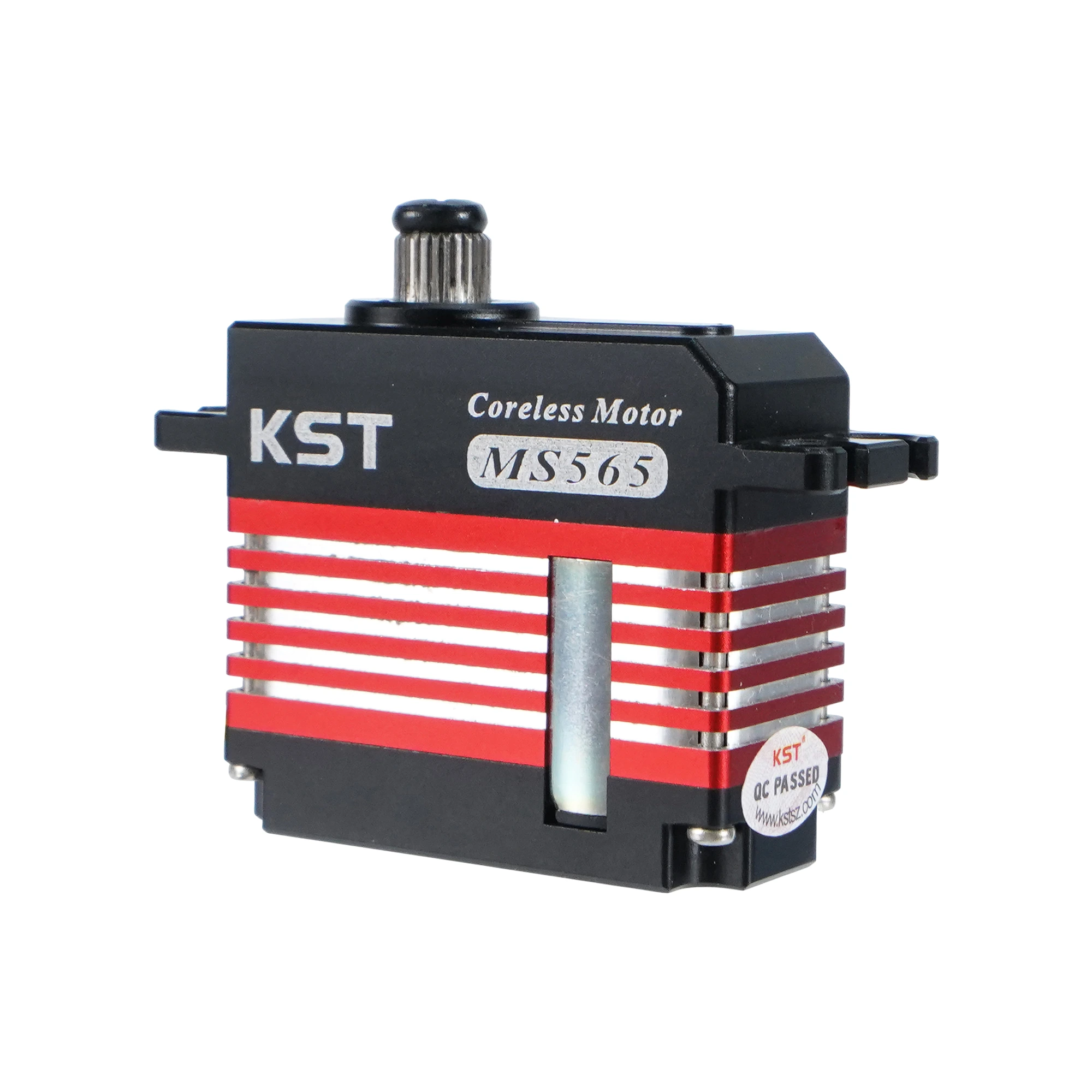

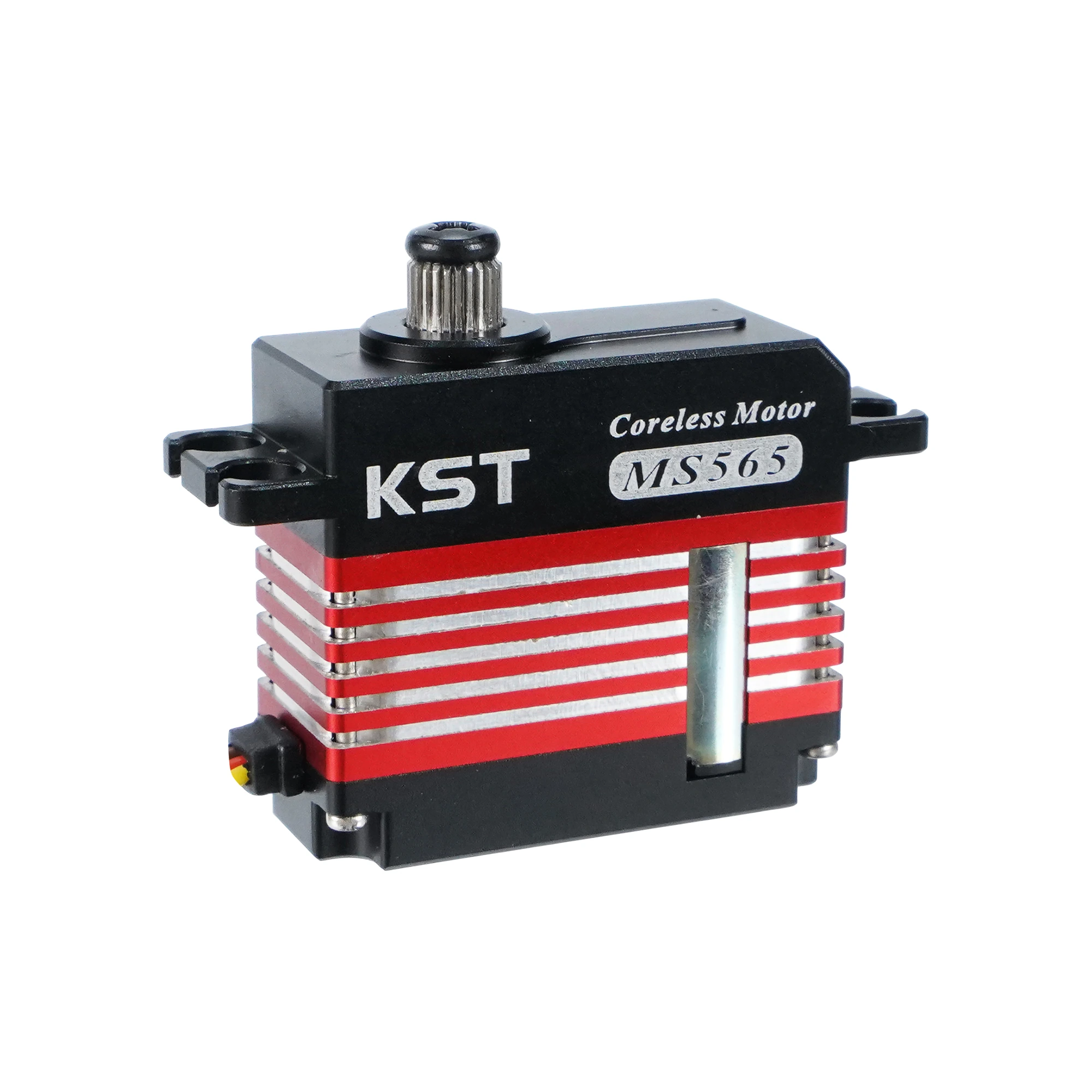

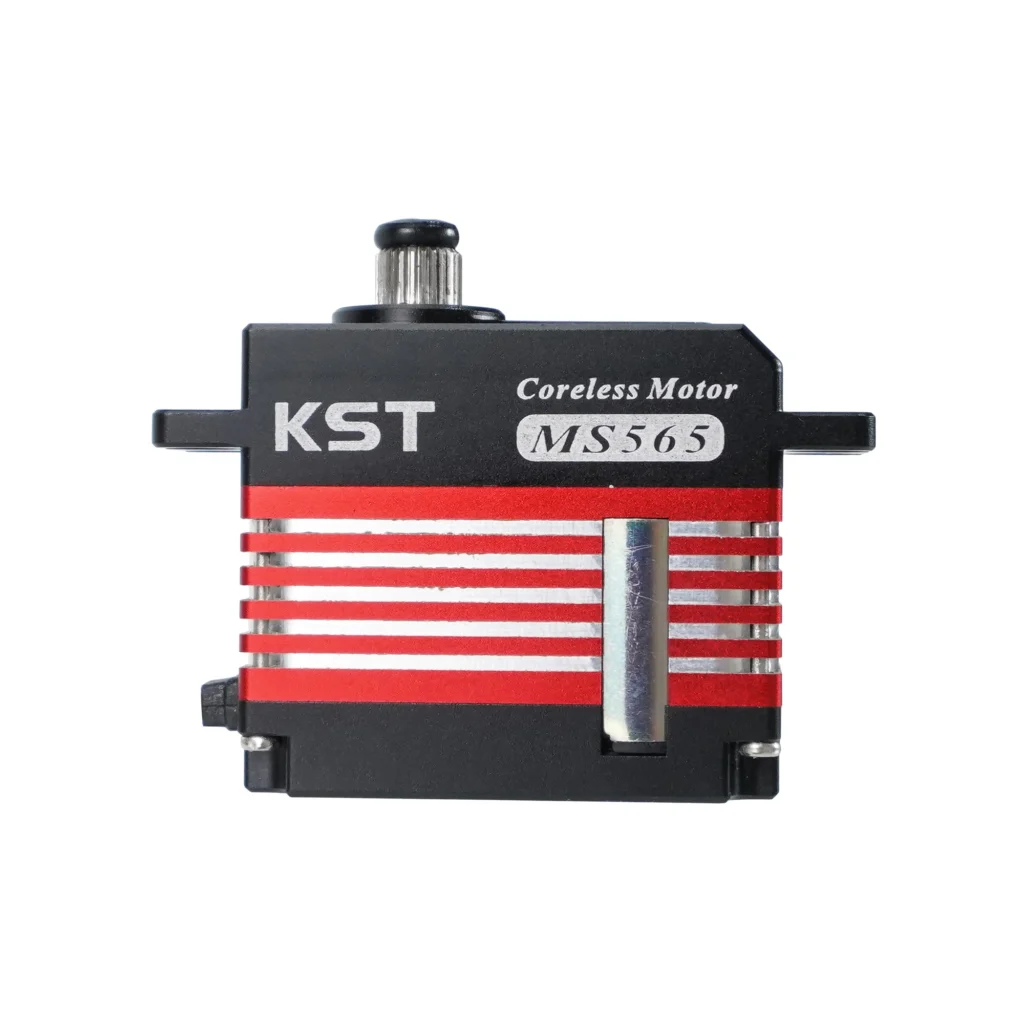

KST MS565 Digital Servo
$84.00
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST MS565 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC6.0V-8.4V DC9.0V-12.0V
- Torque: 4.2Kgf.cm@6.0V 5.5Kgf.cm@7.4V 6.5Kgf.cm@8.4V
- Speed: 0.05sec/ 60° @6.0V 0.04sec/ 60° @7.4V 0.035sec/ 60° @8.4V
- Motor: Coreless DC Motor
- Gear set: Hardened Steel
- Position sensor: Contactless
- Interface: PWM Command Interface
- Programmable: Programmable Yes
Technical Specifications
| Rated voltage | DC7.4V DC12.0V |
|---|---|
| Operating voltage | DC6.0V-8.4V DC9.0V-12.0V |
| Torque | 4.2Kgf.cm@6.0V 5.5Kgf.cm@7.4V 6.5Kgf.cm@8.4V |
| Speed | 0.05sec/ 60° @6.0V 0.04sec/ 60° @7.4V 0.035sec/ 60° @8.4V |
| Working frequency | 760us/560Hz |
| Operating temperature | -10℃……+65℃ |
| Soft start | Programmable |
| Programmable | Programmable Yes |
| Case material | Aluminum Alloy Brushless DC Motor Hardened Steel Contactless/Potentiometer |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Contactless |
| Dimensions | 35.5*15*32.5mm±0.2mm |
| Protocol / interface | PWM Command Interface |
