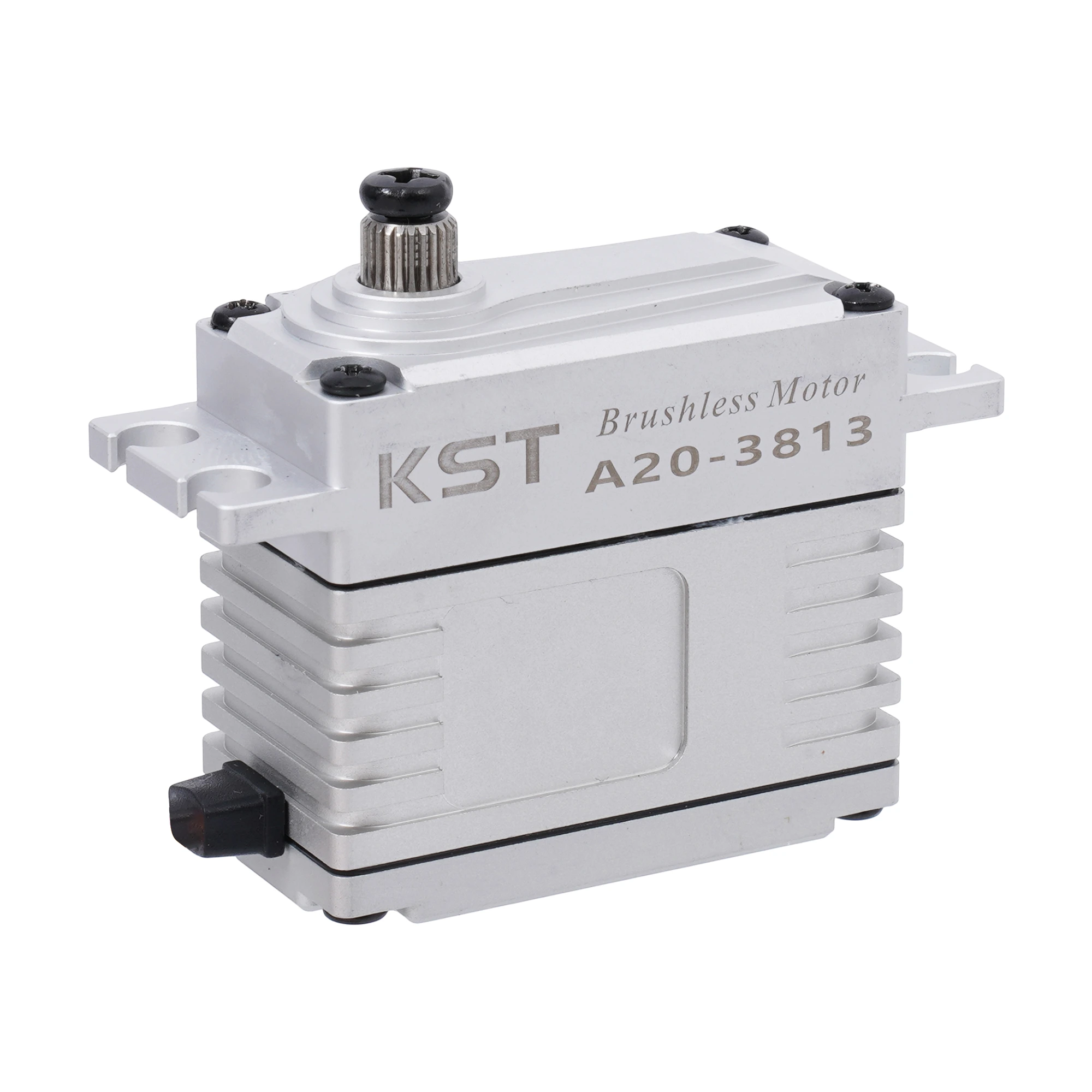

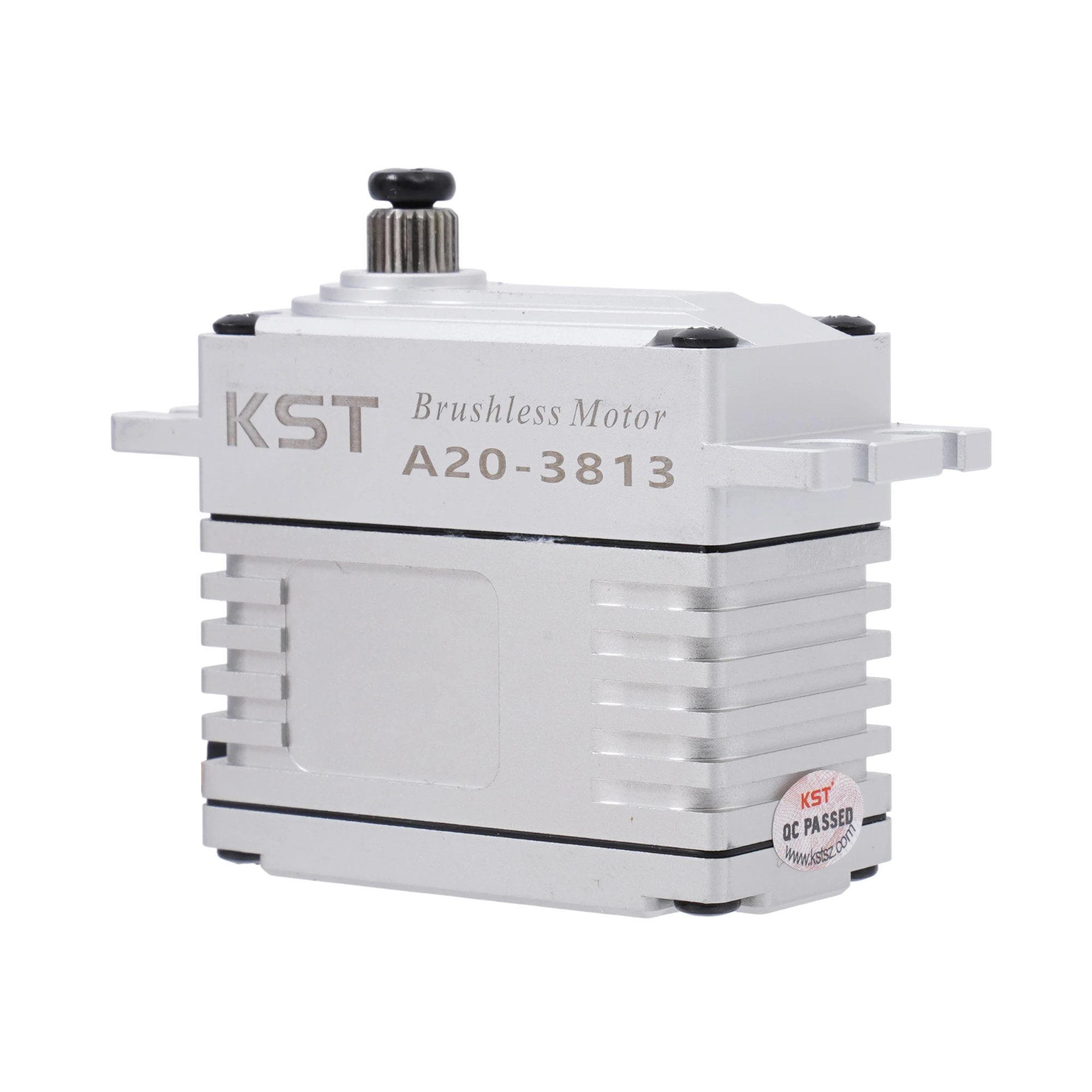

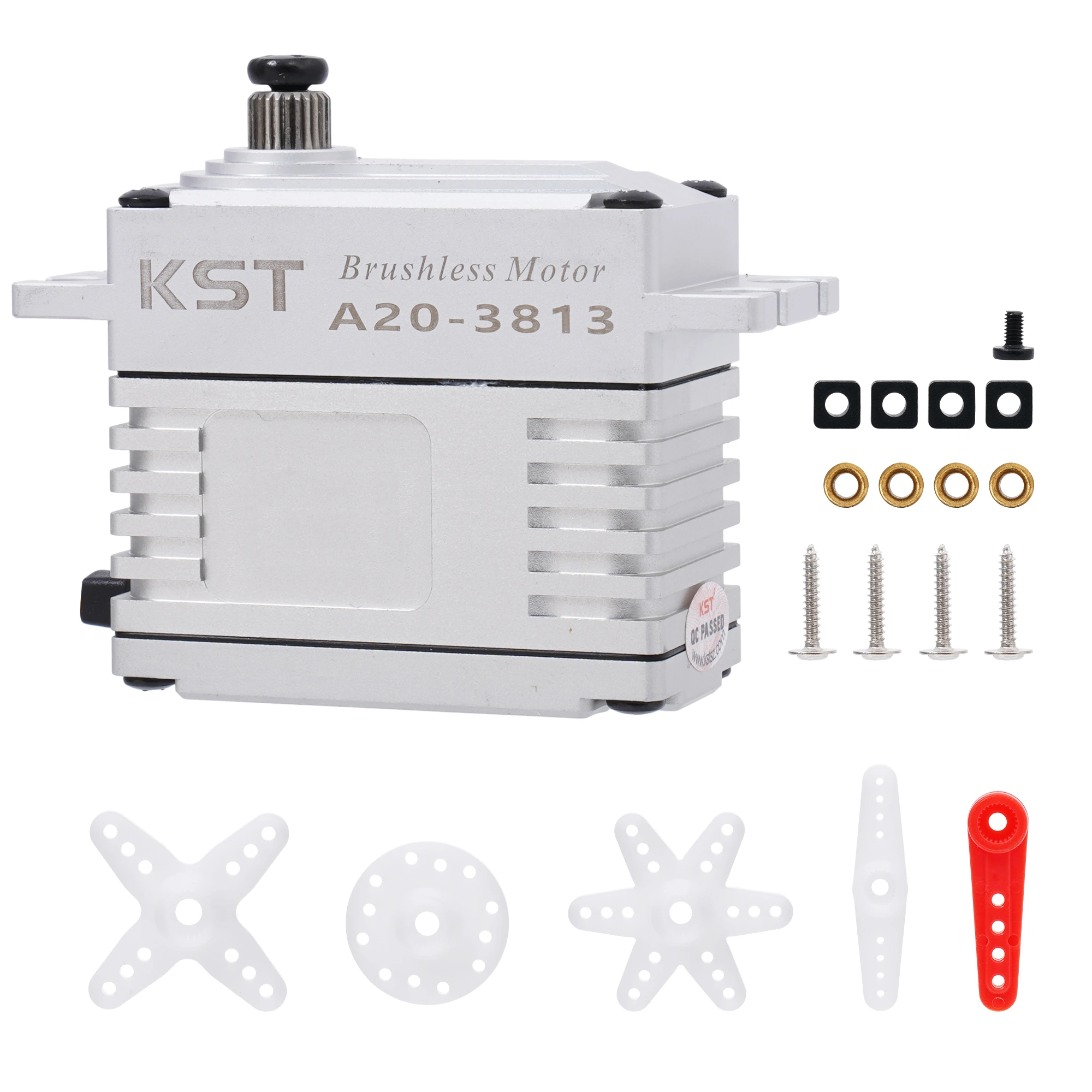

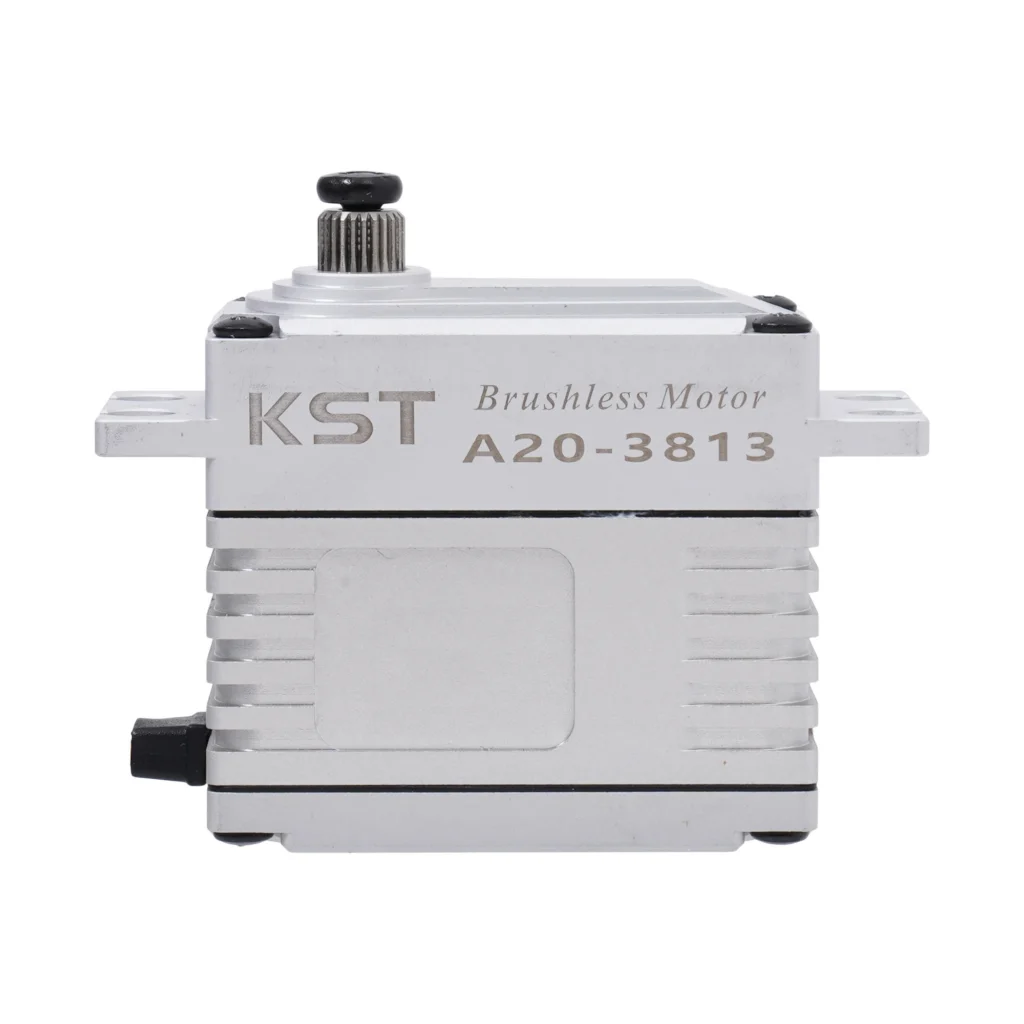

KST A20-3813 Digital Servo
$105.60
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST A20-3813 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC6.0V-8.4V
- Torque: 30Kgf.cm@6.0V 38Kgf.cm@7.4V 43Kgf.cm@8.4V
- Speed: 0.18sec/ 60° @6.0V@25℃ 0.13sec/ 60° @7.4V@25℃ 0.12sec/ 60° @8.4V@25℃
- Motor: Brushless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
Technical Specifications
| Rated voltage | DC7.4V |
|---|---|
| Operating voltage | DC6.0V-8.4V |
| Torque | 30Kgf.cm@6.0V 38Kgf.cm@7.4V 43Kgf.cm@8.4V |
| Speed | 0.18sec/ 60° @6.0V@25℃ 0.13sec/ 60° @7.4V@25℃ 0.12sec/ 60° @8.4V@25℃ |
| Working frequency | 1520us/ 333Hz |
| Travel | ±50° =100° Total |
| Operating temperature | -20℃……+65℃ |
| Case material | Aluminum Alloy |
| Motor type | Brushless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 40.5*20*38mm±0.2mm |
| Weight | 72g±10% 28g |
| Protocol / interface | PWM Command Interface |
