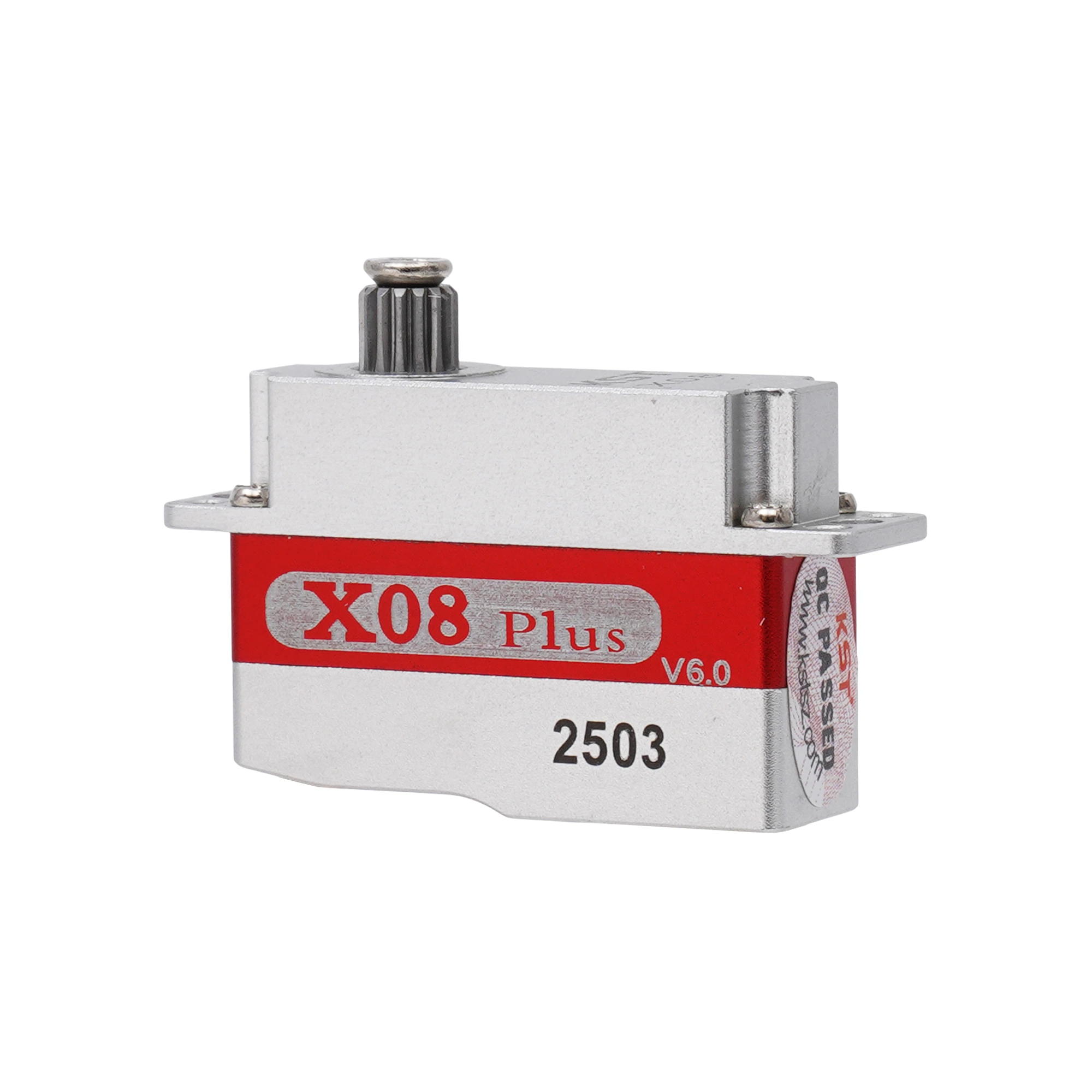

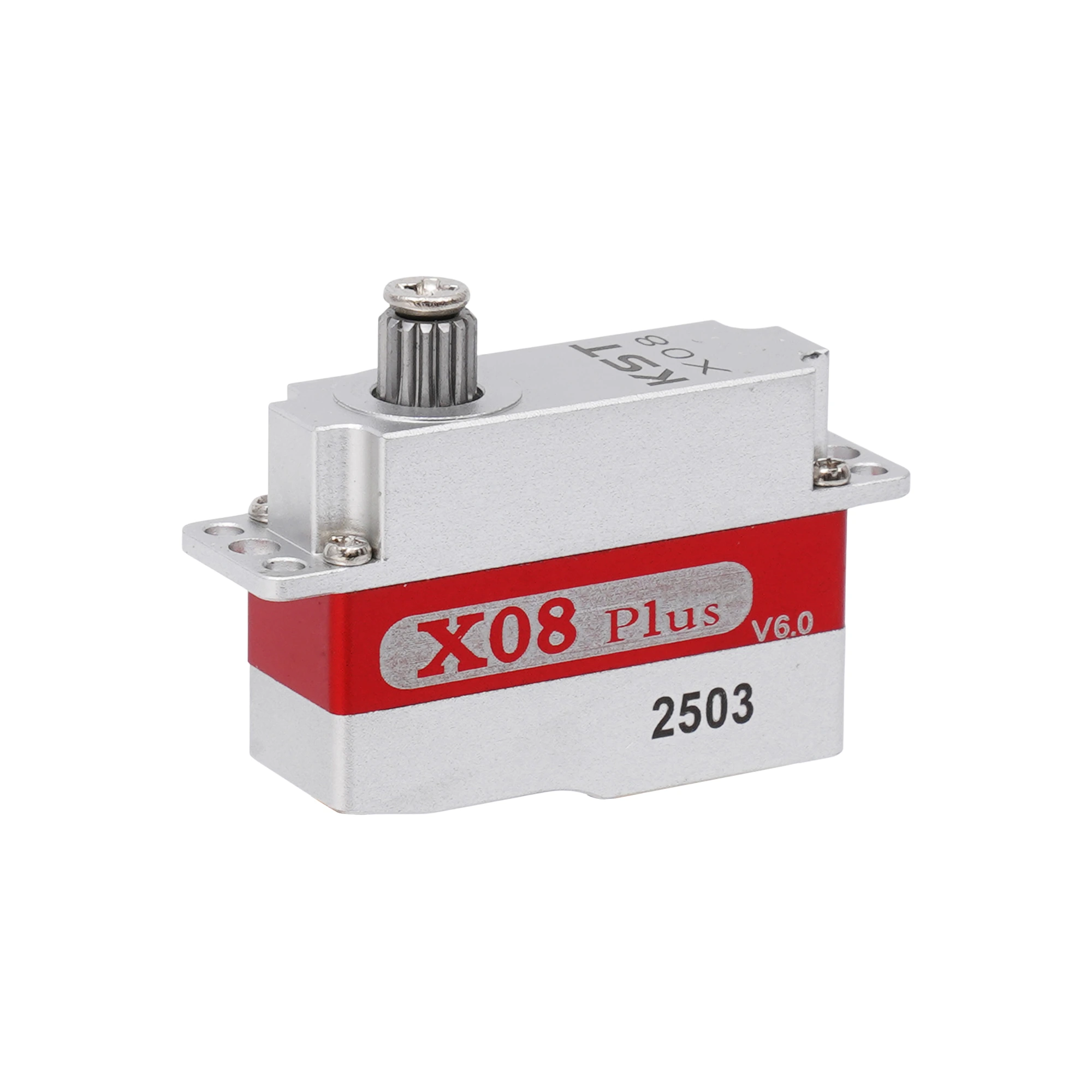

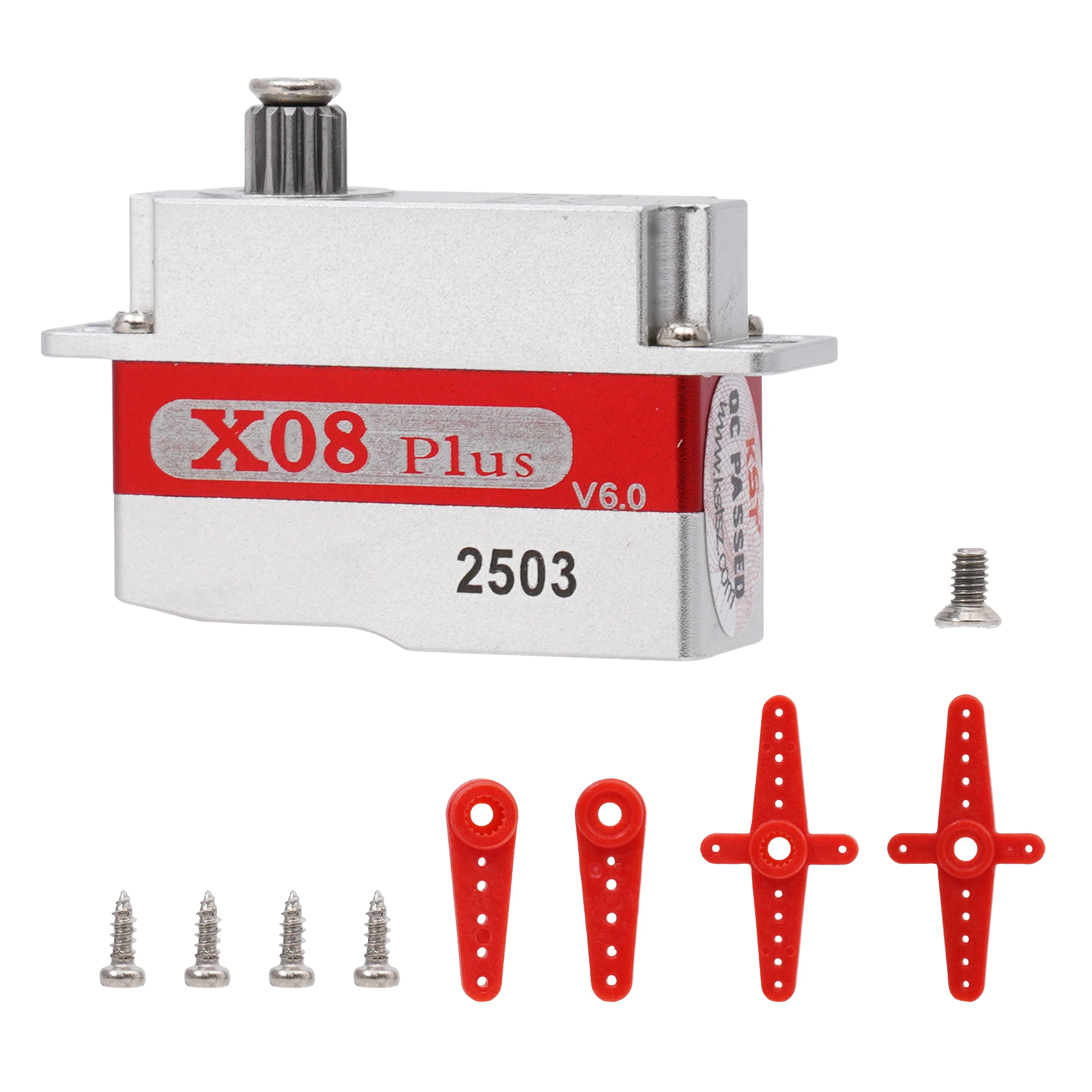

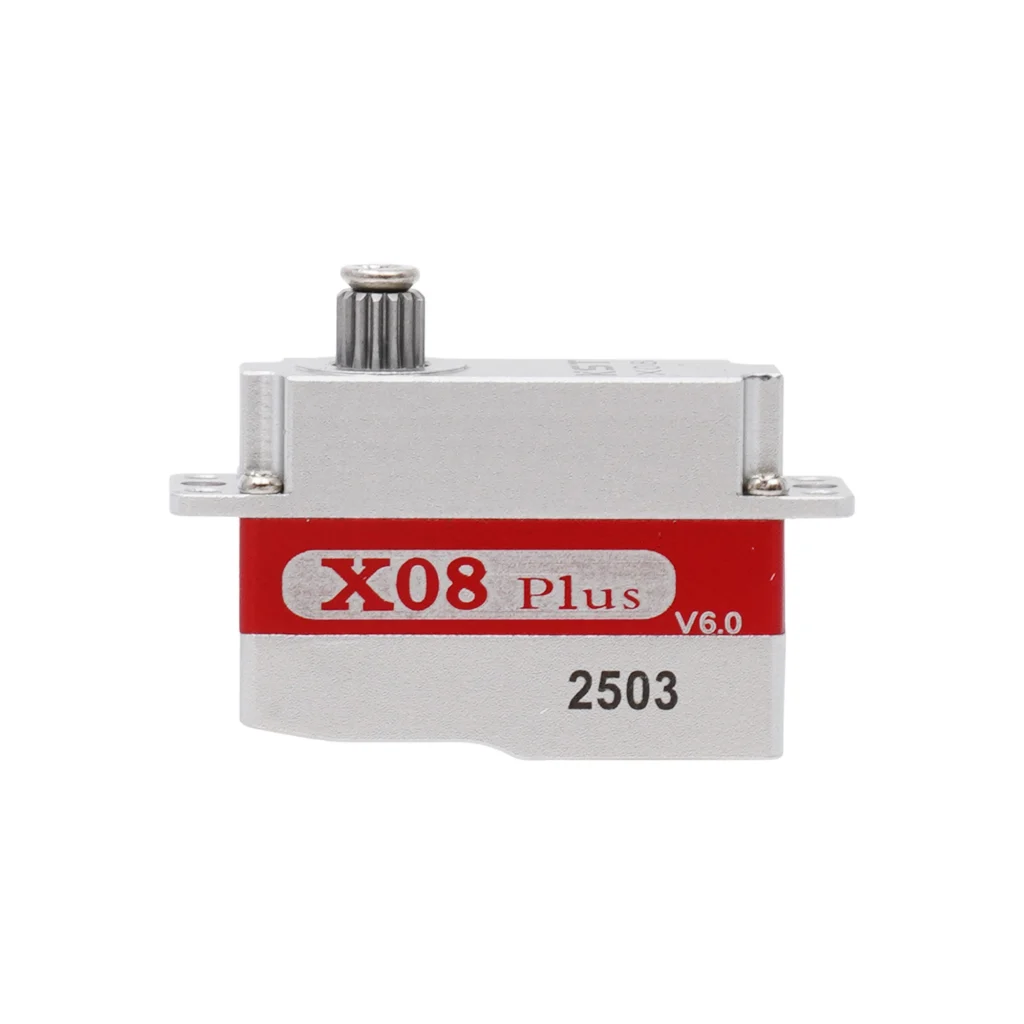

KST X08 Plus Digital Servo
$45.60
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST X08 Plus Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC3.8V-8.4V
- Torque: 2.4kgf.cm@3.8V 3.85Kgf.cm@6.0V 4.84Kgf.cm@7.4V 5.3Kgf.cm@8.4V
- Speed: 0.18sec/ 60° @3.8V 0.15sec/ 60° @6.0V 0.12sec/ 60° @7.4V 0.09sec/ 60° @8.4V
- Motor: Coreless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Programmable Yes
Technical Specifications
| Rated voltage | DC7.4V |
|---|---|
| Operating voltage | DC3.8V-8.4V |
| Torque | 2.4kgf.cm@3.8V 3.85Kgf.cm@6.0V 4.84Kgf.cm@7.4V 5.3Kgf.cm@8.4V |
| Speed | 0.18sec/ 60° @3.8V 0.15sec/ 60° @6.0V 0.12sec/ 60° @7.4V 0.09sec/ 60° @8.4V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±60° = 120° Total |
| Operating temperature | -10℃……+65℃ |
| Soft start | Programmable |
| Programmable | Programmable Yes |
| Case material | Aluminum Alloy |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 23.5*8*16.8mm±0.2mm |
| Weight | 9g±10% |
| Protocol / interface | PWM Command Interface |
