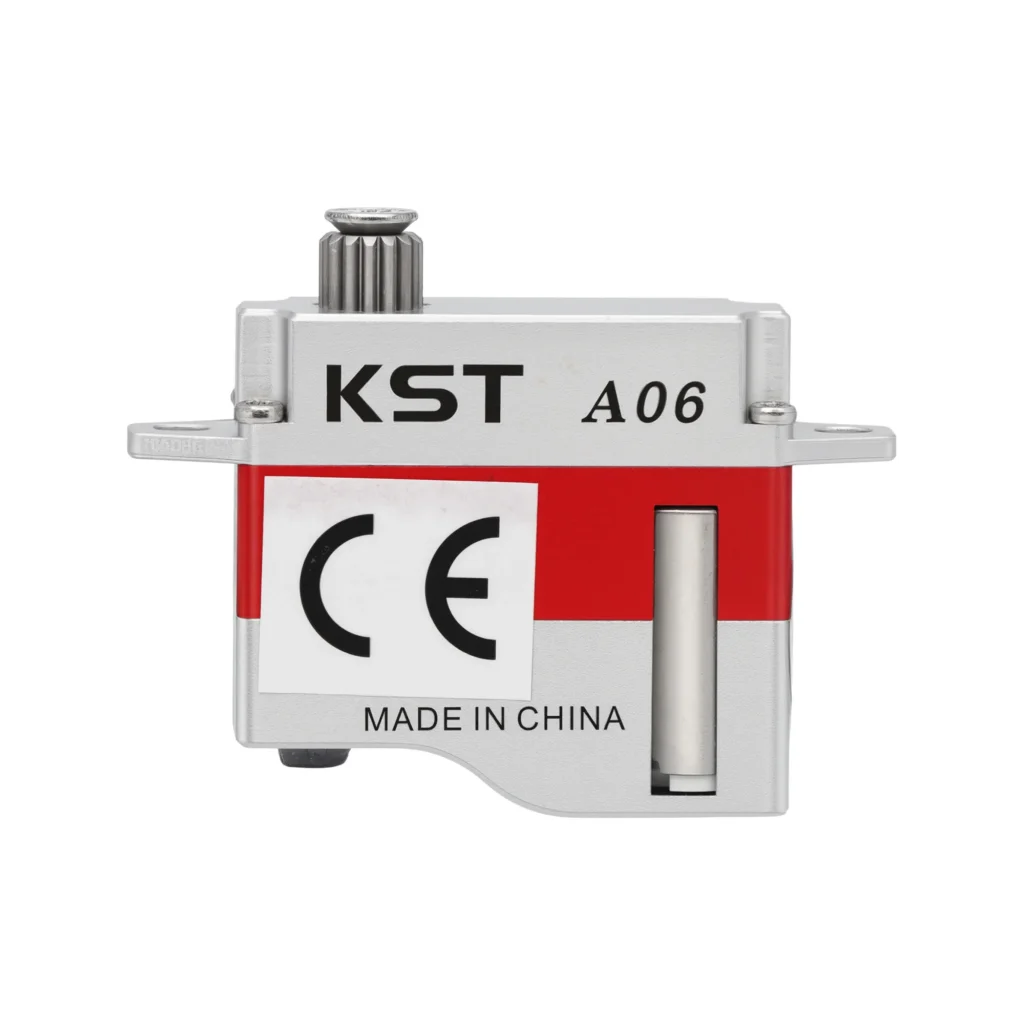

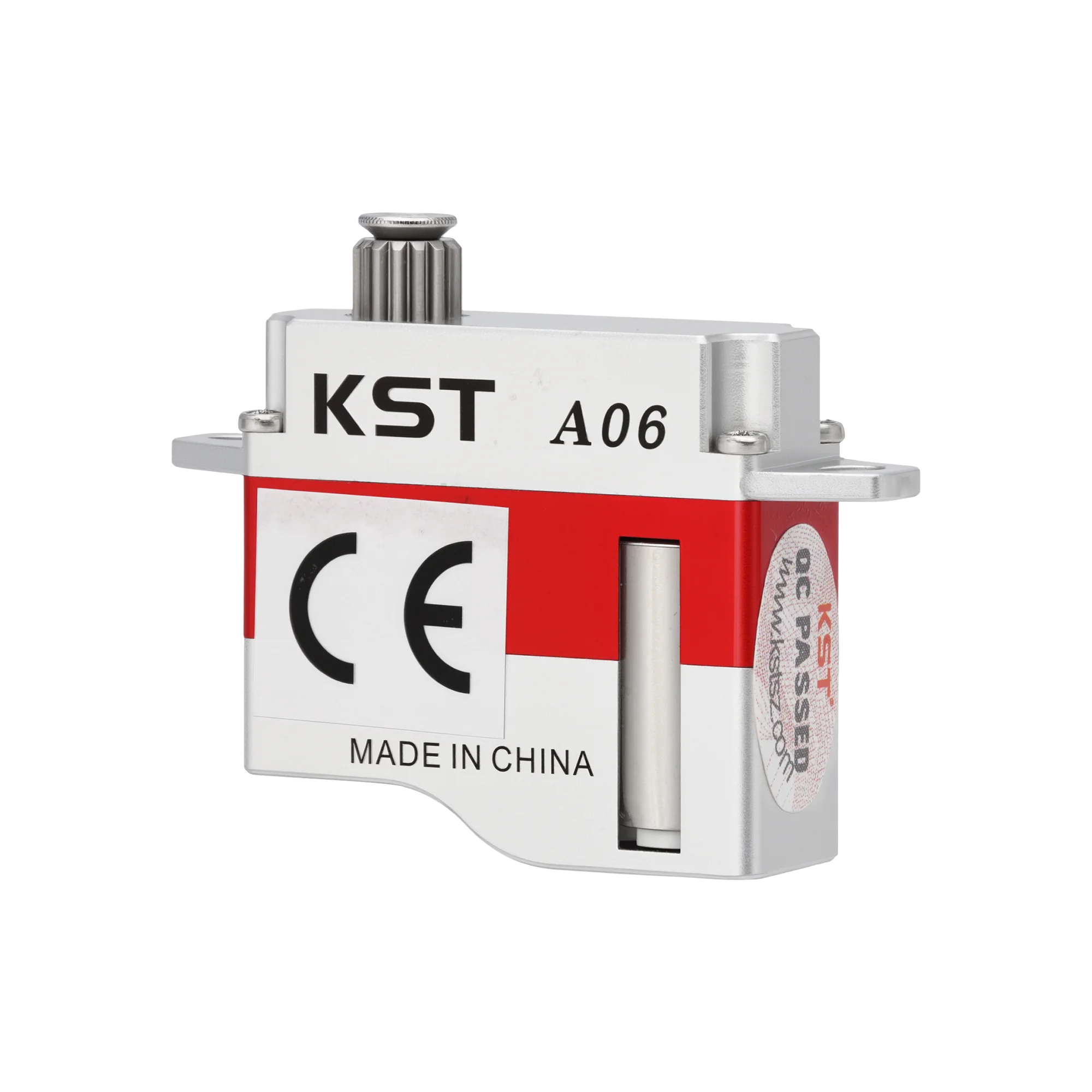

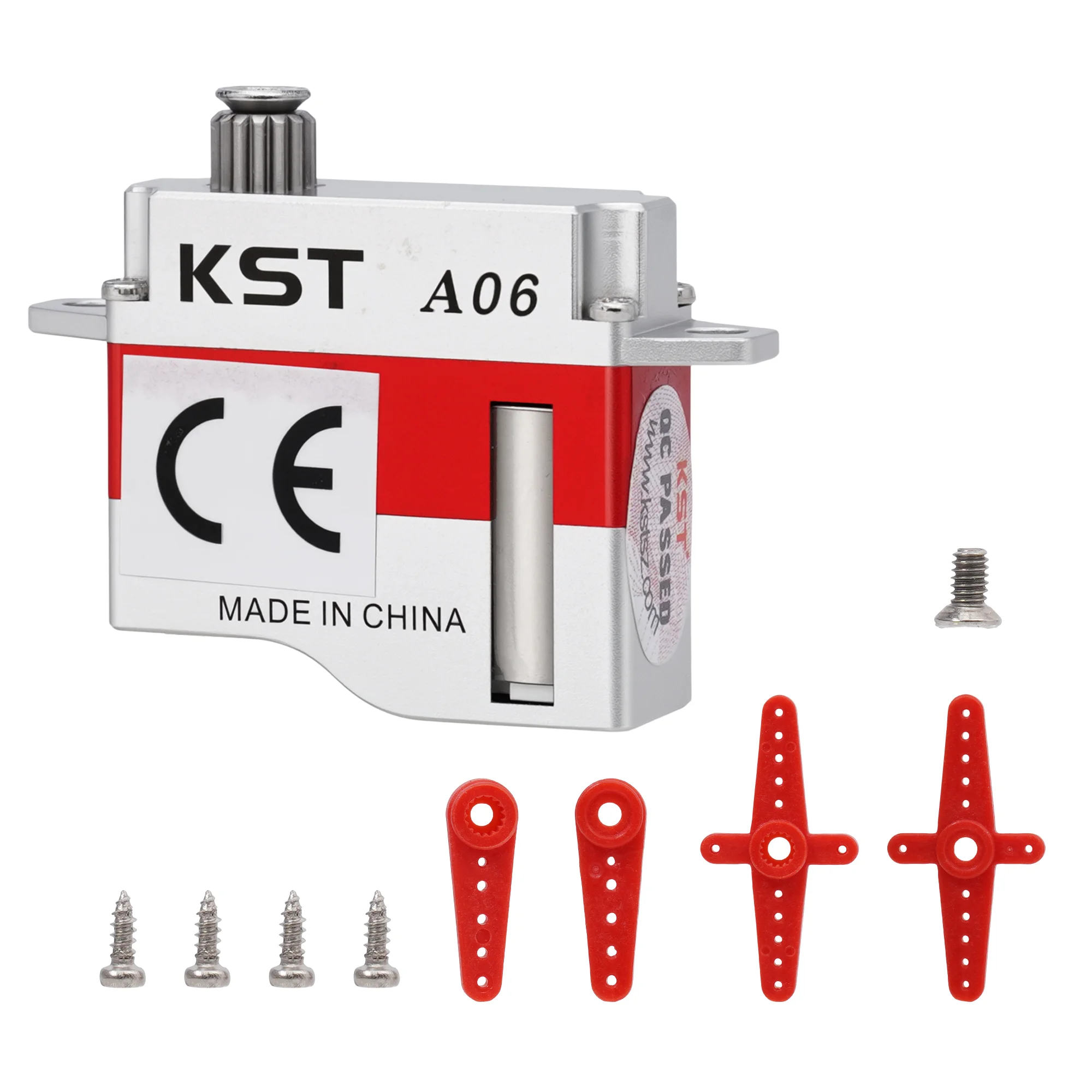

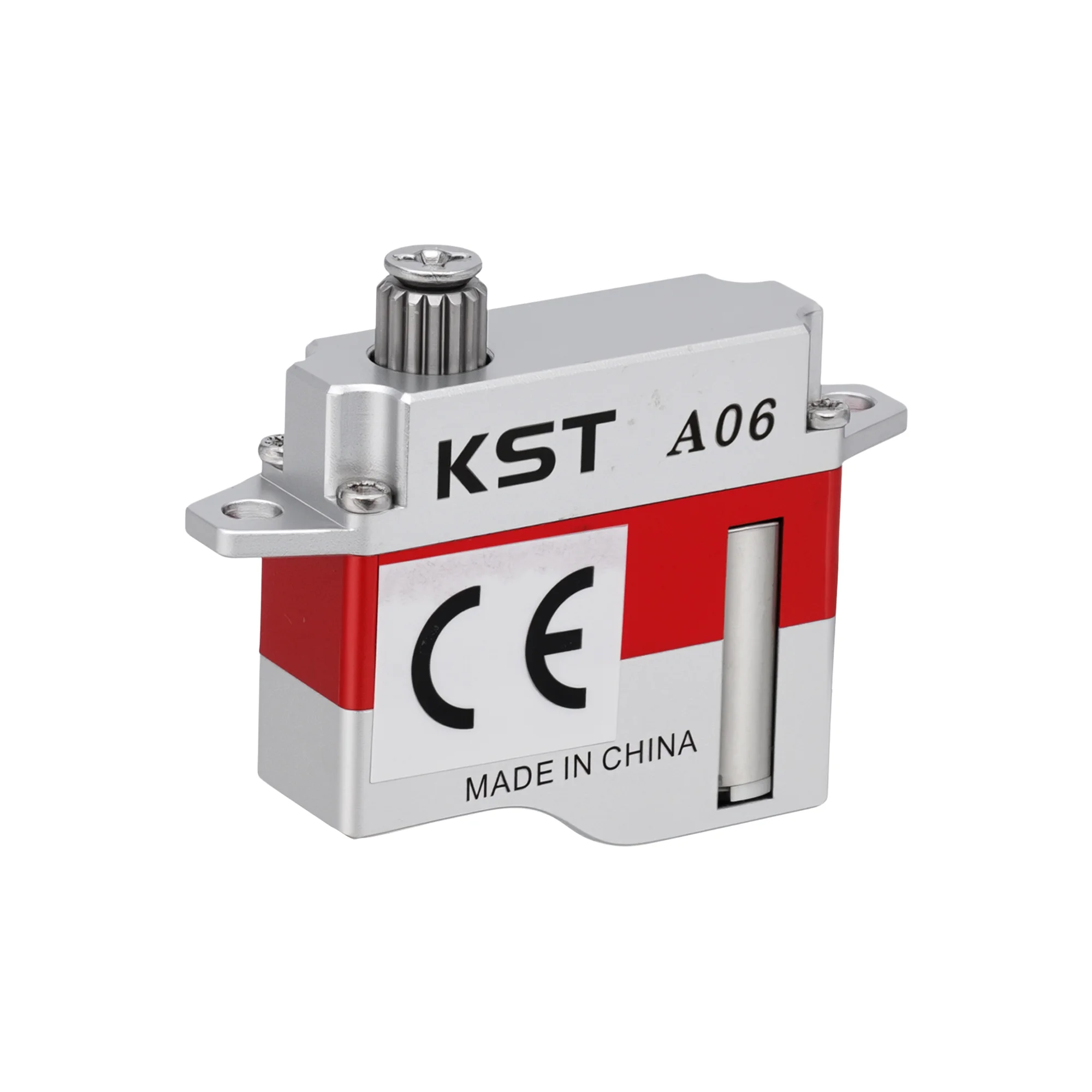

KST A06 Digital Servo
$49.20
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST A06 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC3.5V-4.2V
- Torque: 1.1Kgf.cm@3.5V 1.4Kgf.cm@4.2V
- Speed: 0.14sec/ 60° @3.5V 0.11sec/ 60° @4.2V
- Motor: Coreless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
Technical Specifications
| Rated voltage | DC4.2V |
|---|---|
| Operating voltage | DC3.5V-4.2V |
| Torque | 1.1Kgf.cm@3.5V 1.4Kgf.cm@4.2V |
| Speed | 0.14sec/ 60° @3.5V 0.11sec/ 60° @4.2V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±60° = 120° Total |
| Operating temperature | -10℃……+65℃ |
| Case material | Aluminum Alloy Brushless DC Motor Hardened Steel Contactless/Potentiometer |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 20.5*7*18.8mm±0.2mm |
| Weight | 7g±10% |
| Protocol / interface | PWM Command Interface |
