KST X06N Digital Servo

$49.20

* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.

SKU X06N Categories KST – UAV & Robotics Servos, Servos, X Series Tags Digital Servo, KST, Metal Gear Servo, Programmable Servo, PWM, Robotics Servo, UAV Servo Brand: KST

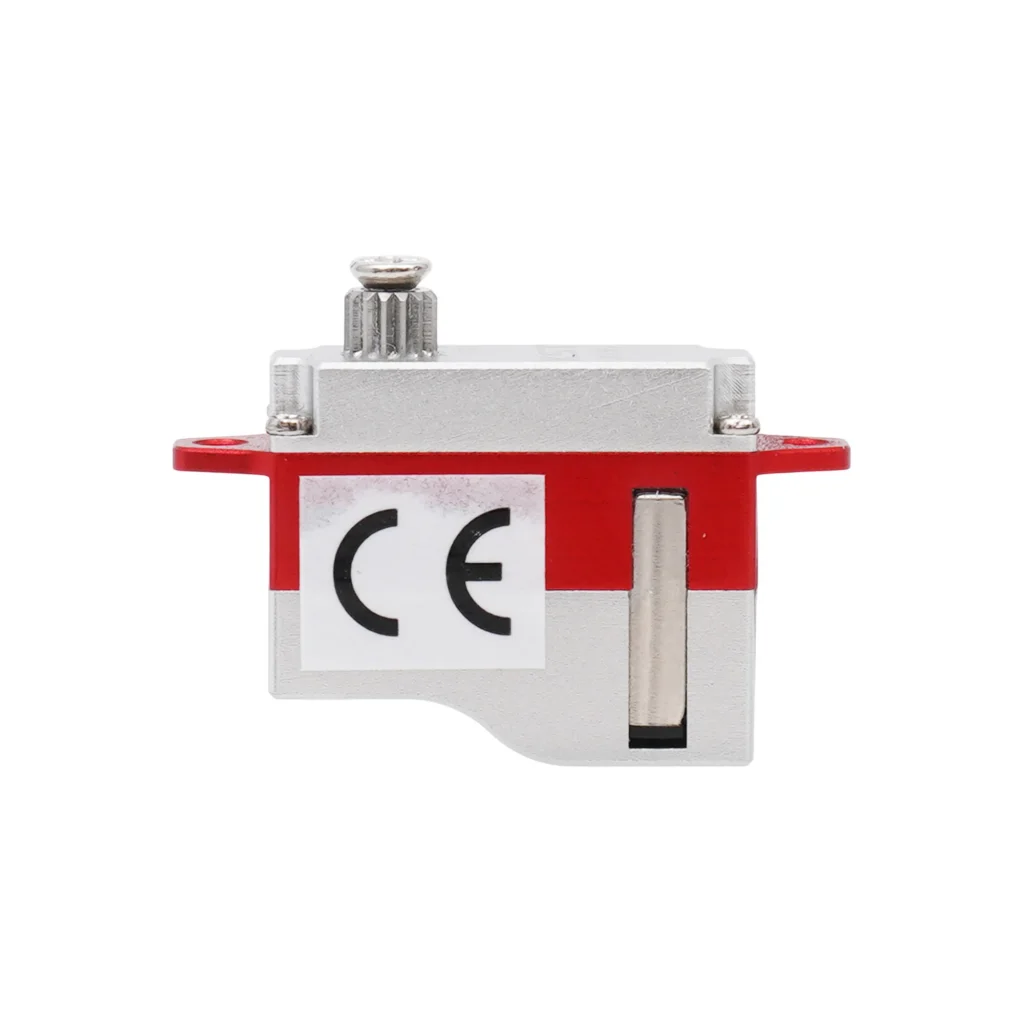

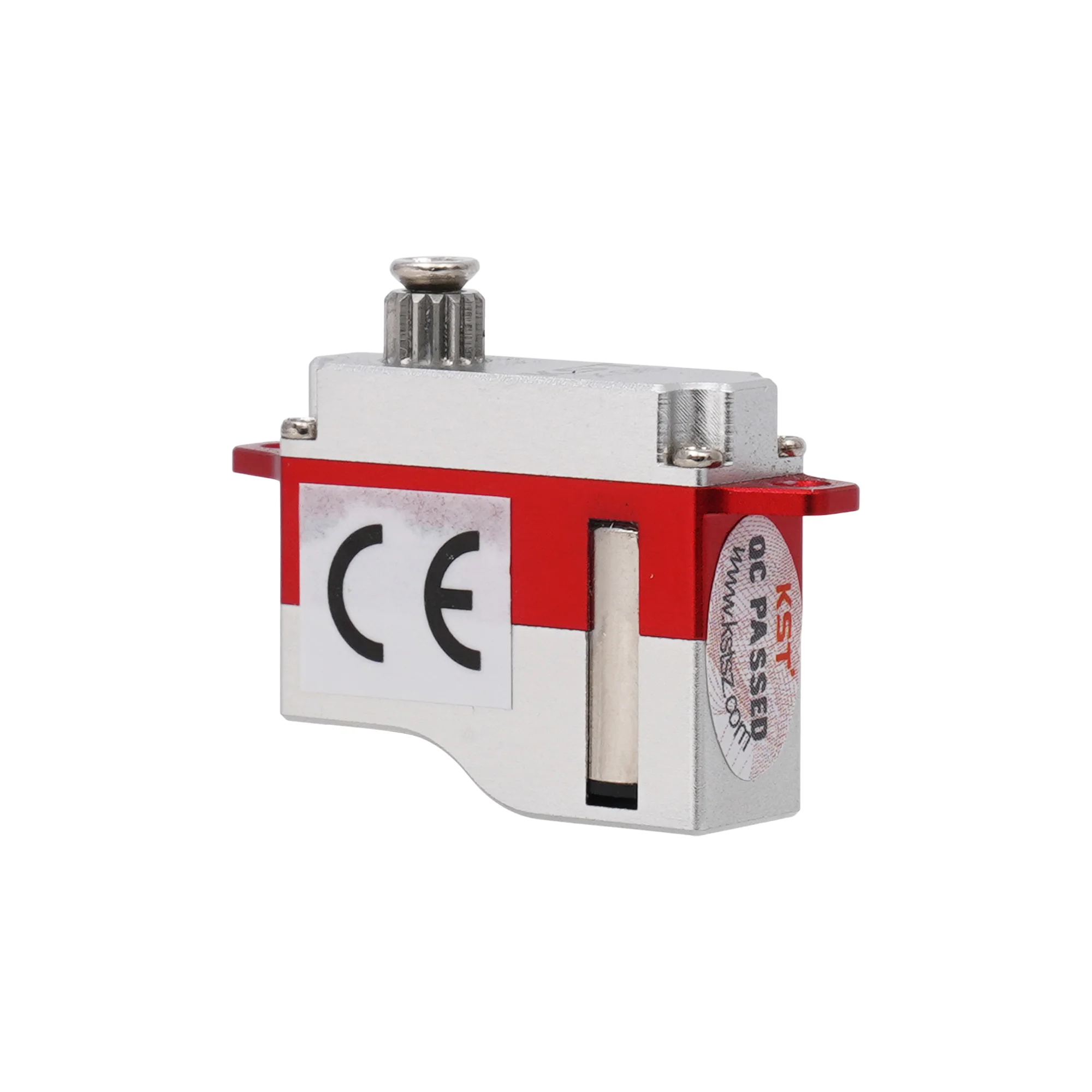

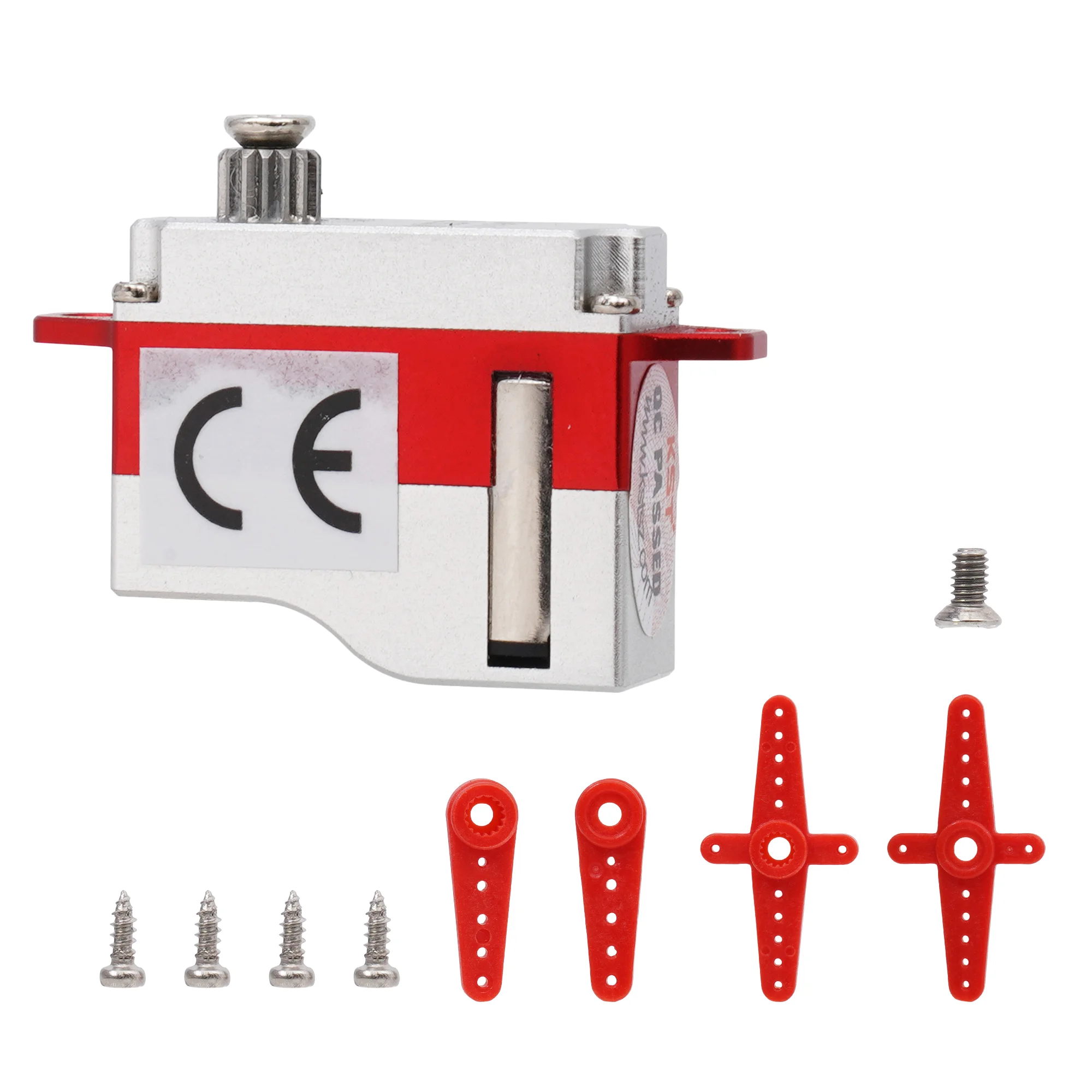

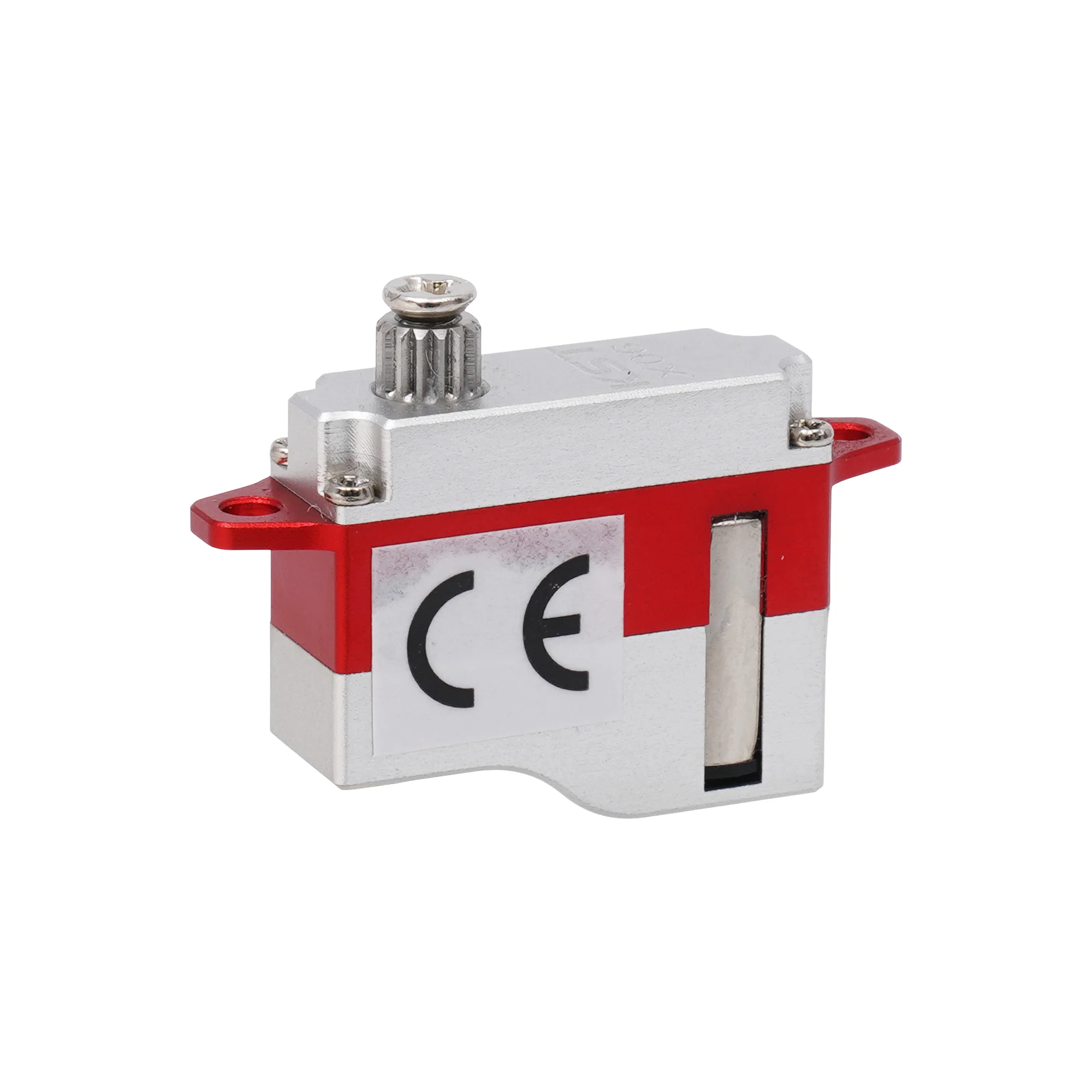

KST X06N is a compact programmable digital servo for engineering integration. The model number, manufacturer-confirmed photo set, official datasheet and approved EUR site price were matched directly. The photo folder is named X06 V6.0, but KST confirmed that this is the correct X06N image set.

Key Features

3.8–8.4 V operating range
Up to 1.8 kgf·cm stall torque at 8.4 V
Speed down to 0.07 sec/60° at 8.4 V
Programmable soft start and travel
Coreless DC motor
Hardened-steel gears
Aluminum-alloy case
15T, 4 mm output spline

Technical Specifications

Operating voltage	DC 3.8–8.4 V (rated 6.0 V)
Stall torque	0.8 kgf·cm @ 3.8 V; 1.5 kgf·cm @ 6.0 V; 1.8 kgf·cm @ 8.4 V
Operating speed	0.12 sec/60° @ 3.8 V; 0.08 sec/60° @ 6.0 V; 0.07 sec/60° @ 8.4 V
Stall current	0.58 A @ 6.0 V
Rated torque / current / speed	4 N·cm / 0.22 A / 0.20 sec/60° @ 6.0 V
Control signal	PWM, 1520 µs; datasheet frequency value: 20 kHz
Default travel	±60° (120°)
Operating temperature	−10 to +65 °C
Programmability	Programmable soft start and travel
Case	Aluminum alloy
Motor	Coreless DC
Gears	Hardened steel
Position sensor	Potentiometer
Bearings	1 ball bearing
Output spline	15T, 4 mm
Dimensions	20 × 7 × 16.6 mm (±0.2 mm)
Weight	6 g (±10%)
Logic levels	HIGH 3.3–5.0 V; LOW 0–1.5 V
Pulse range	900–2100 µs
Reference positions	1000 / 1500 / 2000 µs = −60° / 0° / +60°

Applications

Compact UAV and robotics motion-control assemblies where the confirmed voltage, torque, speed, travel and mechanical envelope meet the system design. Final integration suitability must be validated by the system designer.
