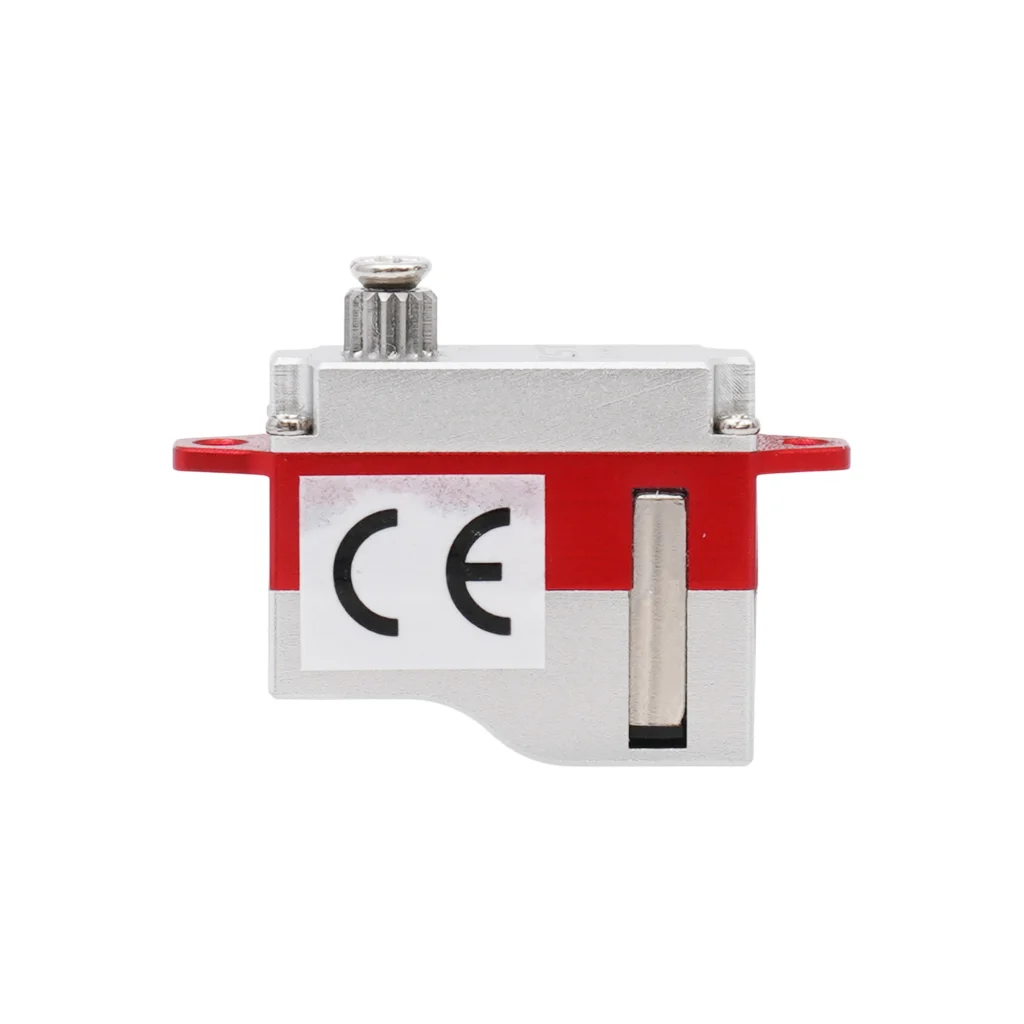

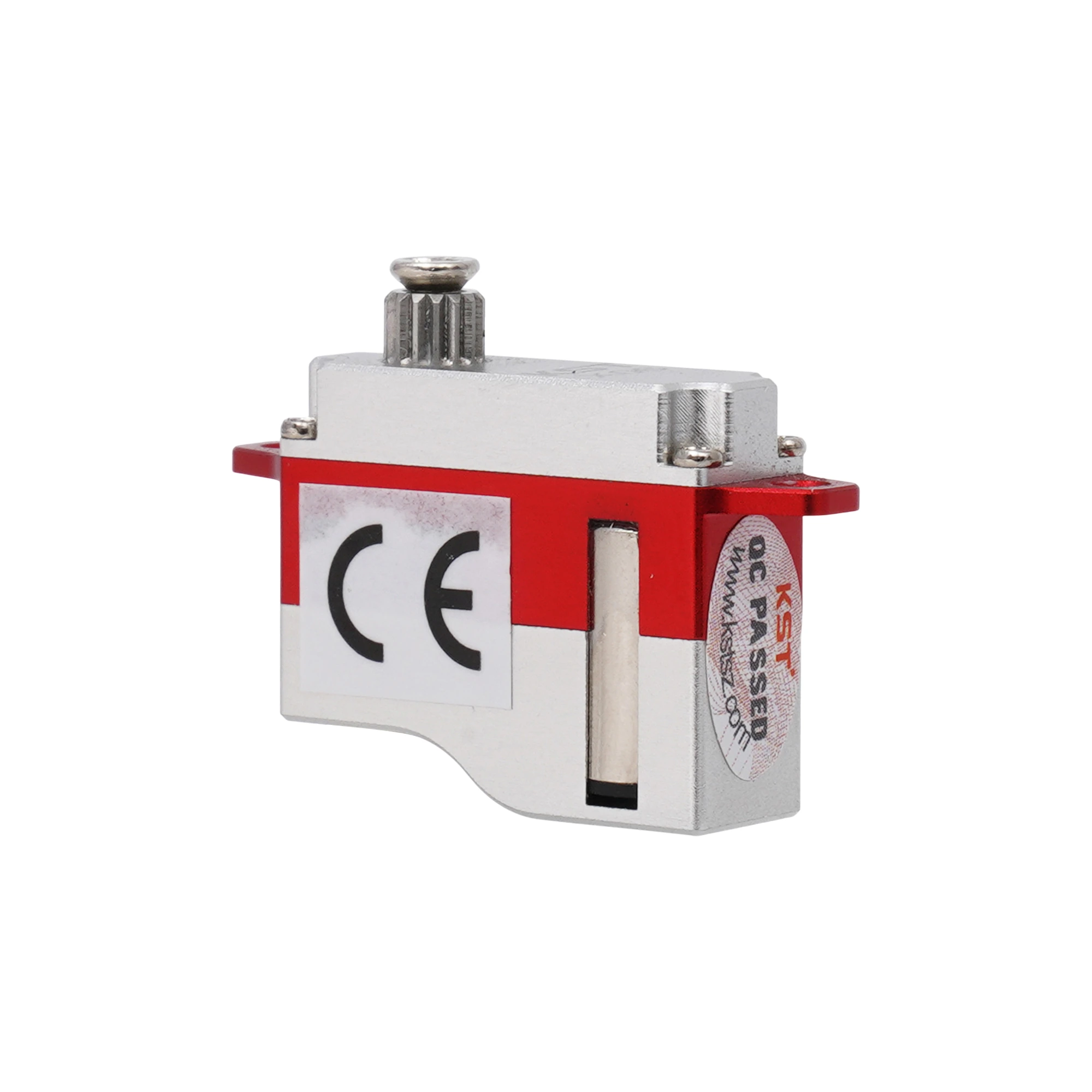

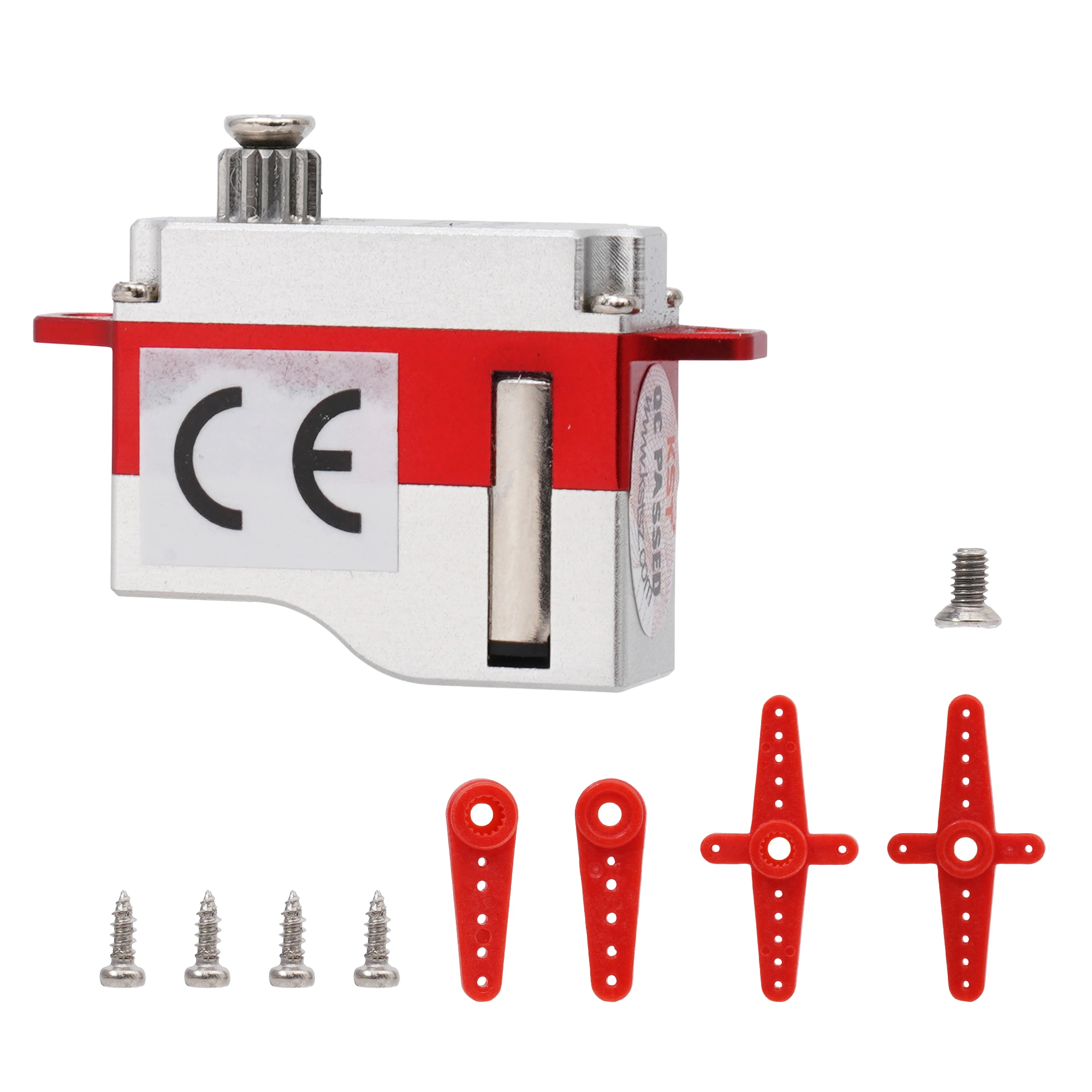

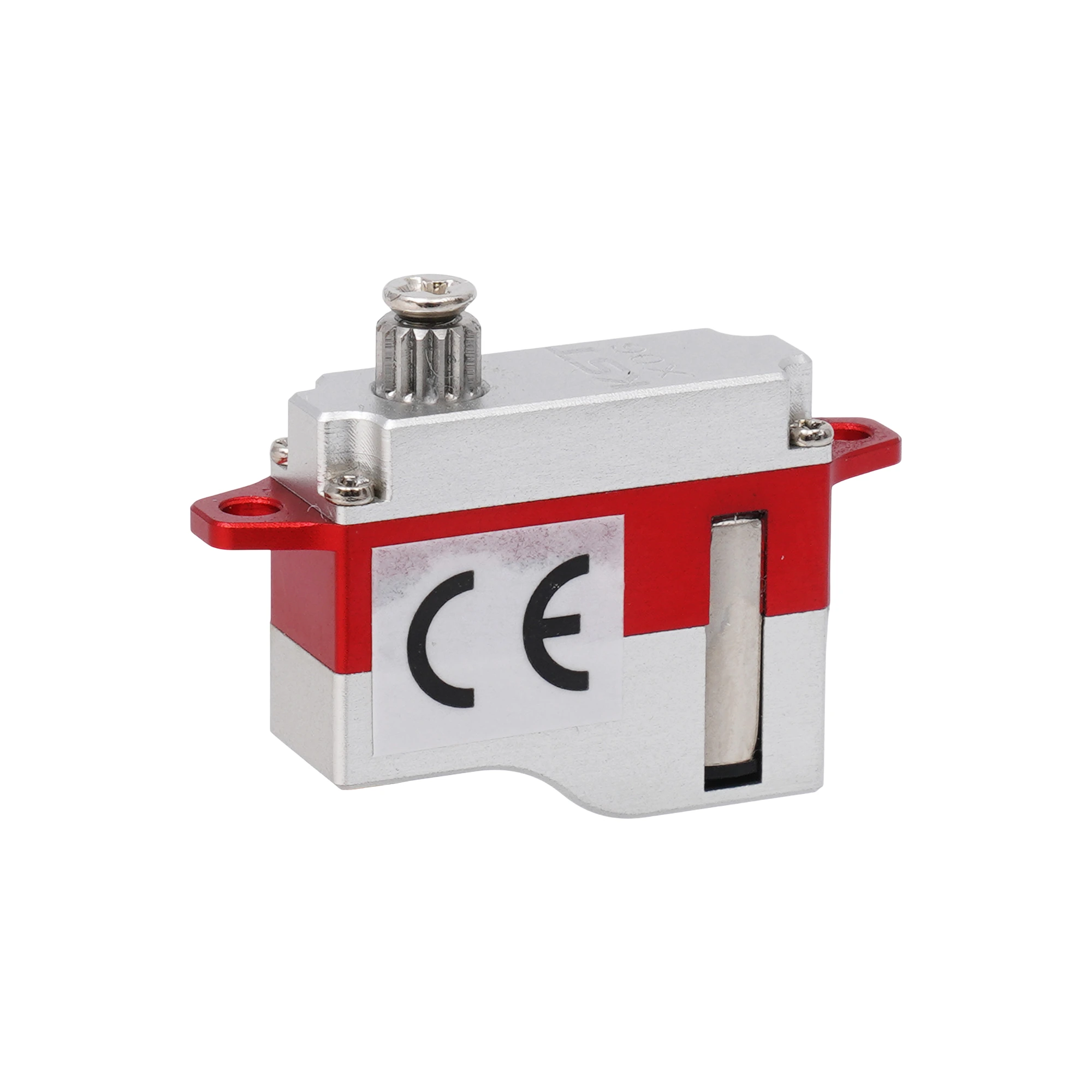

KST X06 Digital Servo
$49.20
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST X06 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC3.8V-8.4V
- Torque: 0.80Kgf.cm@3.8V 1.50Kgf.cm@6.0V 1.80Kgf.cm@8.4V
- Speed: 0.12sec/ 60° @3.8V 0.08sec/ 60° @6.0V 0.07sec/ 60° @8.4V
- Motor: Coreless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Yes
Technical Specifications
| Rated voltage | DC6.0V |
|---|---|
| Operating voltage | DC3.8V-8.4V |
| Torque | 0.80Kgf.cm@3.8V 1.50Kgf.cm@6.0V 1.80Kgf.cm@8.4V |
| Speed | 0.12sec/ 60° @3.8V 0.08sec/ 60° @6.0V 0.07sec/ 60° @8.4V |
| Working frequency | 1520us/ 20KHz |
| Travel | ±60° = 120° Total |
| Operating temperature | -10℃……+65℃ |
| Soft start | Yes |
| Programmable | Yes |
| Case material | Aluminum Alloy |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 1BB |
| Dimensions | 20*7*16.6mm±0.2mm |
| Weight | 6g±10% |
| Protocol / interface | PWM Command Interface |
