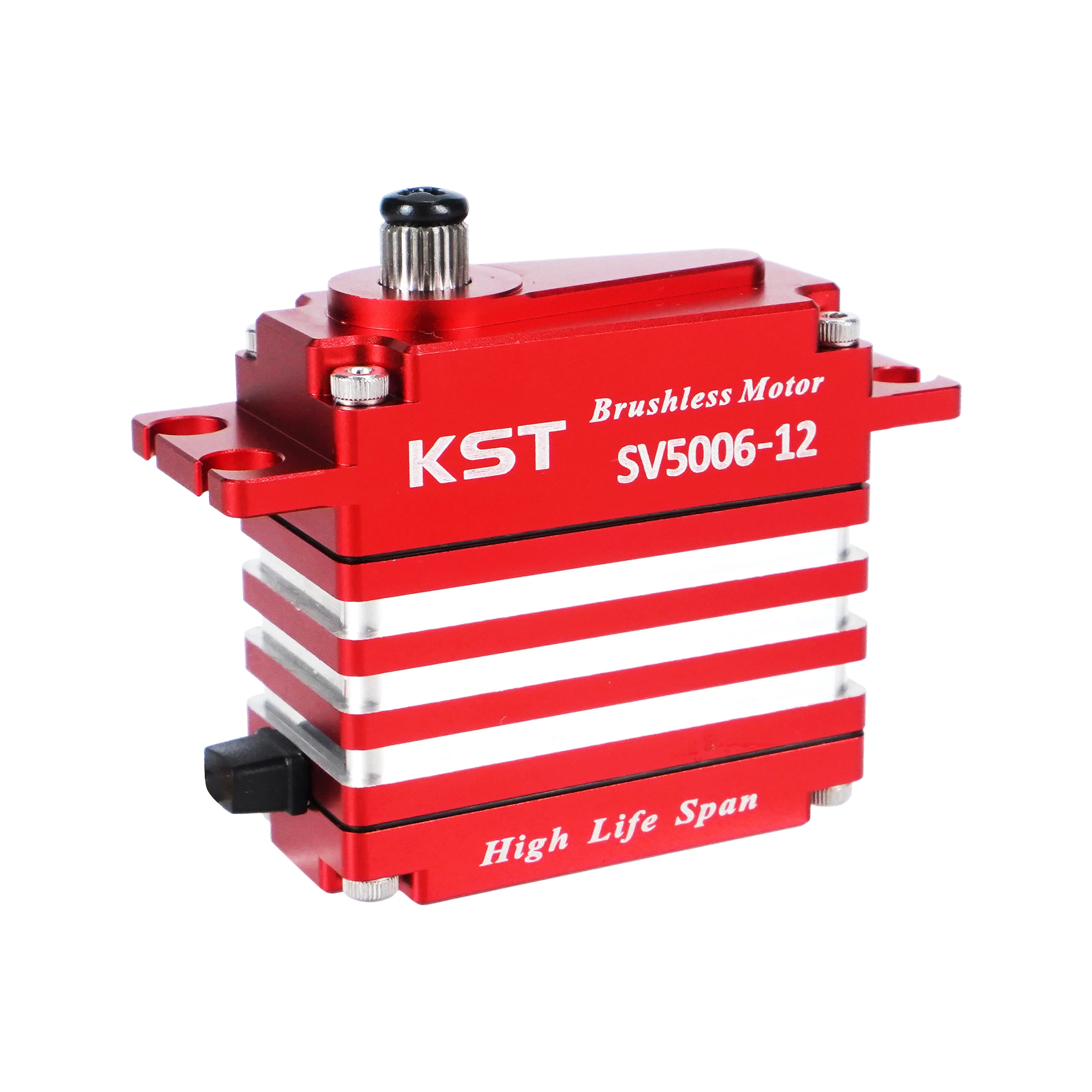

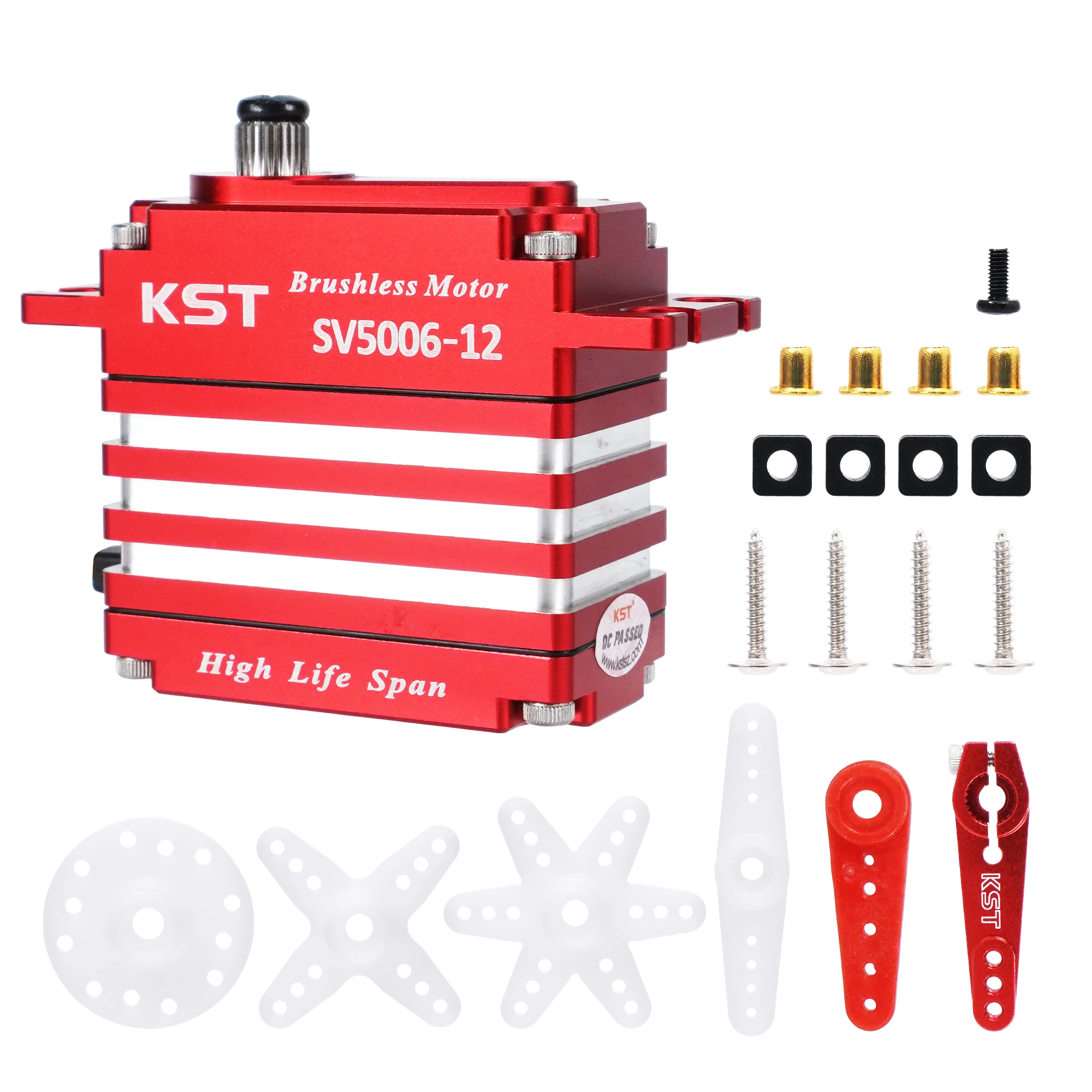

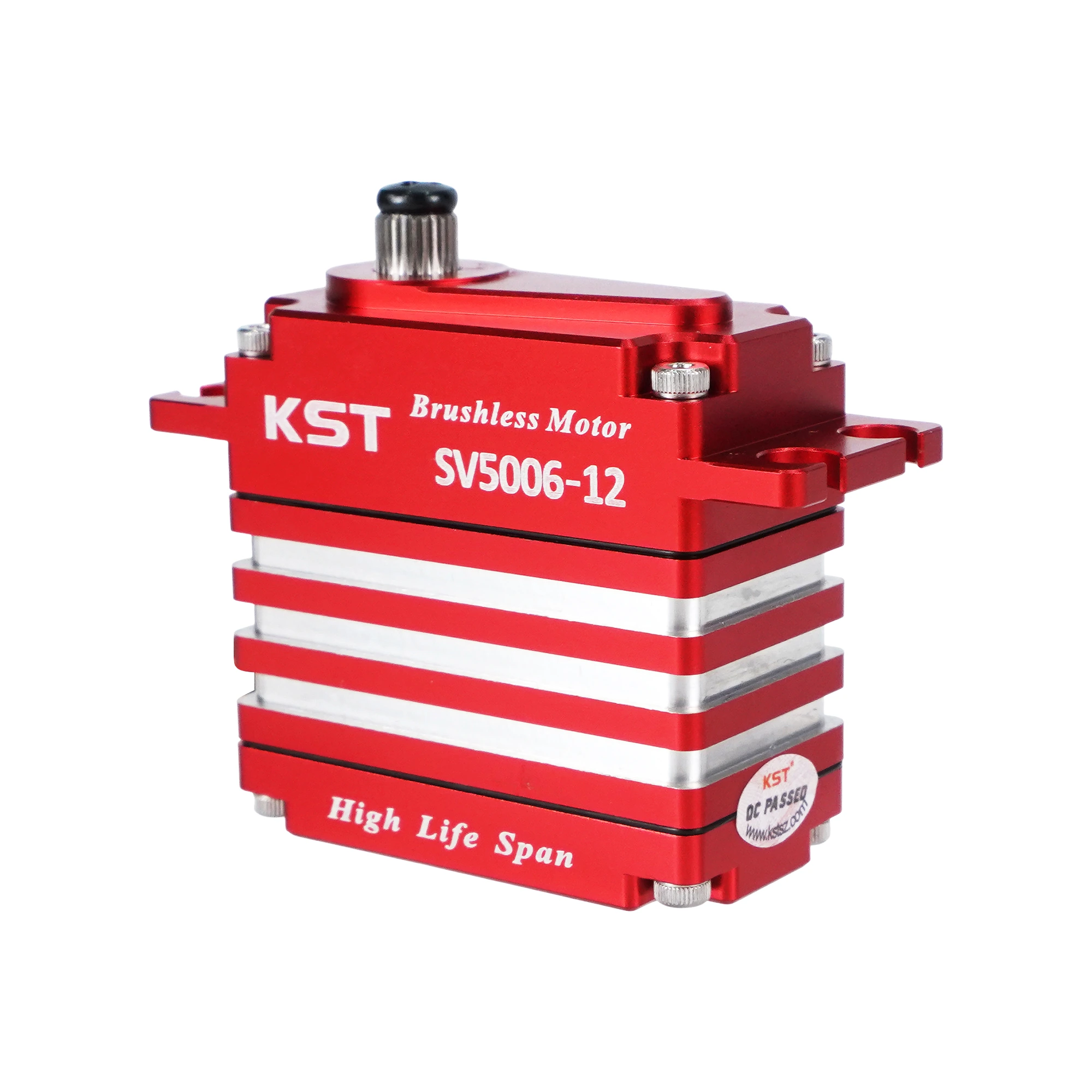

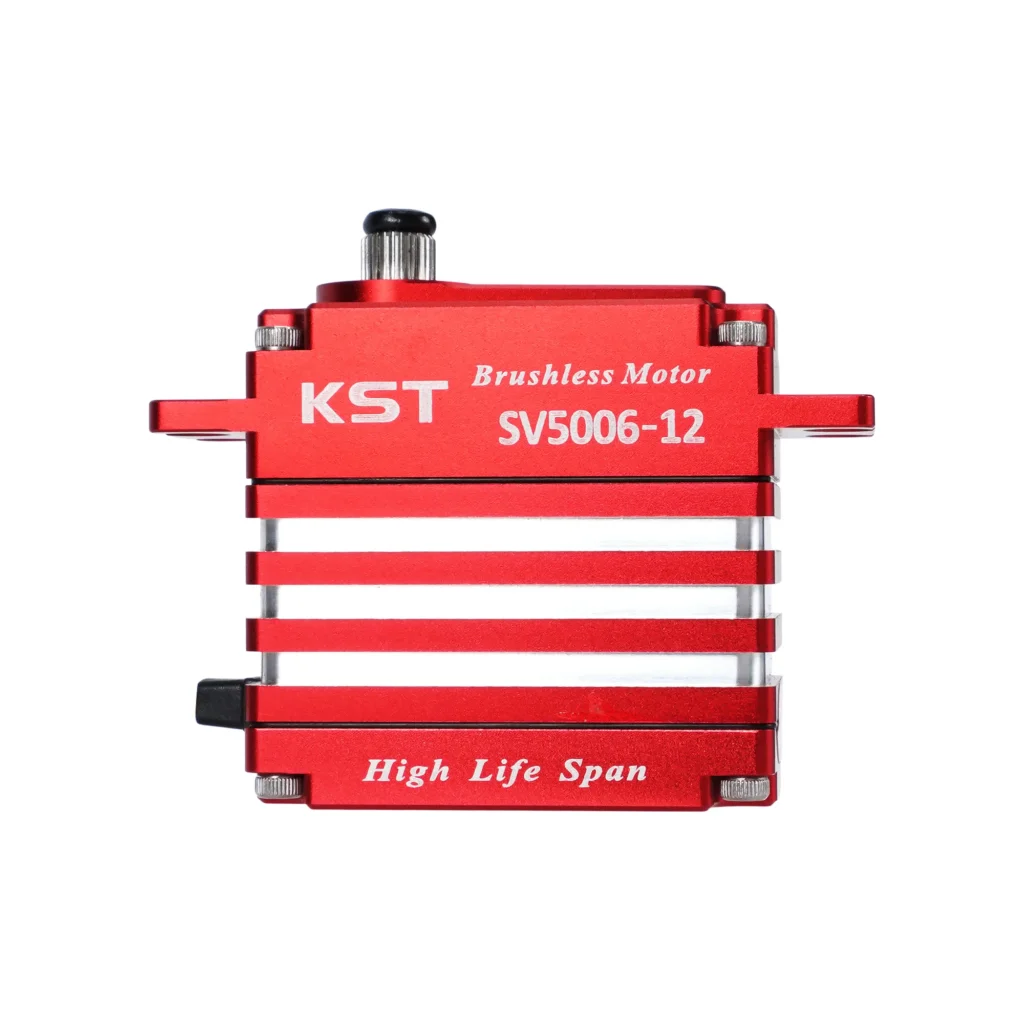

KST SV5006-12 Digital Servo
$218.40
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST SV5006-12 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC8.40V-13.0V
- Torque: 40Kgf.cm@8.40V 50Kgf.cm@12.0V 55Kgf.cm@13.0V
- Speed: 0.100sec/60°@8.40V 0.068sec/60°@12.0V 0.063sec/60°@13.0V
- Motor: 4Pole Brushless Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Programmable Yes
Technical Specifications
| Rated voltage | DC12V.0 |
|---|---|
| Operating voltage | DC8.40V-13.0V |
| Torque | 40Kgf.cm@8.40V 50Kgf.cm@12.0V 55Kgf.cm@13.0V |
| Speed | 0.100sec/60°@8.40V 0.068sec/60°@12.0V 0.063sec/60°@13.0V |
| Working frequency | 1520us/333Hz |
| Travel | ±100°=200°Total |
| Operating temperature | -10℃……+65℃ |
| Soft start | Programmable |
| Programmable | Programmable Yes |
| Case material | Aluminum Alloy |
| Motor type | 4Pole Brushless Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 6BB |
| Dimensions | 40*20*40mm±0.2mm |
| Protocol / interface | PWM Command Interface |
