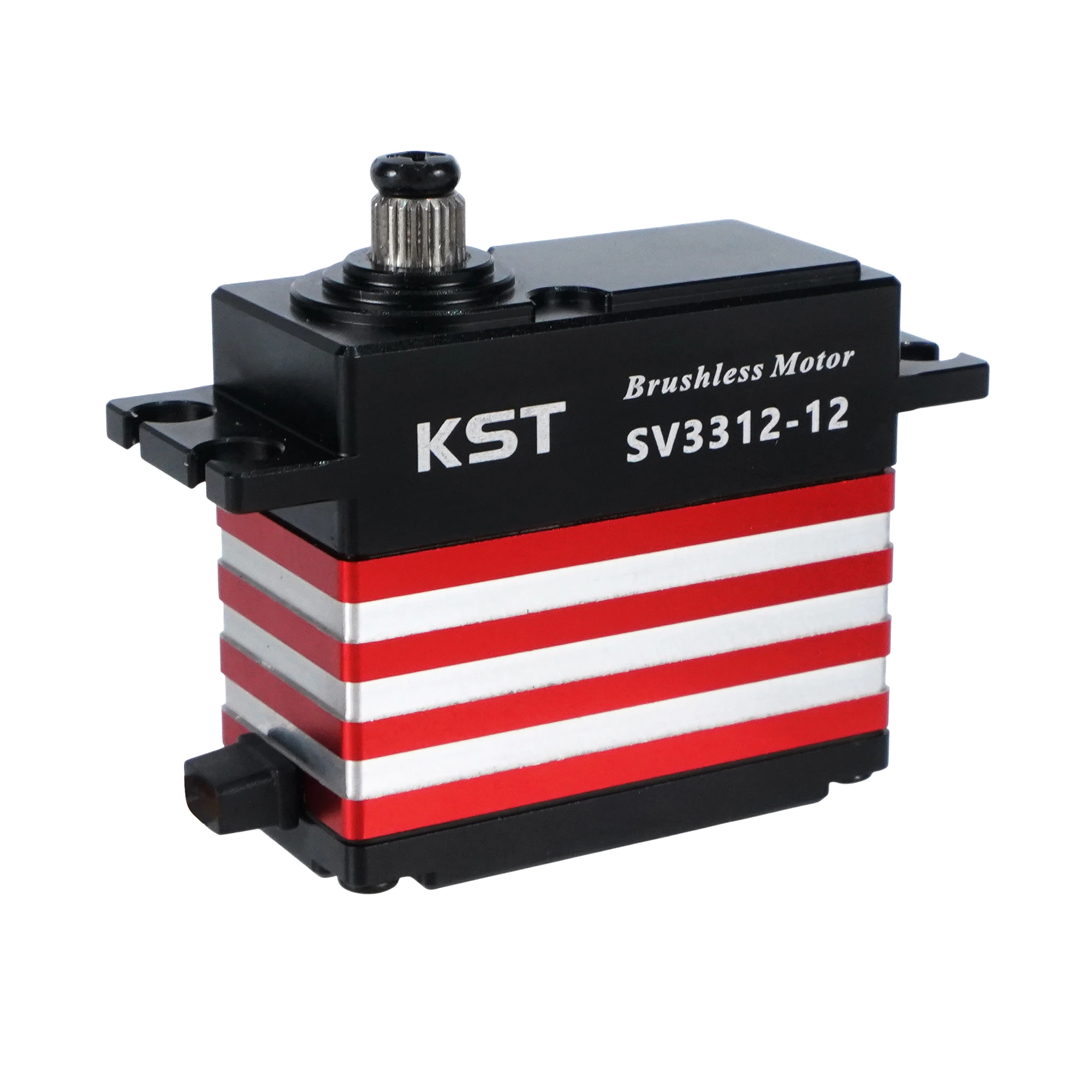

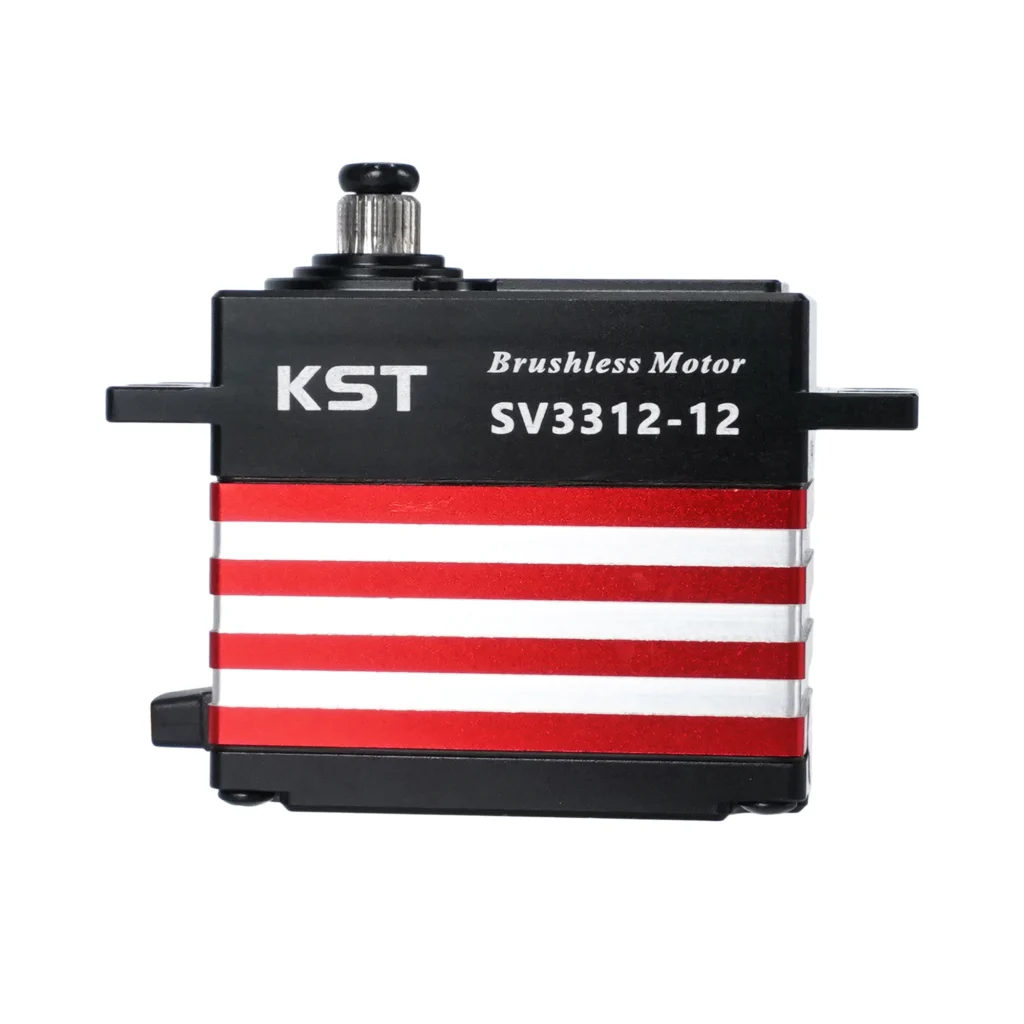

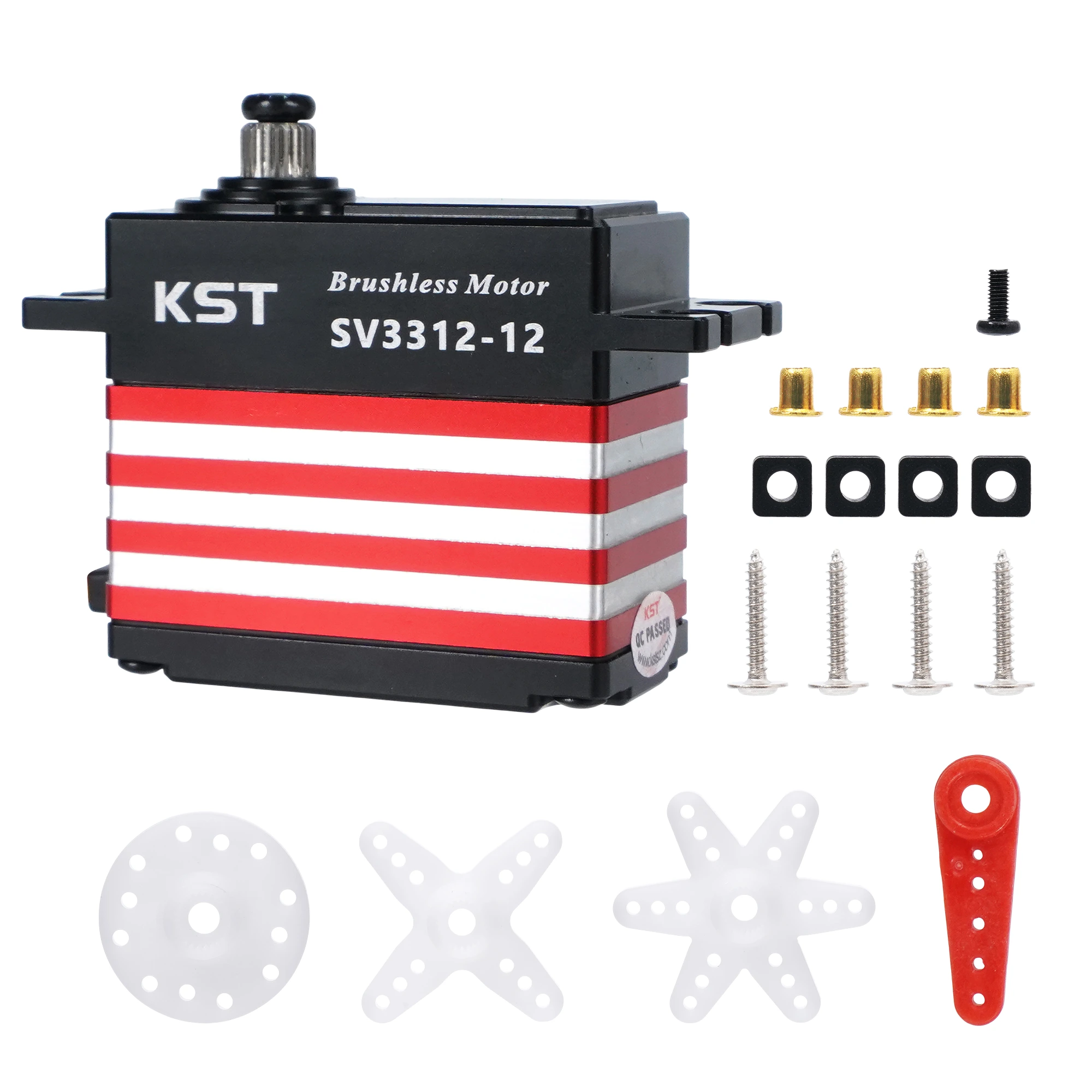

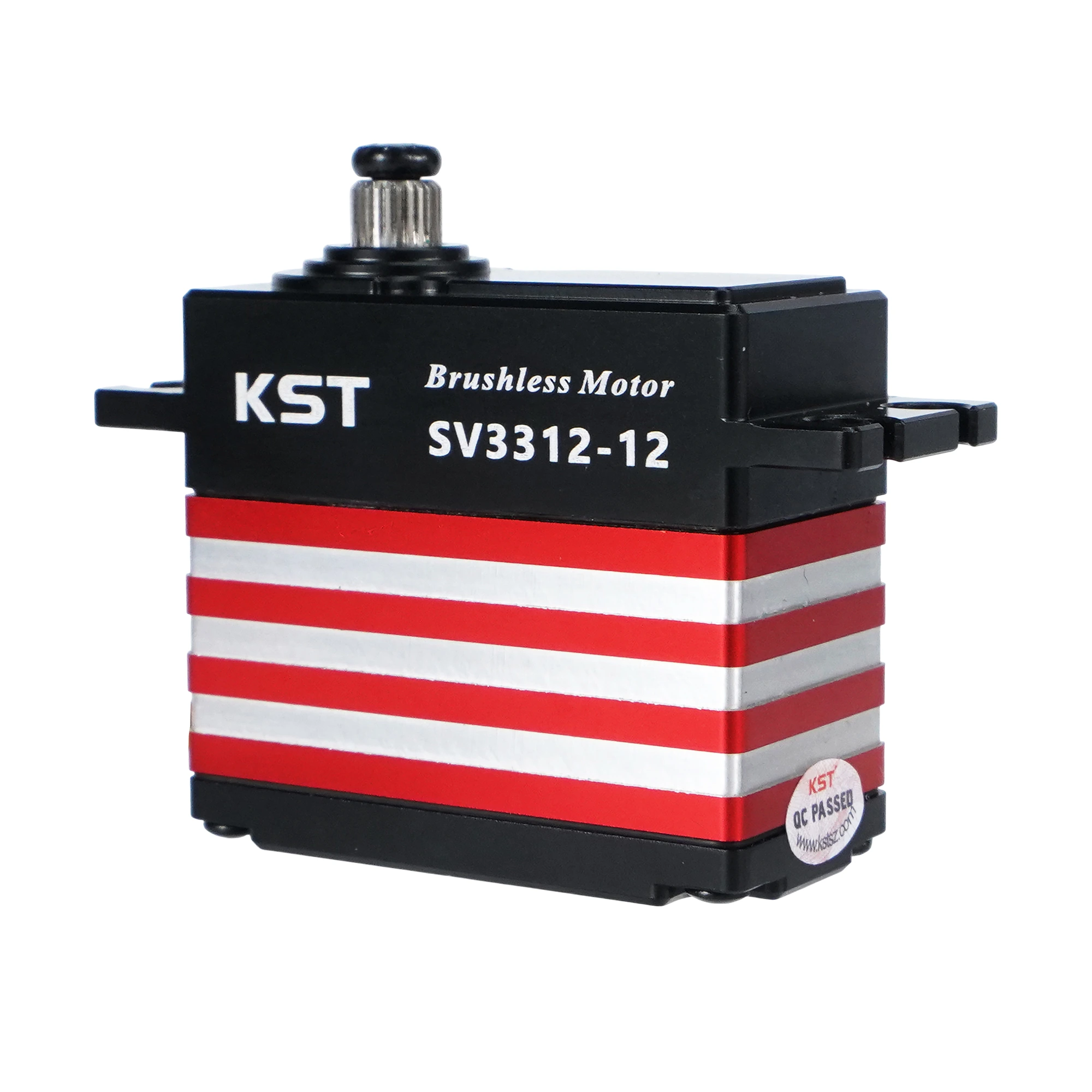

KST SV3312-12 Digital Servo
$112.80
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST SV3312-12 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC8.0V-13.0V
- Torque: 28Kgf.cm@8.4V 33Kgf.cm@12V 38Kgf.cm@13V
- Speed: 0.16sec/ 60° @8.4V 0.12sec/ 60° @12V 0.10sec/ 60° @13V
- Motor: Brushless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Programmable Yes
Technical Specifications
| Rated voltage | DC12V |
|---|---|
| Operating voltage | DC8.0V-13.0V |
| Torque | 28Kgf.cm@8.4V 33Kgf.cm@12V 38Kgf.cm@13V |
| Speed | 0.16sec/ 60° @8.4V 0.12sec/ 60° @12V 0.10sec/ 60° @13V |
| Working frequency | 1520us/333Hz |
| Travel | ±60° =120° Total |
| Operating temperature | -20℃……+65℃ |
| Soft start | Programmable |
| Programmable | Programmable Yes |
| Case material | Aluminum Alloy |
| Motor type | Brushless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 40.5*20*38mm±0.2mm |
| Protocol / interface | PWM Command Interface |
