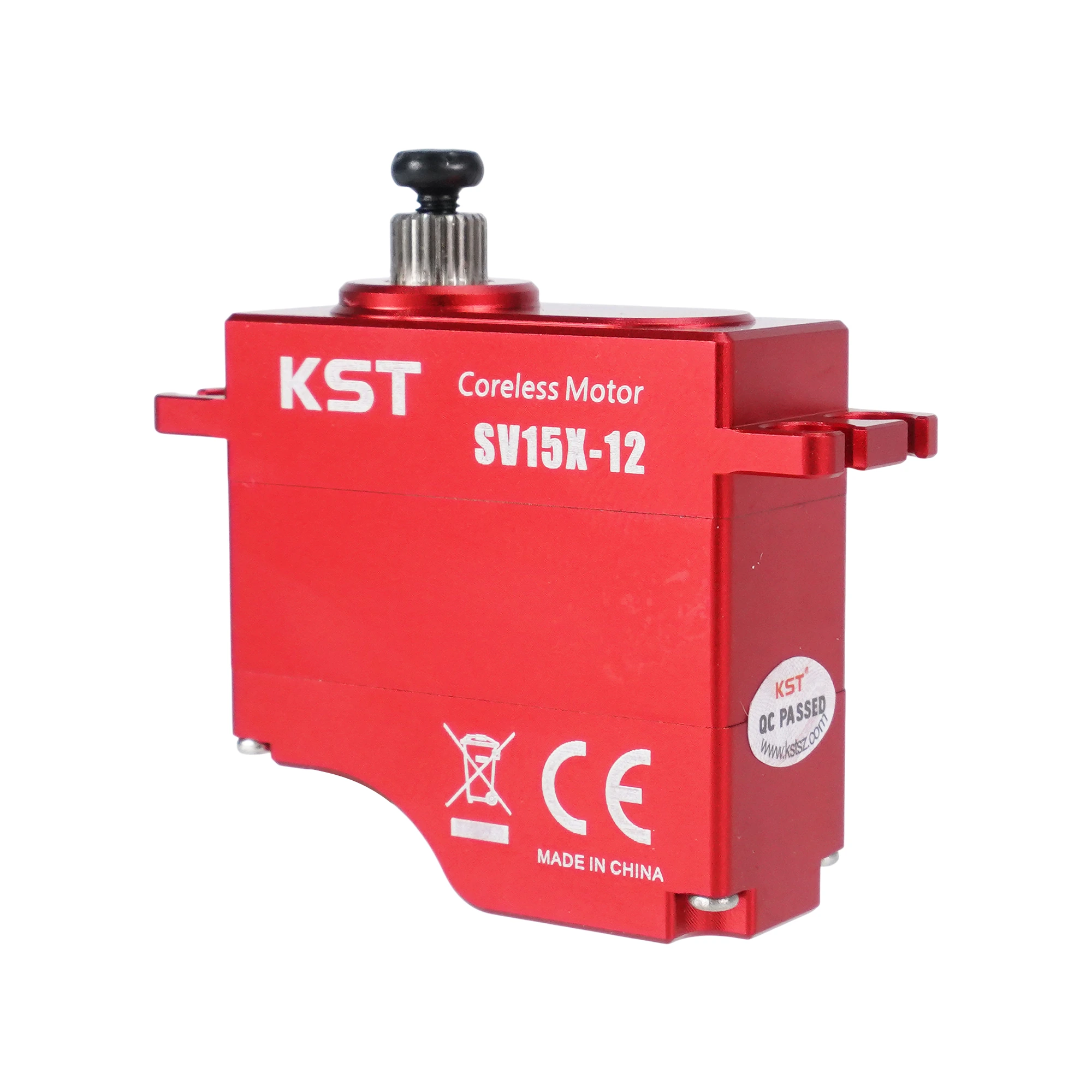

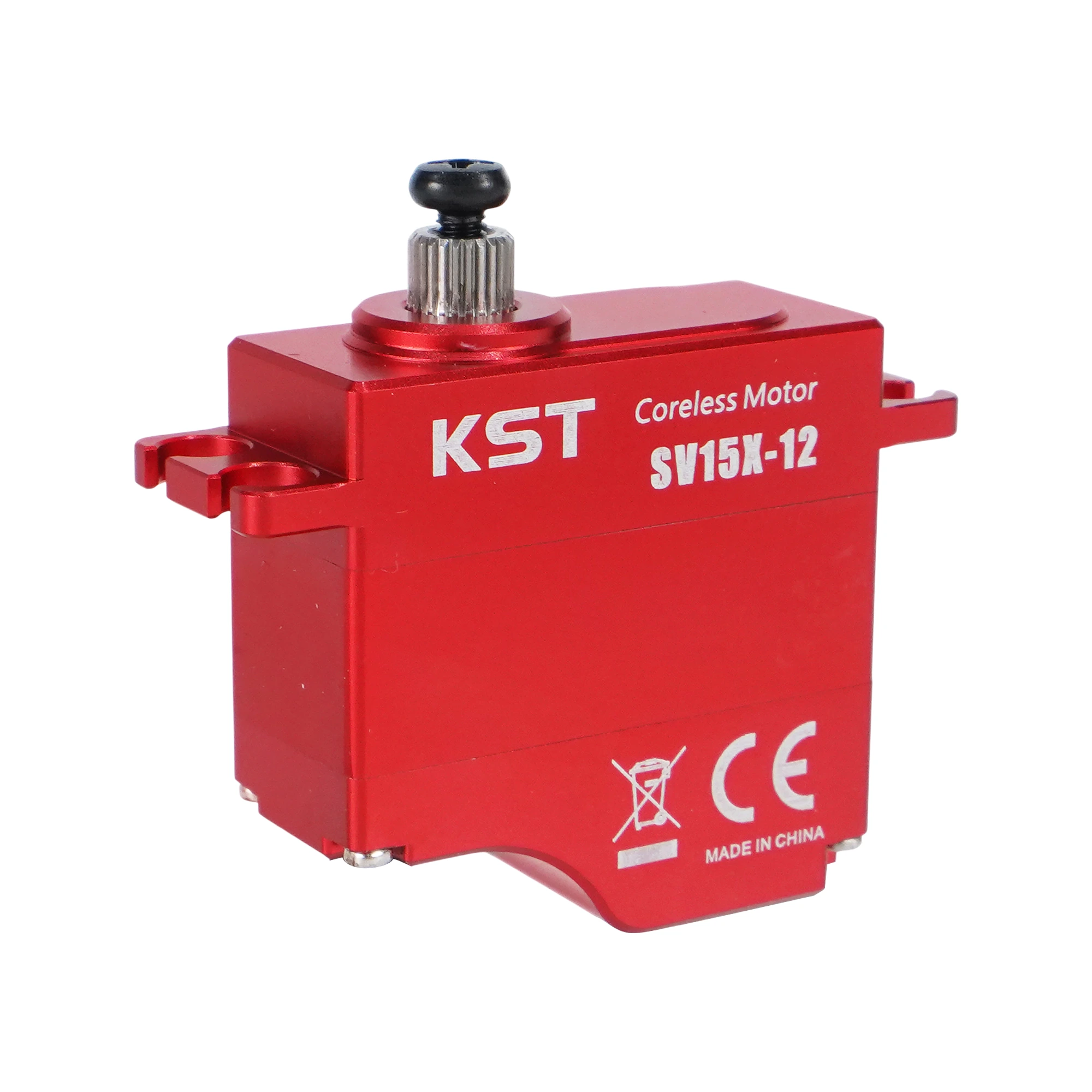

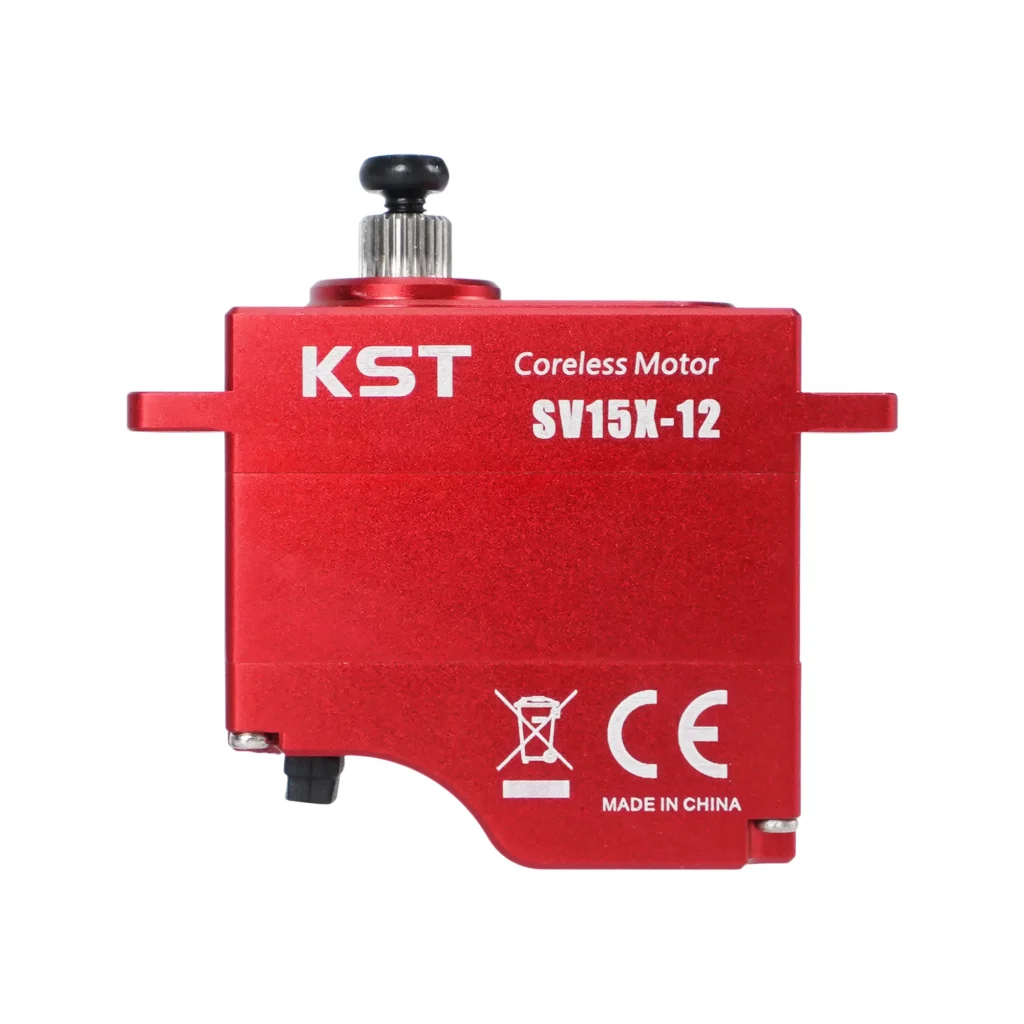

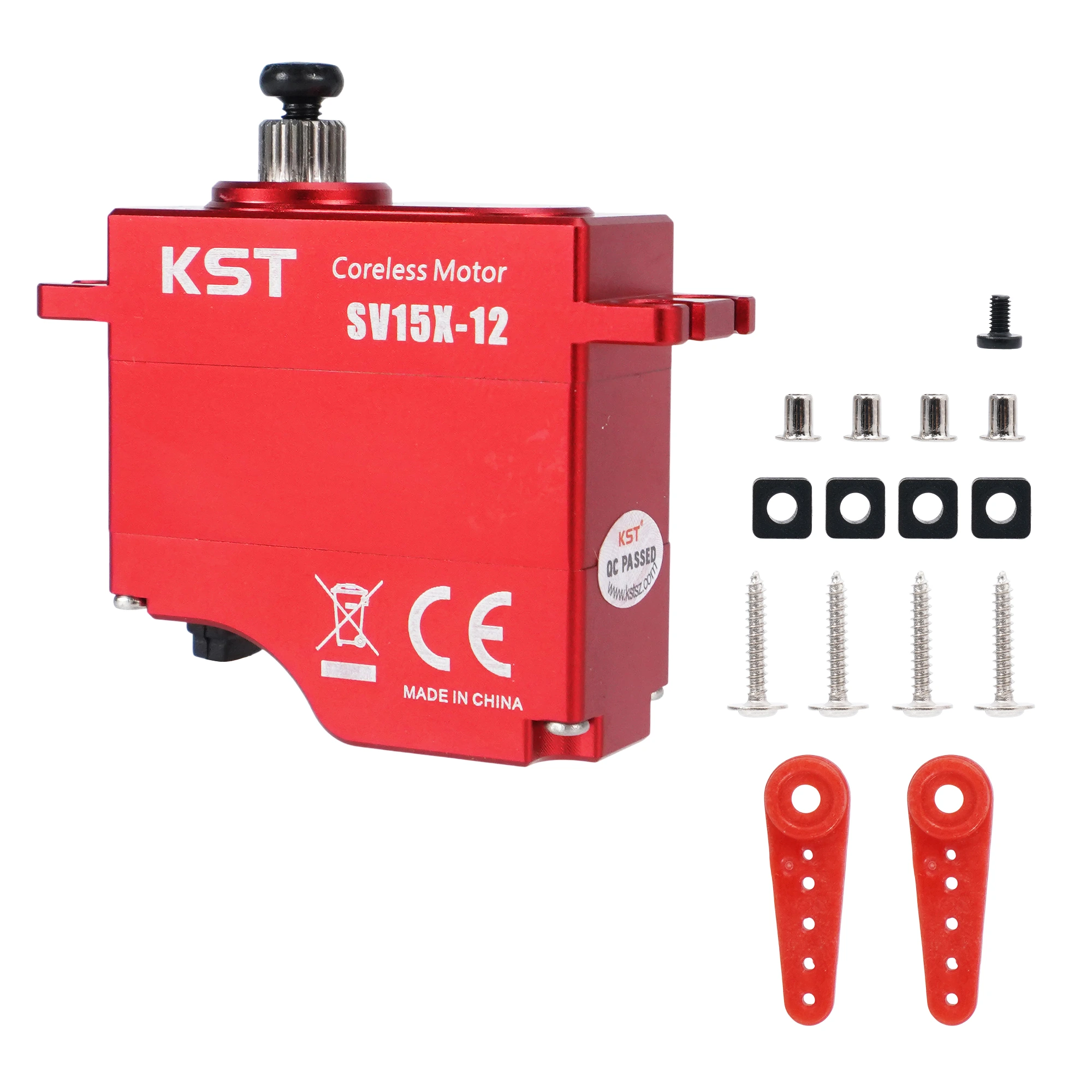

KST SV15X-12 Digital Servo
$91.20
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST SV15X-12 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC8.40V-13.0V
- Torque: 9.0Kgf.cm@8.40V 12.0Kgf.cm@12.0V 13.0Kgf.cm@13.0V
- Speed: 0.08sec/ 60° @8.40V 0.06sec/ 60° @12.0V 0.05sec/ 60° @13.0V Start Current 1.45A@8.40V 2.05A@12.0V 2.35A@13.0V
- Motor: Coreless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Programmable Yes
Technical Specifications
| Rated voltage | DC12.0V |
|---|---|
| Operating voltage | DC8.40V-13.0V |
| Torque | 9.0Kgf.cm@8.40V 12.0Kgf.cm@12.0V 13.0Kgf.cm@13.0V |
| Speed | 0.08sec/ 60° @8.40V 0.06sec/ 60° @12.0V 0.05sec/ 60° @13.0V Start Current 1.45A@8.40V 2.05A@12.0V 2.35A@13.0V |
| Working frequency | 760us/ 560Hz |
| Operating temperature | -10℃……+65℃ |
| Soft start | Programmable |
| Programmable | Programmable Yes |
| Case material | Aluminum Alloy |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 35.5*15*36.5mm±0.2mm |
| Weight | 40g±10% |
| Protocol / interface | PWM Command Interface |
