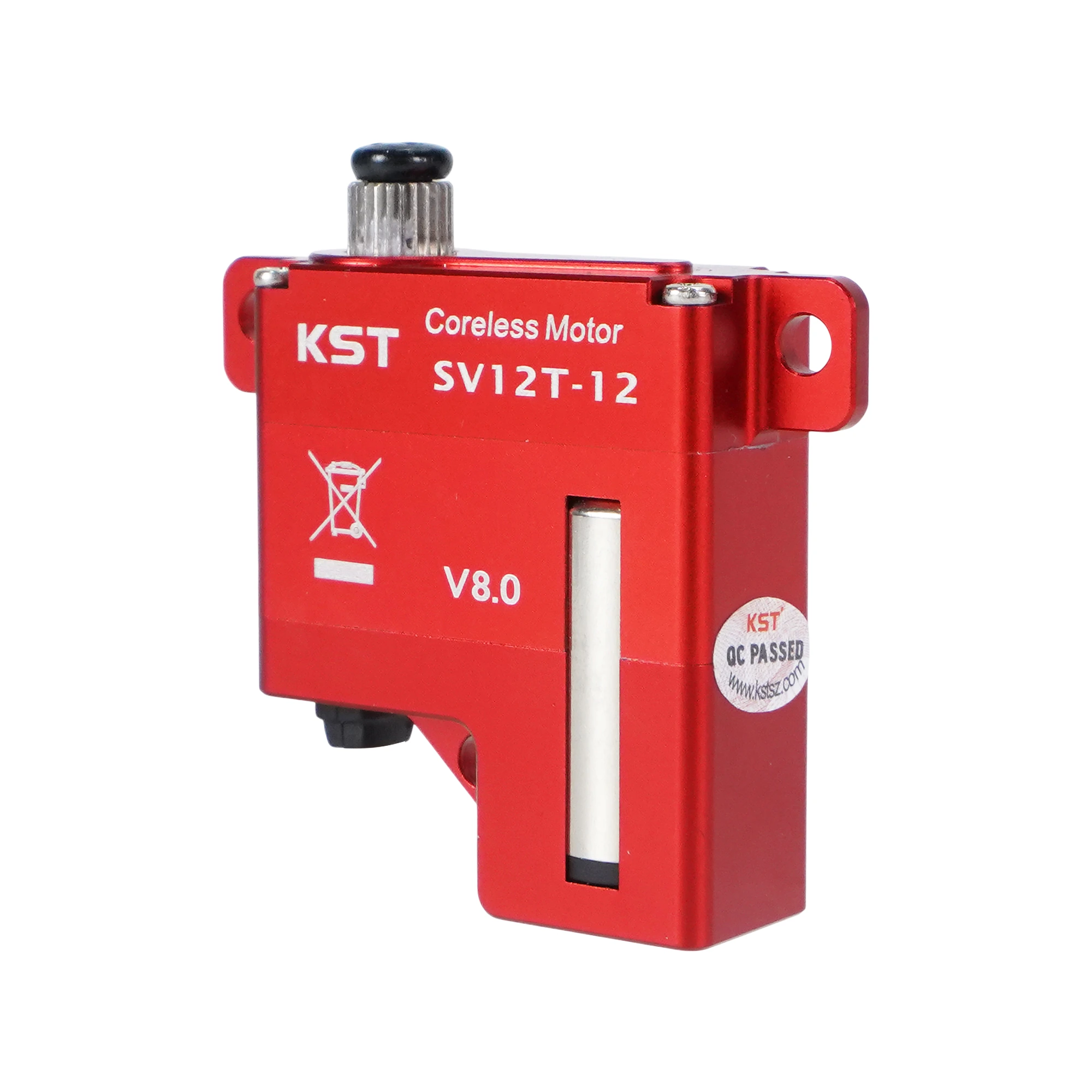

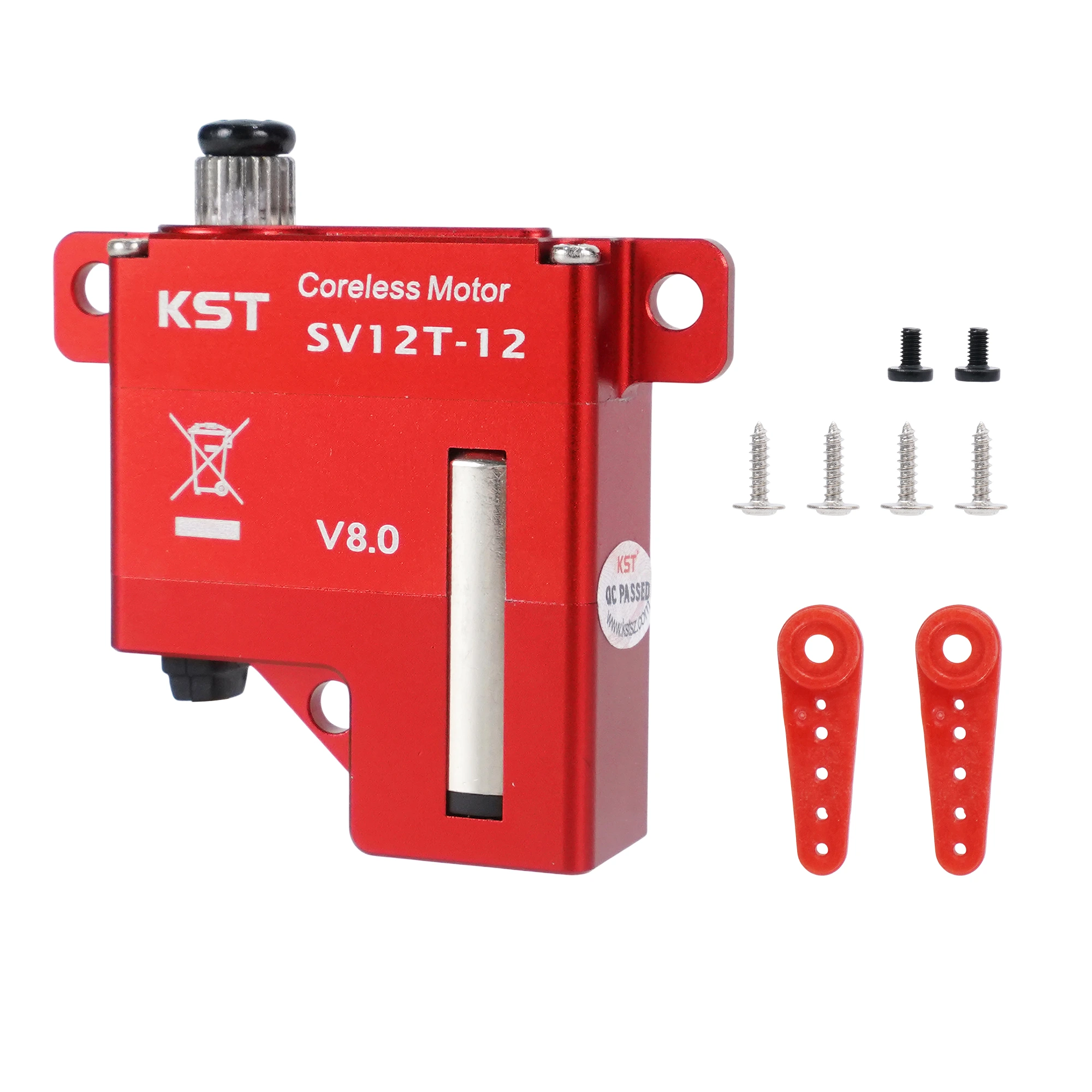

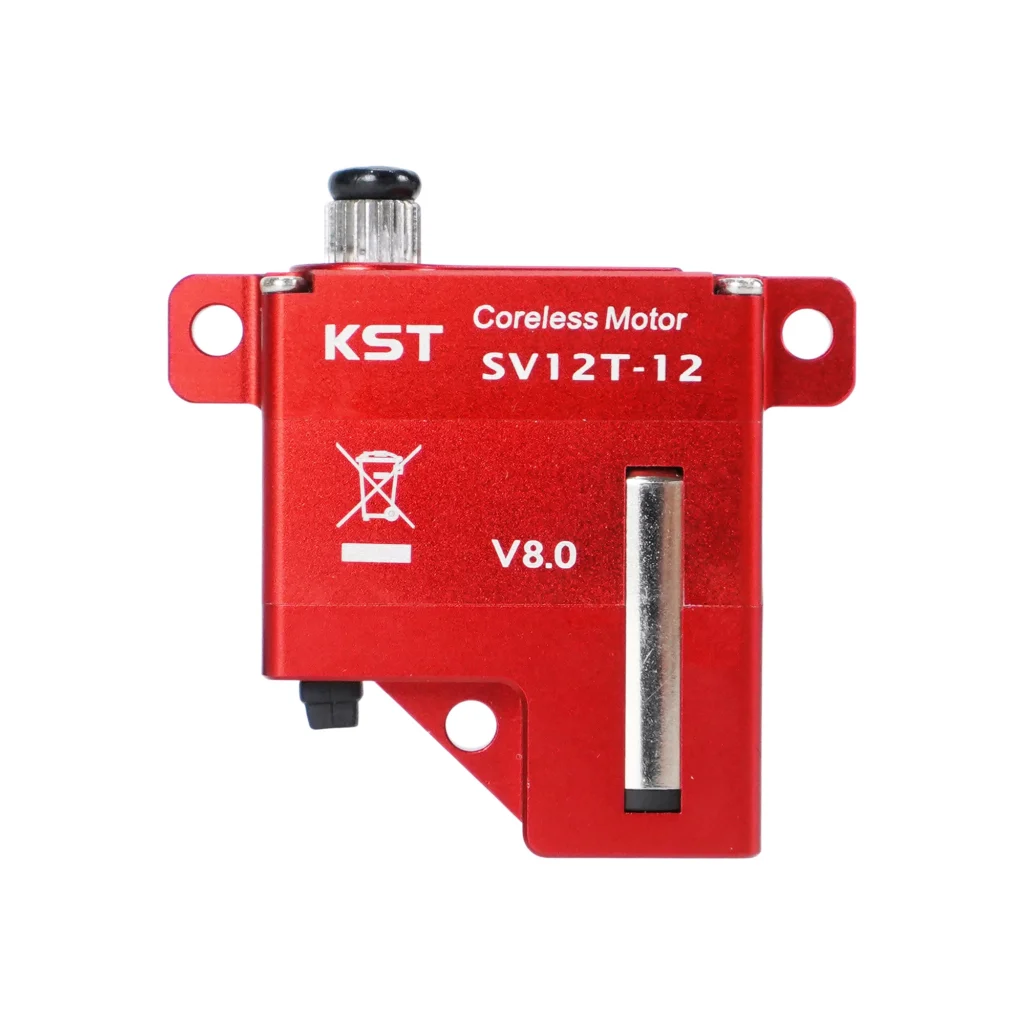

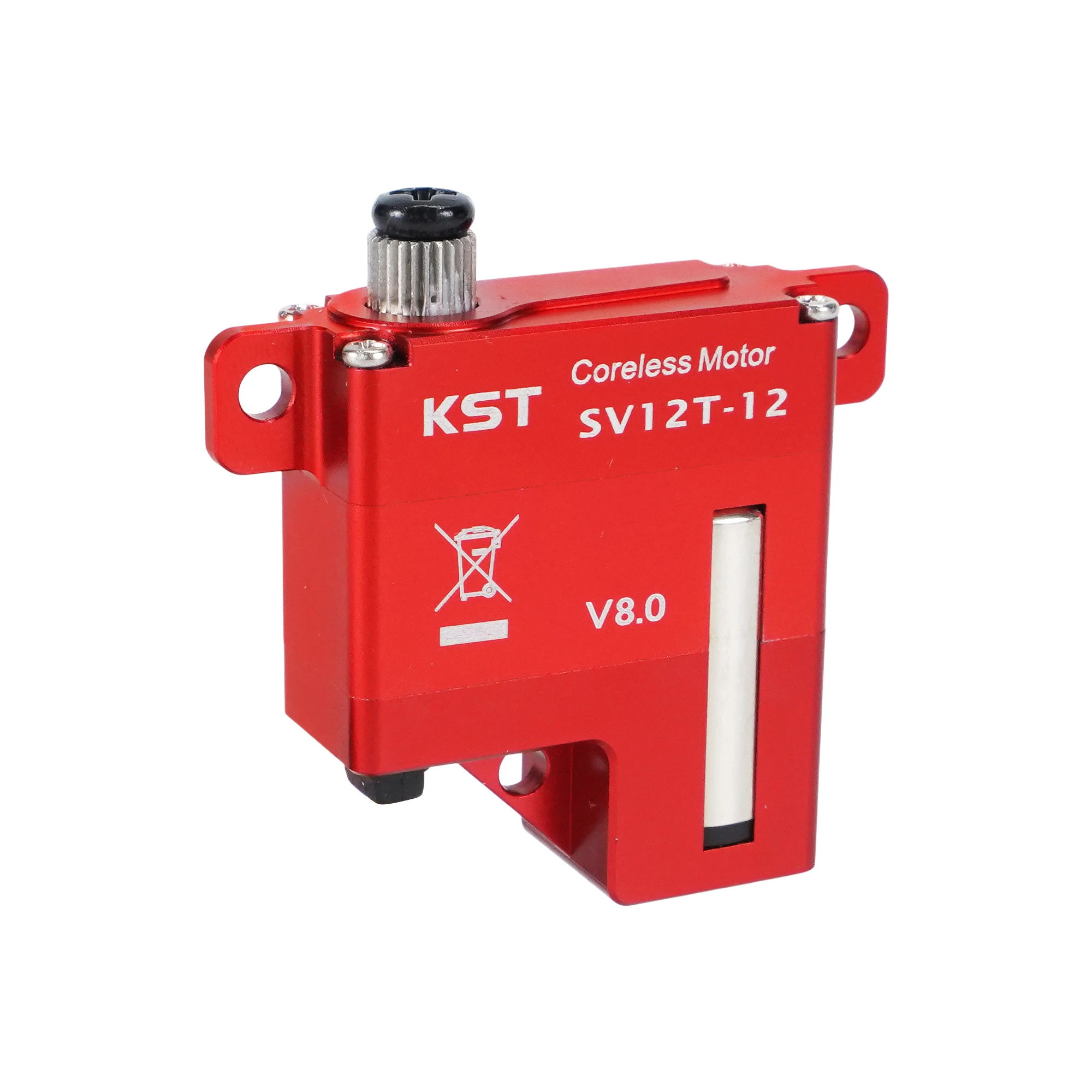

KST SV12T-12 Digital Servo
$98.40
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST SV12T-12 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC8.4V-12.0V
- Torque: 16.0Kgf.cm@8.40V 20.0Kgf.cm@12.0V 22.0Kgf.cm@13.0V
- Speed: 0.16sec/ 60° @8.40V 0.12sec/ 60° @12.0V 0.11sec/ 60° @13.0V
- Motor: Coreless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Yes
Technical Specifications
| Rated voltage | DC12.0V |
|---|---|
| Operating voltage | DC8.4V-12.0V |
| Torque | 16.0Kgf.cm@8.40V 20.0Kgf.cm@12.0V 22.0Kgf.cm@13.0V |
| Speed | 0.16sec/ 60° @8.40V 0.12sec/ 60° @12.0V 0.11sec/ 60° @13.0V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±60° = 120° Total |
| Operating temperature | -10℃……+65℃ |
| Soft start | Yes |
| Programmable | Yes |
| Case material | Aluminum Alloy |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 30*12*35.5mm±0.2mm |
| Weight | 32g±10% |
| Protocol / interface | PWM Command Interface |
