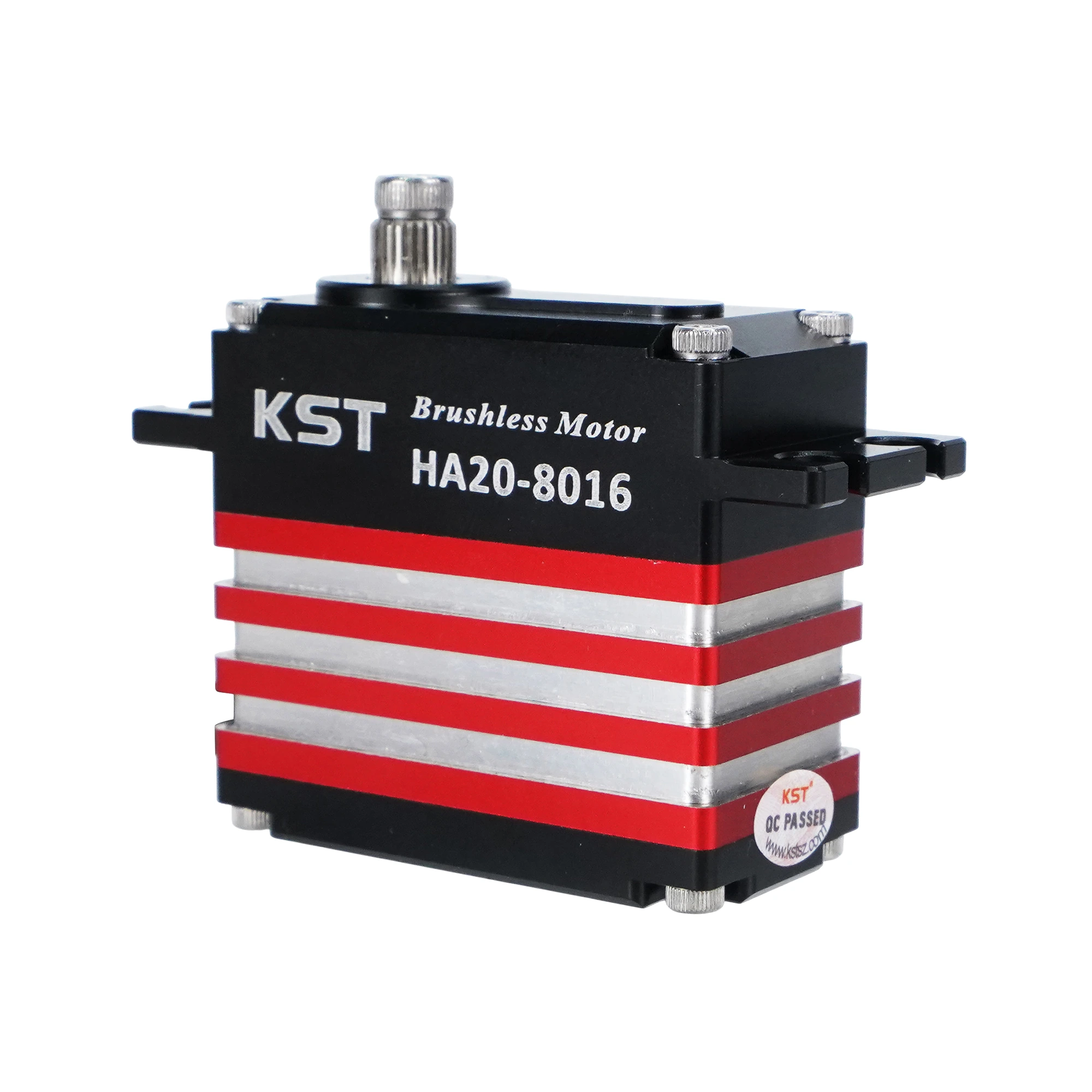

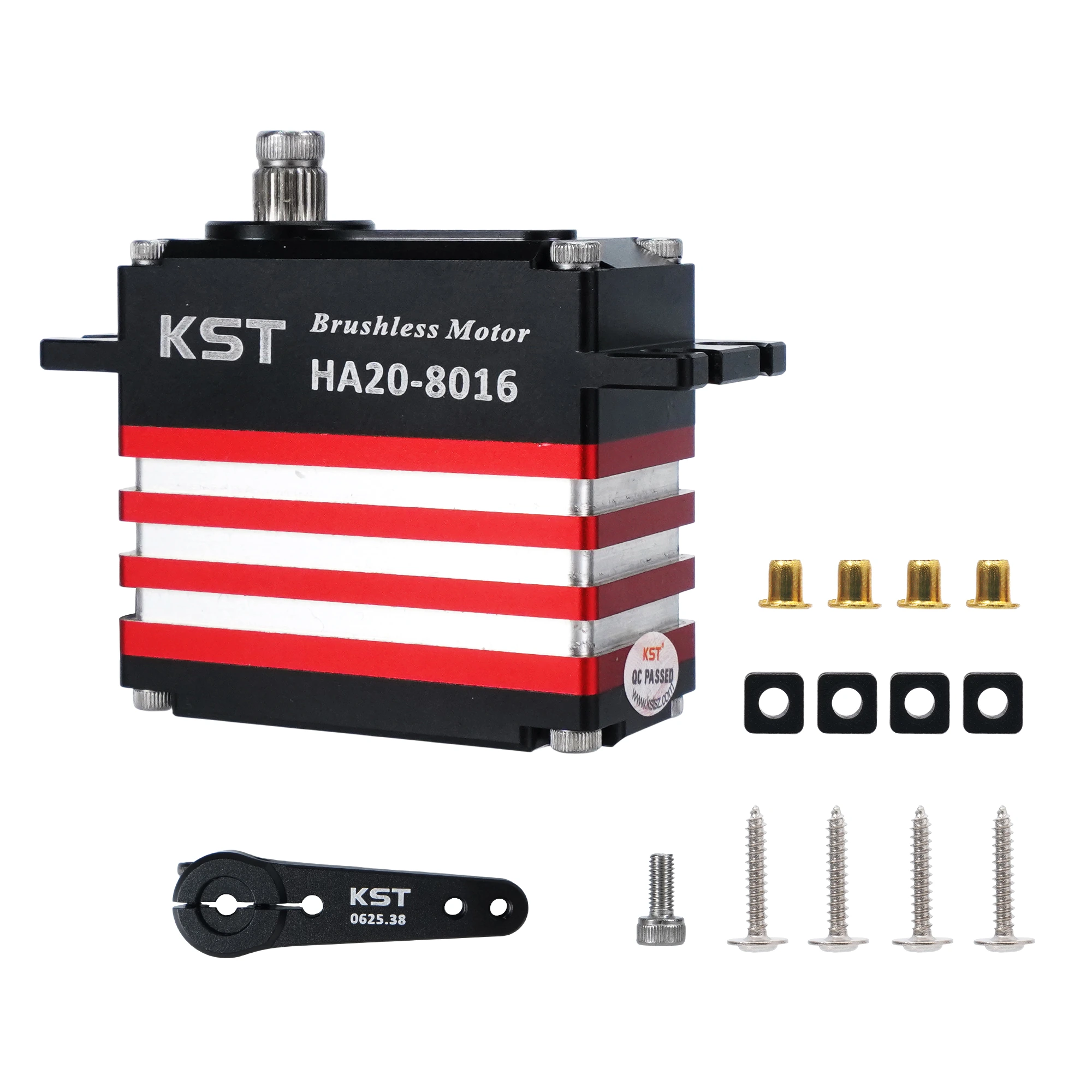

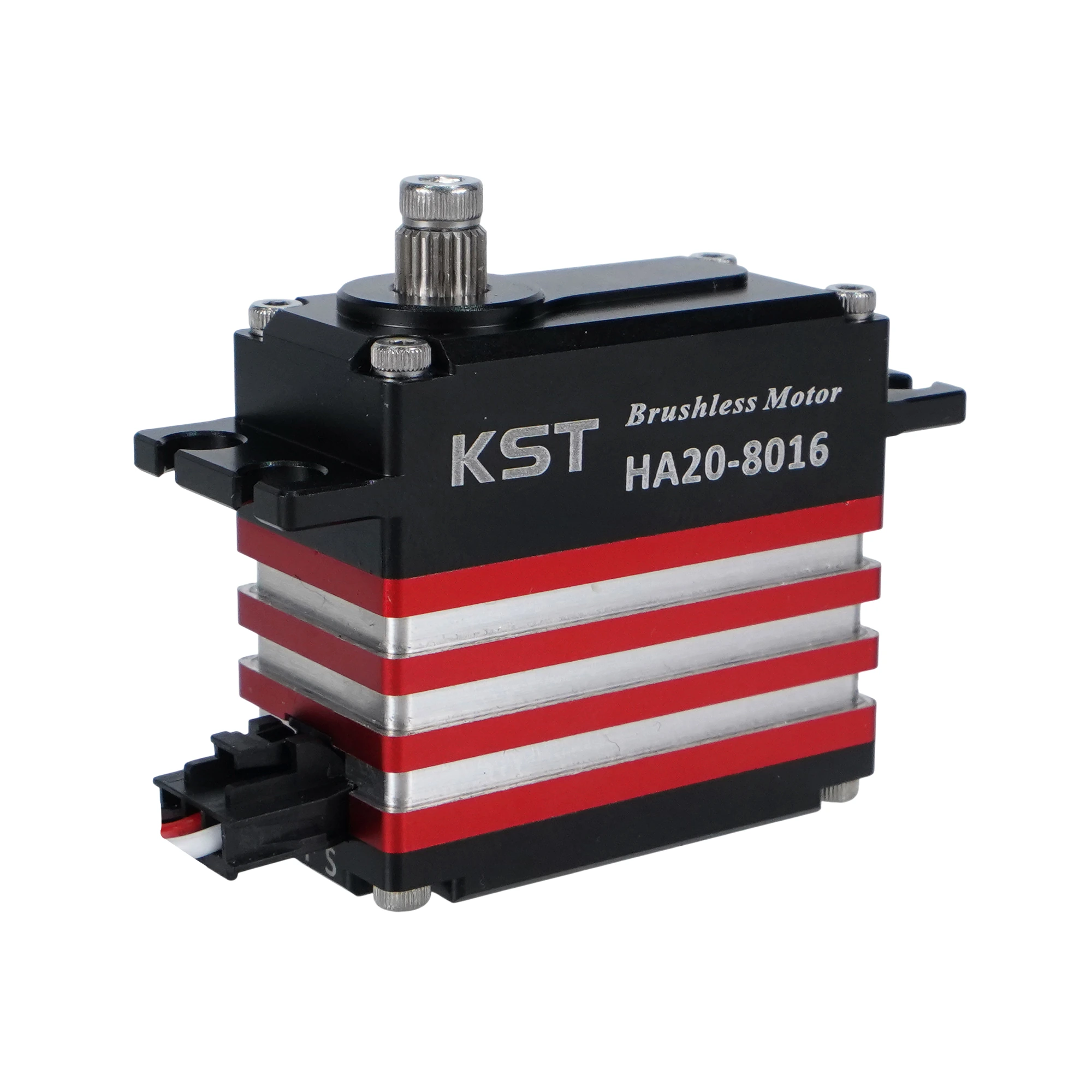

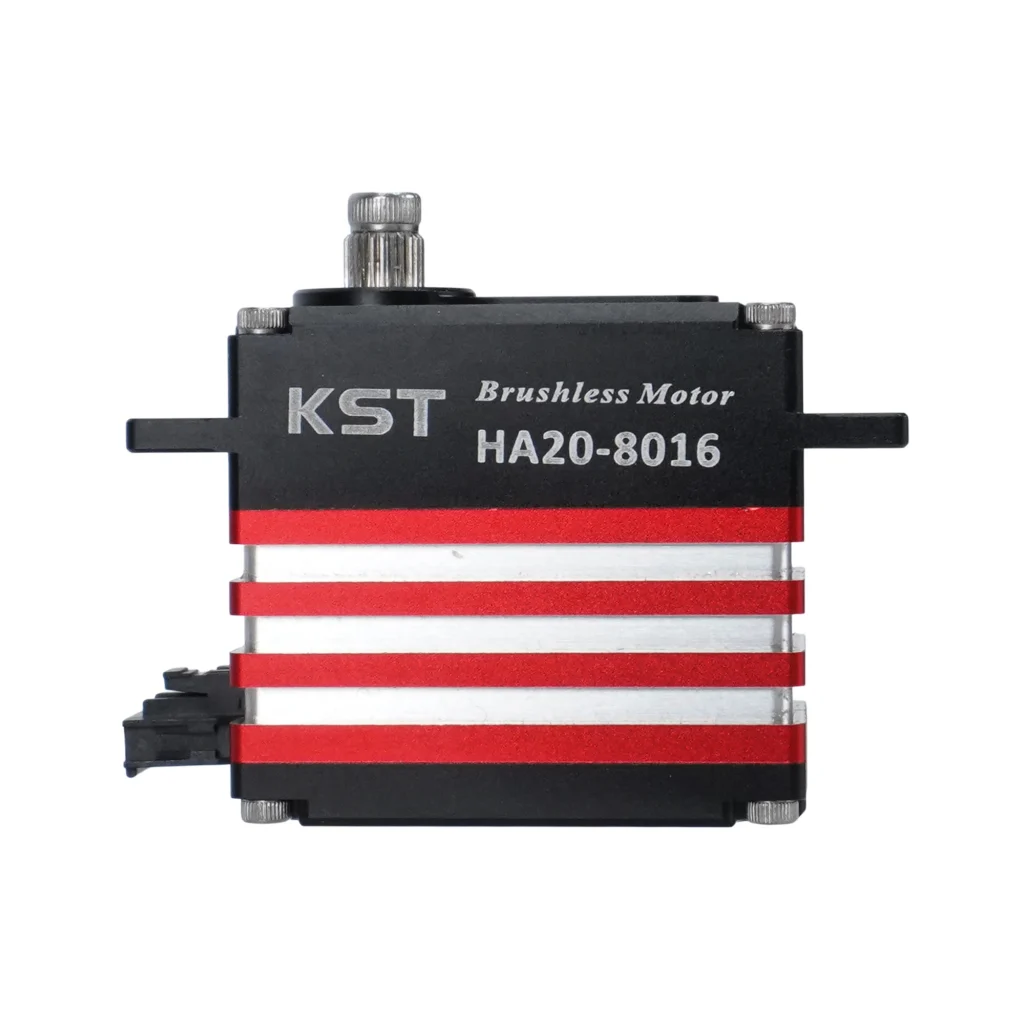

KST HA20-8016 Digital Servo
$200.40
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST HA20-8016 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC6.0V-8.4V
- Torque: 70Kgf.cm@6.0V 80Kgf.cm@7.4V 85Kgf.cm@8.4V
- Speed: 0.18sec/ 60° @6.0V 0.16sec/ 60° @7.4V 0.15sec/ 60° @8.4V
- Motor: Brushless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Yes
Technical Specifications
| Rated voltage | DC7.4V |
|---|---|
| Operating voltage | DC6.0V-8.4V |
| Torque | 70Kgf.cm@6.0V 80Kgf.cm@7.4V 85Kgf.cm@8.4V |
| Speed | 0.18sec/ 60° @6.0V 0.16sec/ 60° @7.4V 0.15sec/ 60° @8.4V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±50° =100° Total |
| Operating temperature | -10℃……+65℃ |
| Programmable | Yes |
| Case material | Aluminum Alloy |
| Motor type | Brushless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 40.5*20*38mm±0.2mm |
| Weight | 70g±10% 3. PWM Command Interface Signal Voltage HIGH: min.3.3V, max.5.0V Low: min.0.0V, max.1.5V Pulse Lengths 900us-2100us Pulse Lengths for Position -50° / 0° /+50° 1000us/1500us/2000us |
| Protocol / interface | PWM Command Interface |
