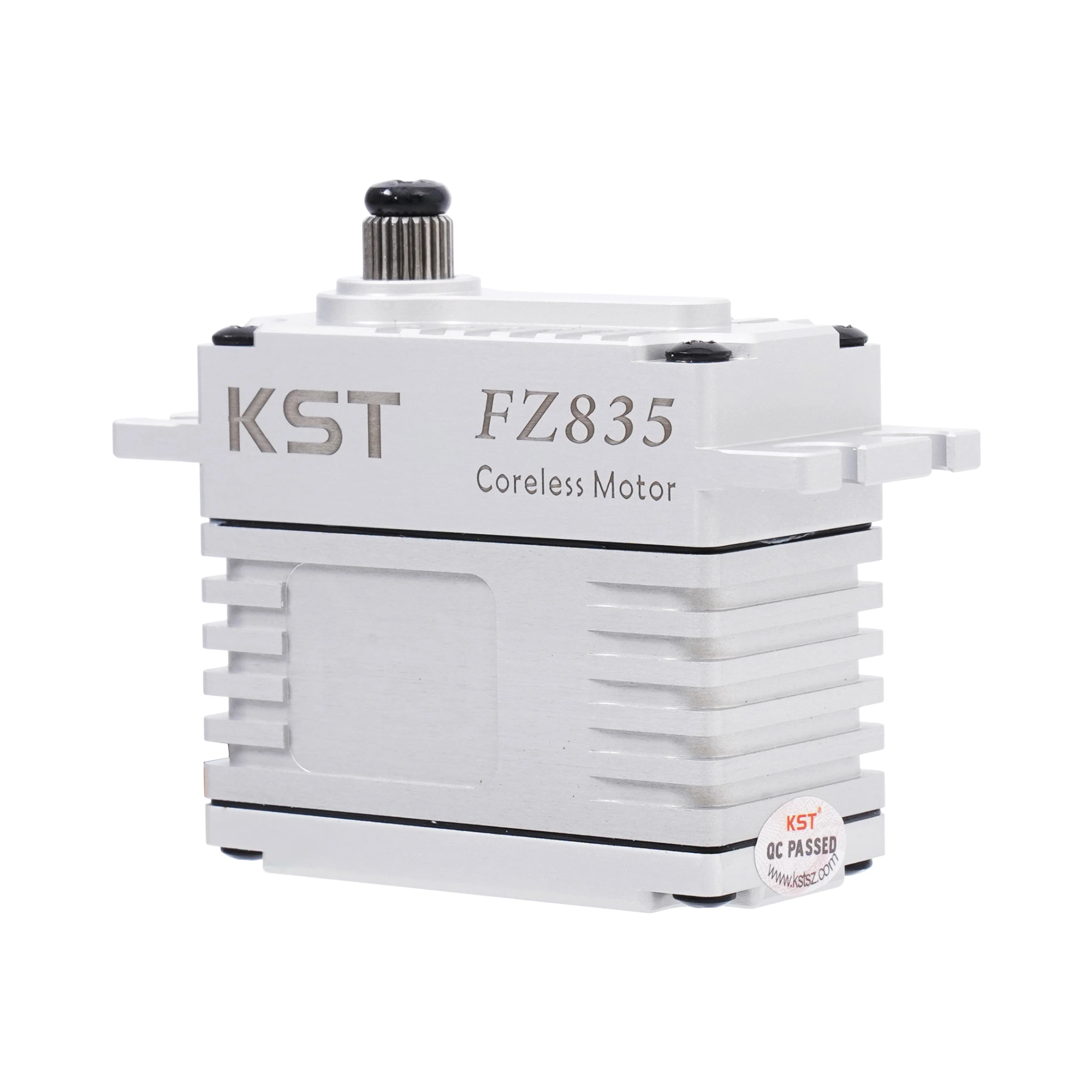

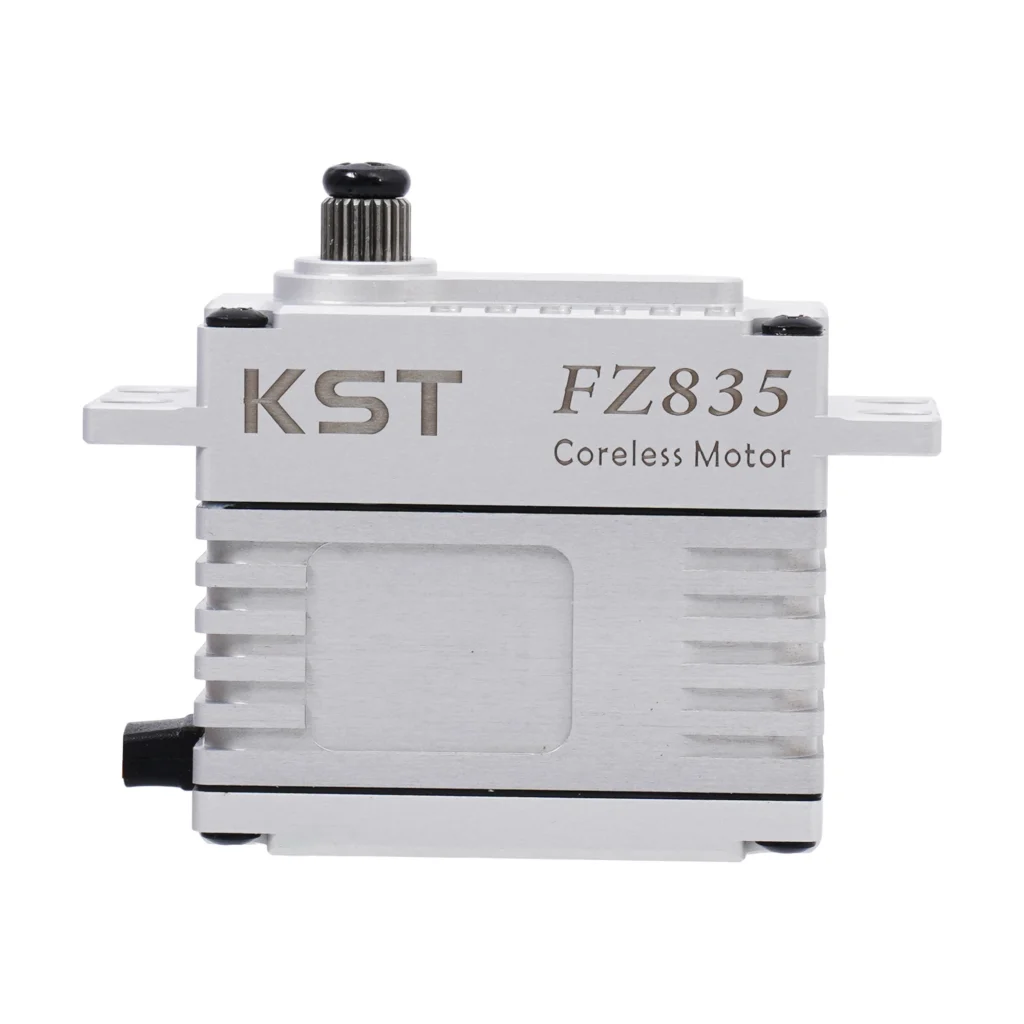

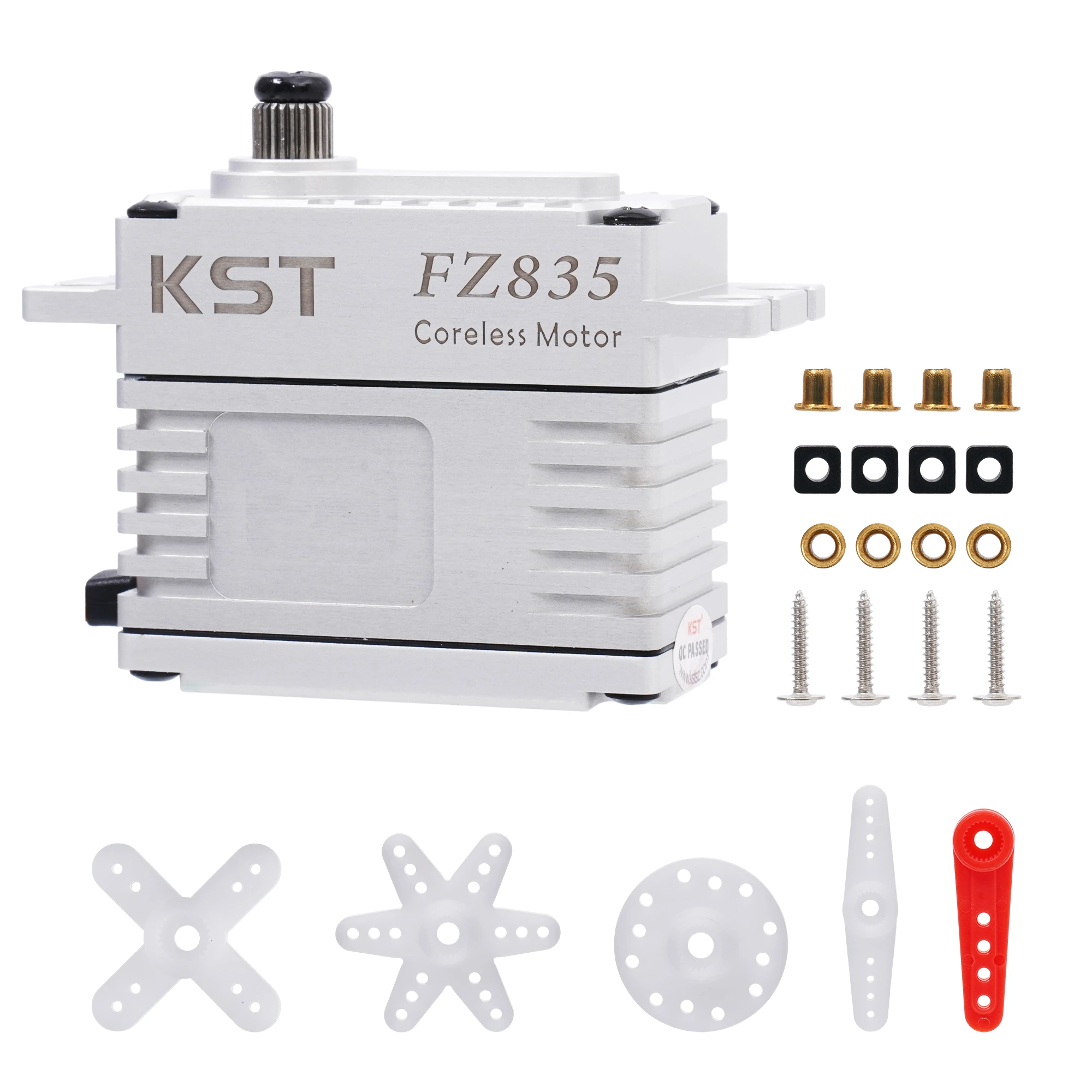

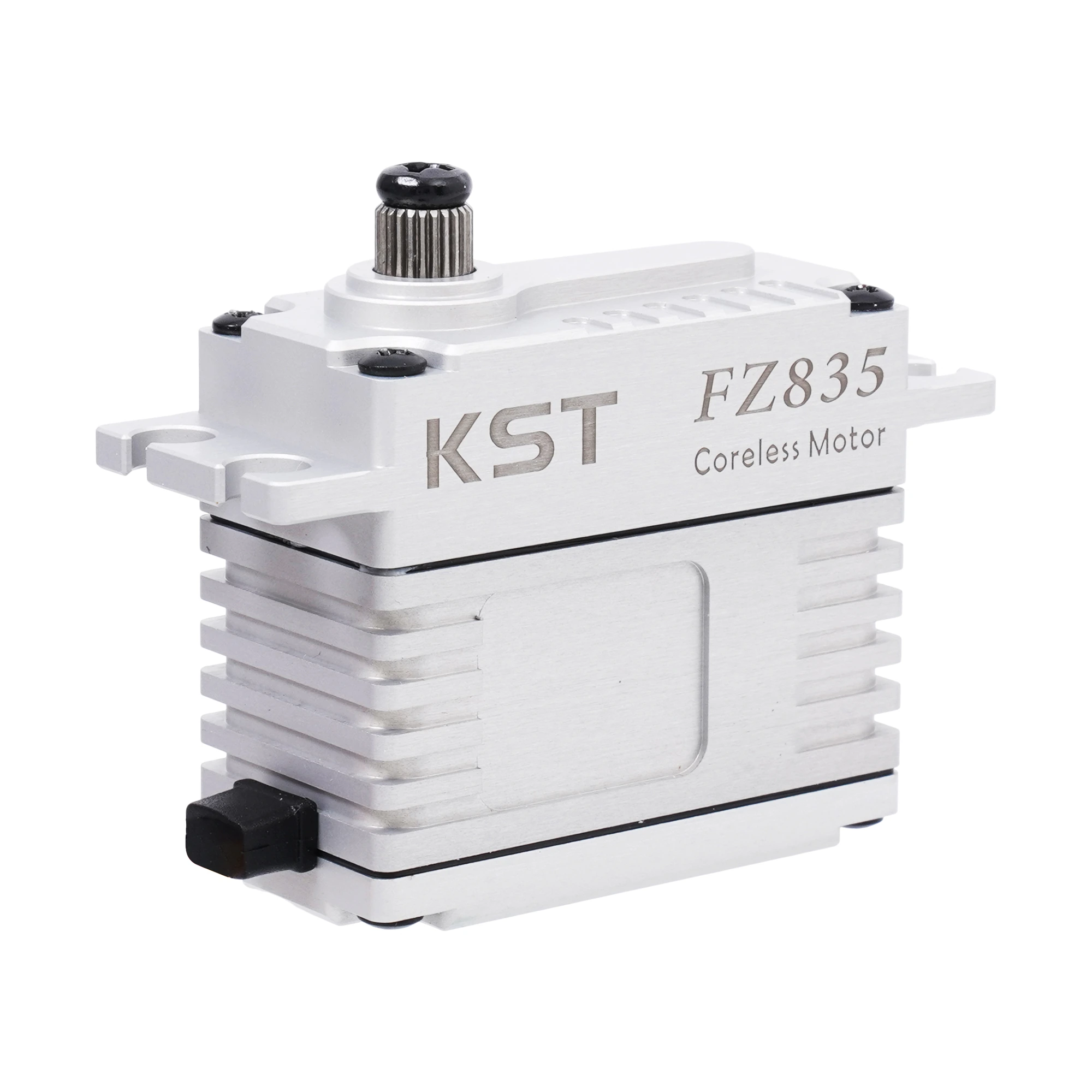

KST FZ835 Digital Servo
76,00 €
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST FZ835 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC6.0V-8.4V
- Torque: 36Kgf.cm@6.0V 45Kgf.cm @7.4V 50Kgf.cm @8.4V
- Speed: 0.18sec/ 60° @6.0V 0.16sec/ 60° @7.4V 0.15sec/ 60° @8.4V
- Motor: Coreless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
Technical Specifications
| Rated voltage | DC7.4V |
|---|---|
| Operating voltage | DC6.0V-8.4V |
| Torque | 36Kgf.cm@6.0V 45Kgf.cm @7.4V 50Kgf.cm @8.4V |
| Speed | 0.18sec/ 60° @6.0V 0.16sec/ 60° @7.4V 0.15sec/ 60° @8.4V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±50° = 100° Total |
| Operating temperature | -10℃……+65℃ |
| Case material | Aluminum Alloy |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Dimensions | 40.5*20*38mm±0.2mm 30mm*3.5m |
| Weight | 70g±10% |
| Protocol / interface | PWM Command Interface |
