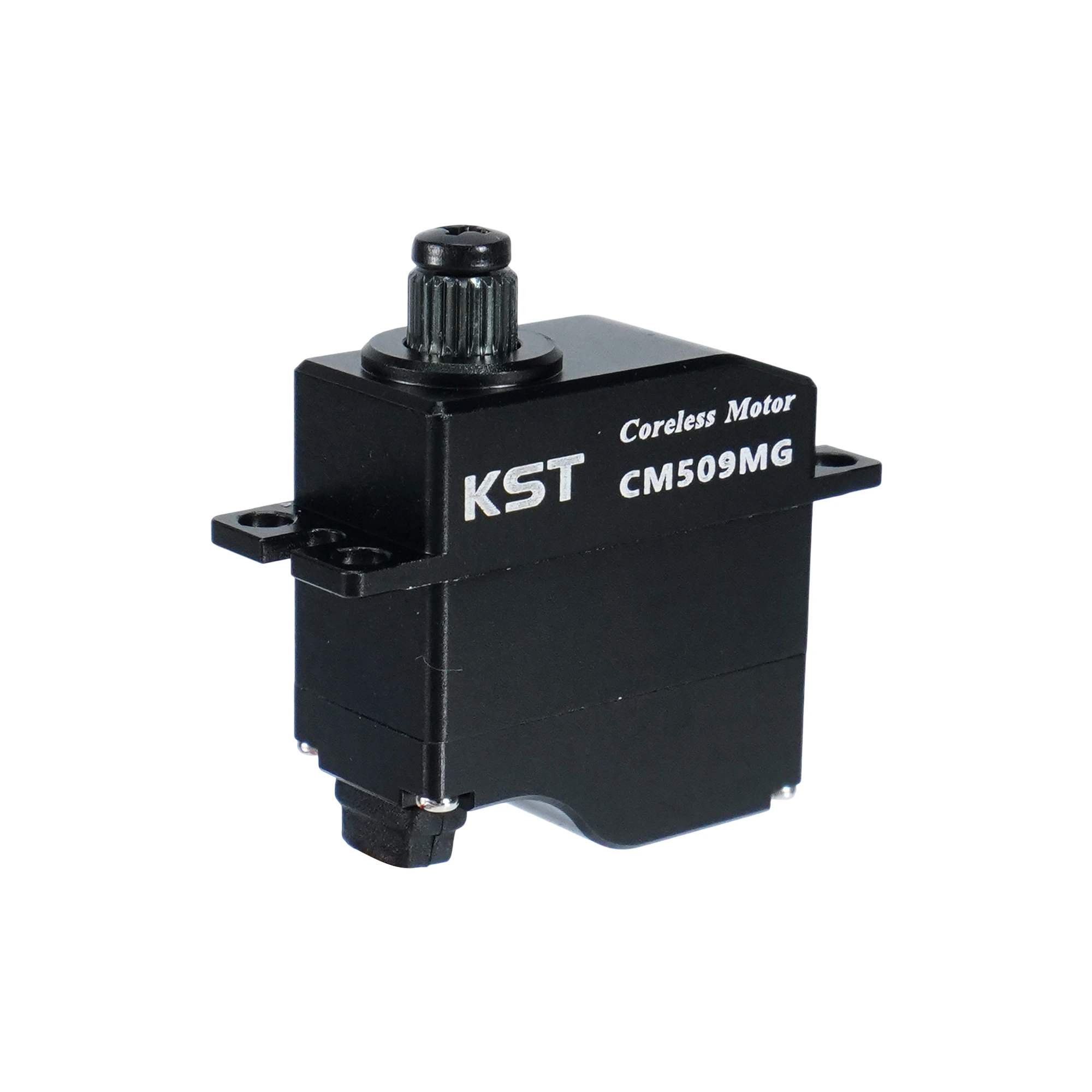

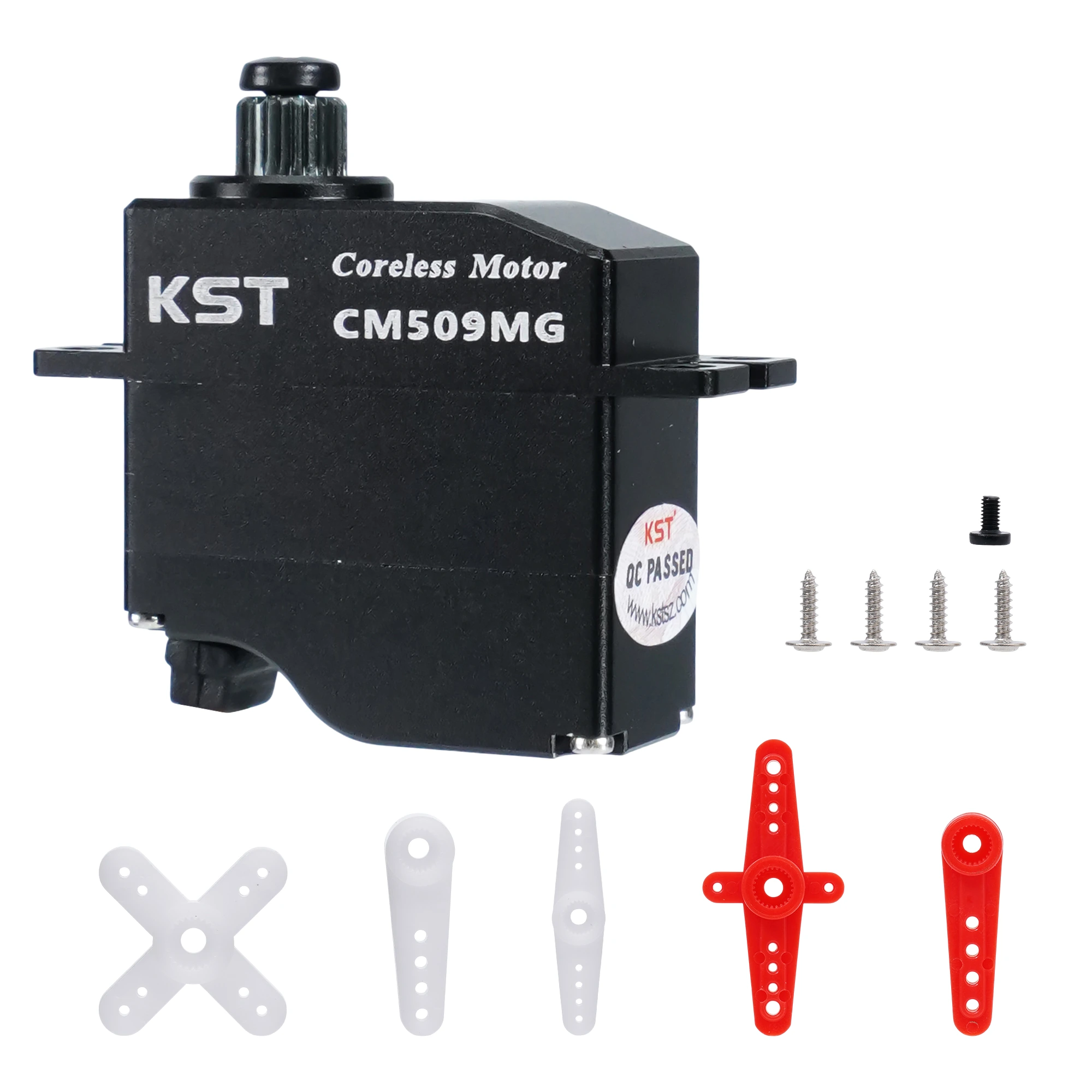

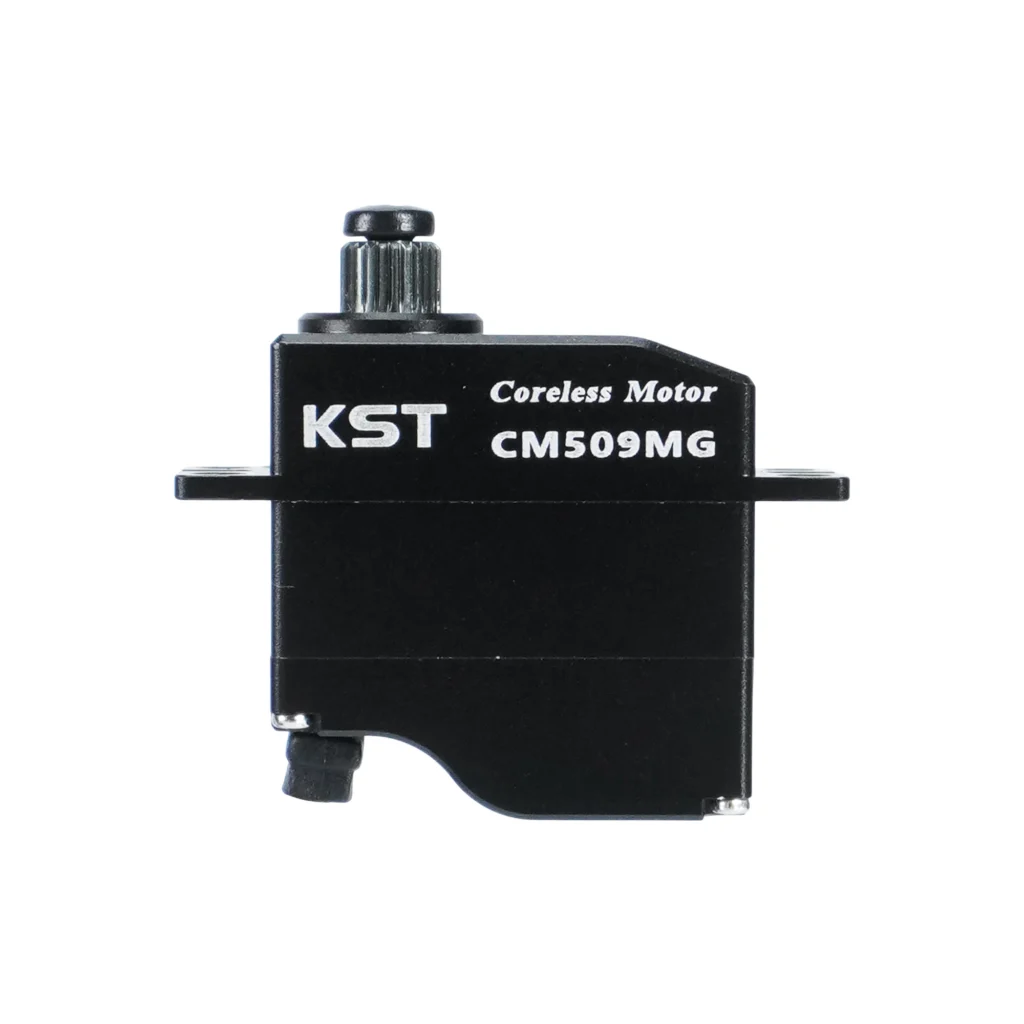

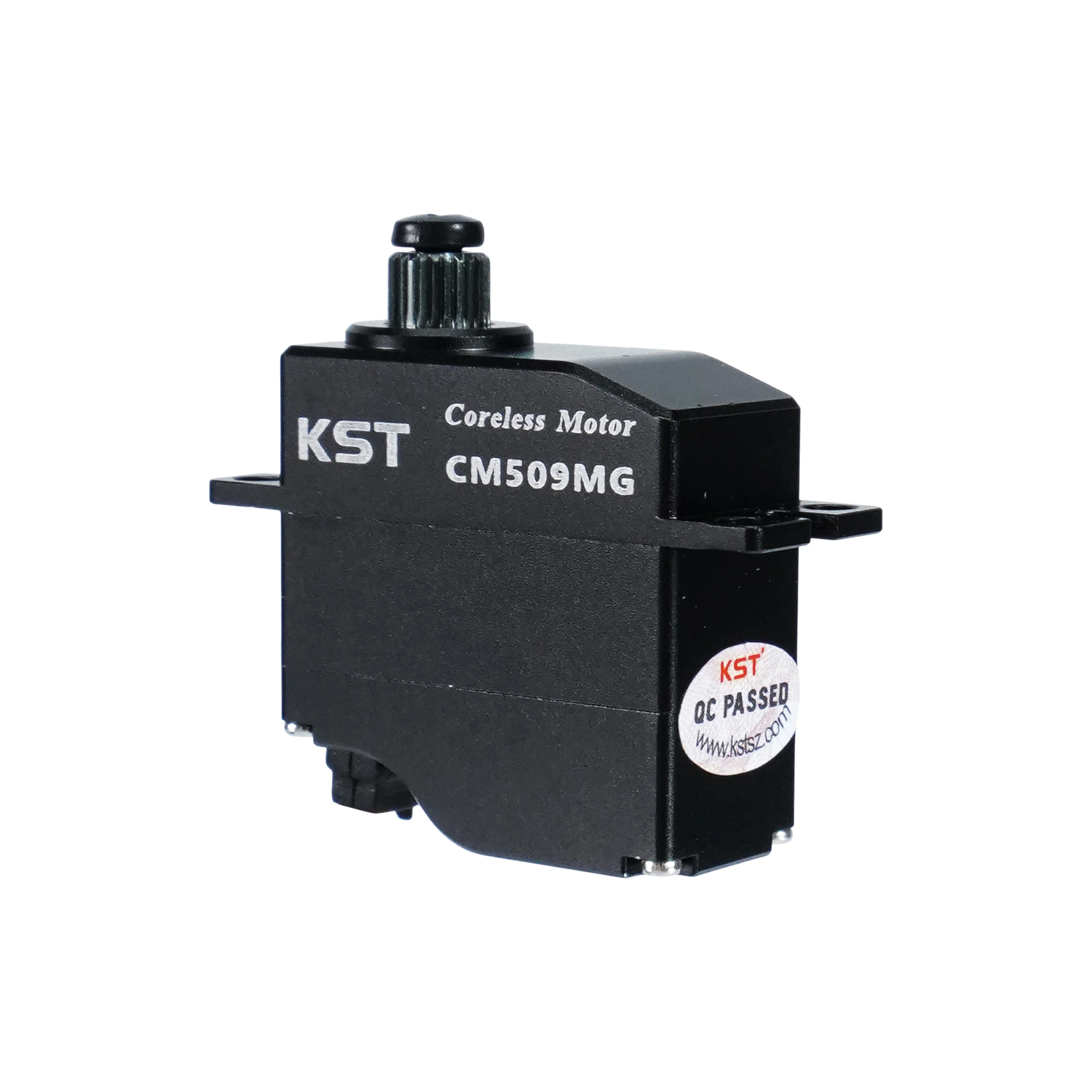

KST CM509MG Digital Servo
$38.40
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST CM509MG Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC4.8V-8.4V
- Torque: 3.6Kgf.cm@4.8V 4.8Kgf.cm@6.0V 5.5Kgf.cm@7.4V 6.0Kgf.cm@8.4V
- Speed: 0.13sec/ 60° @4.8V 0.11sec/ 60° @6.0V 0.09sec/ 60° @7.4V 0.08sec/ 60° @8.4V
- Motor: Coreless Motor Case Material Aluminum Alloy
- Gear set: Metal Gear
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Yes
Technical Specifications
| Rated voltage | DC7.4V |
|---|---|
| Operating voltage | DC4.8V-8.4V |
| Torque | 3.6Kgf.cm@4.8V 4.8Kgf.cm@6.0V 5.5Kgf.cm@7.4V 6.0Kgf.cm@8.4V |
| Speed | 0.13sec/ 60° @4.8V 0.11sec/ 60° @6.0V 0.09sec/ 60° @7.4V 0.08sec/ 60° @8.4V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±50° =100° Total |
| Operating temperature | -10℃……+65℃ |
| Soft start | Yes |
| Programmable | Yes |
| Motor type | Coreless Motor Case Material Aluminum Alloy |
| Gear material | Metal Gear |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 23*11*24mm±0.2mm |
| Weight | 15g±10% |
| Protocol / interface | PWM Command Interface |
