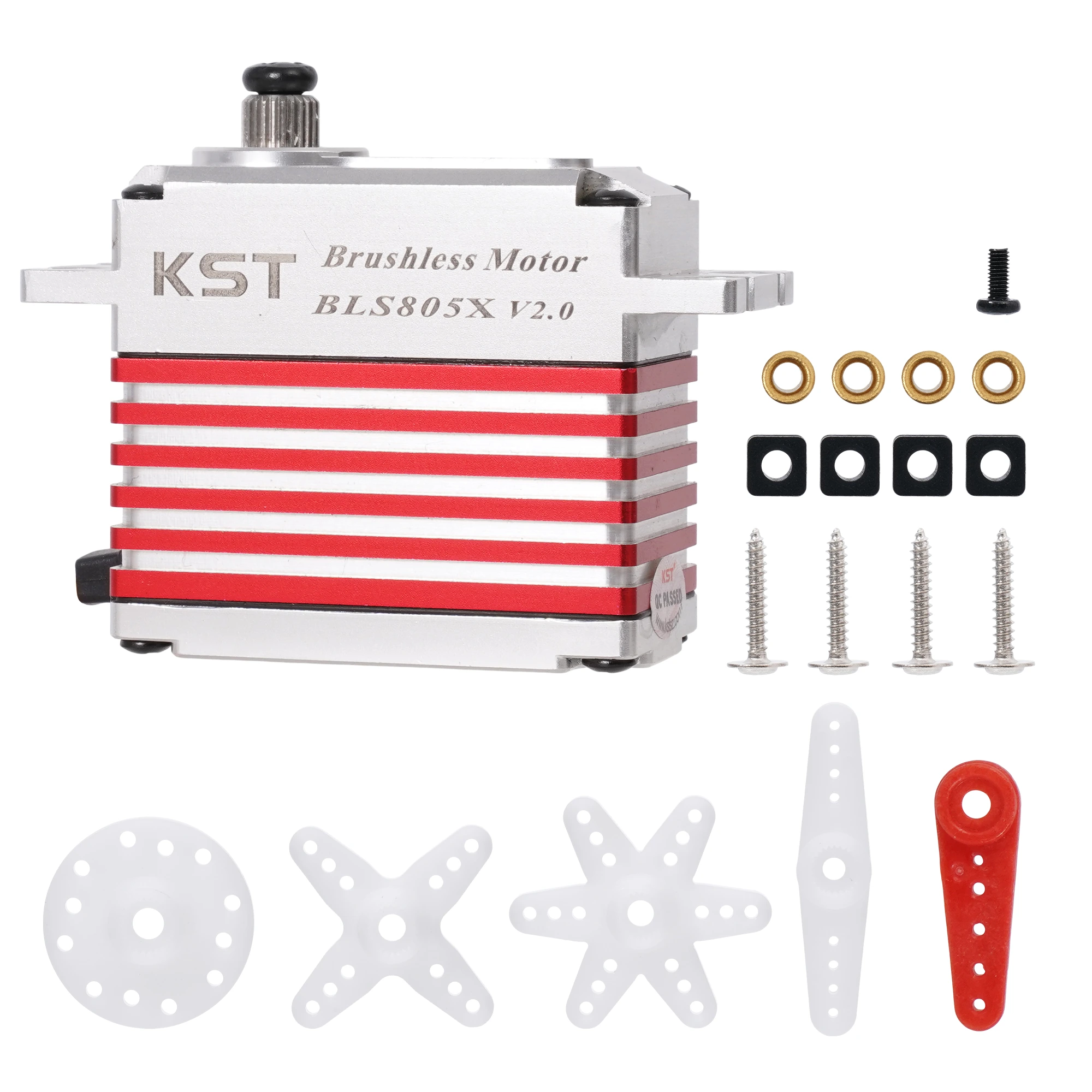

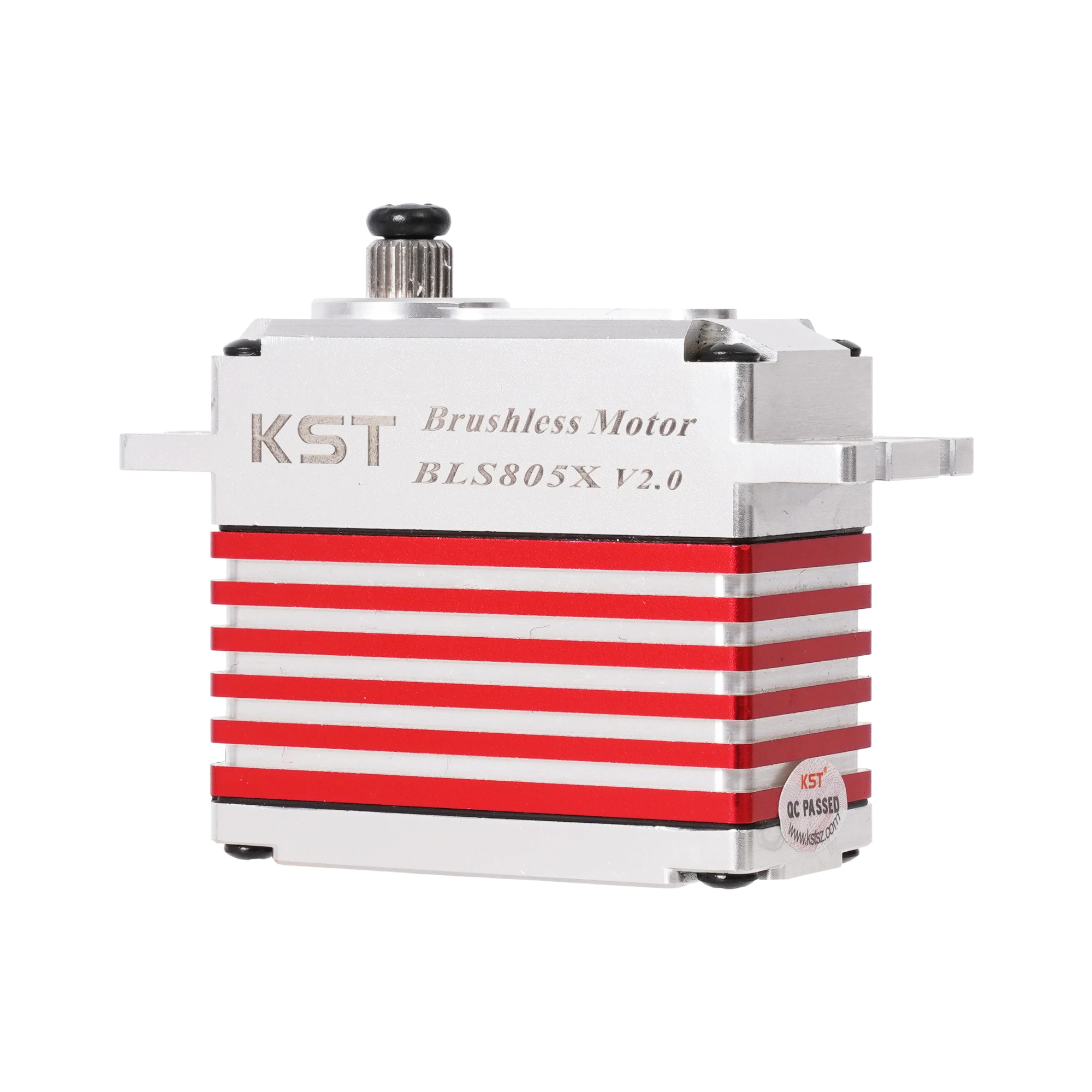

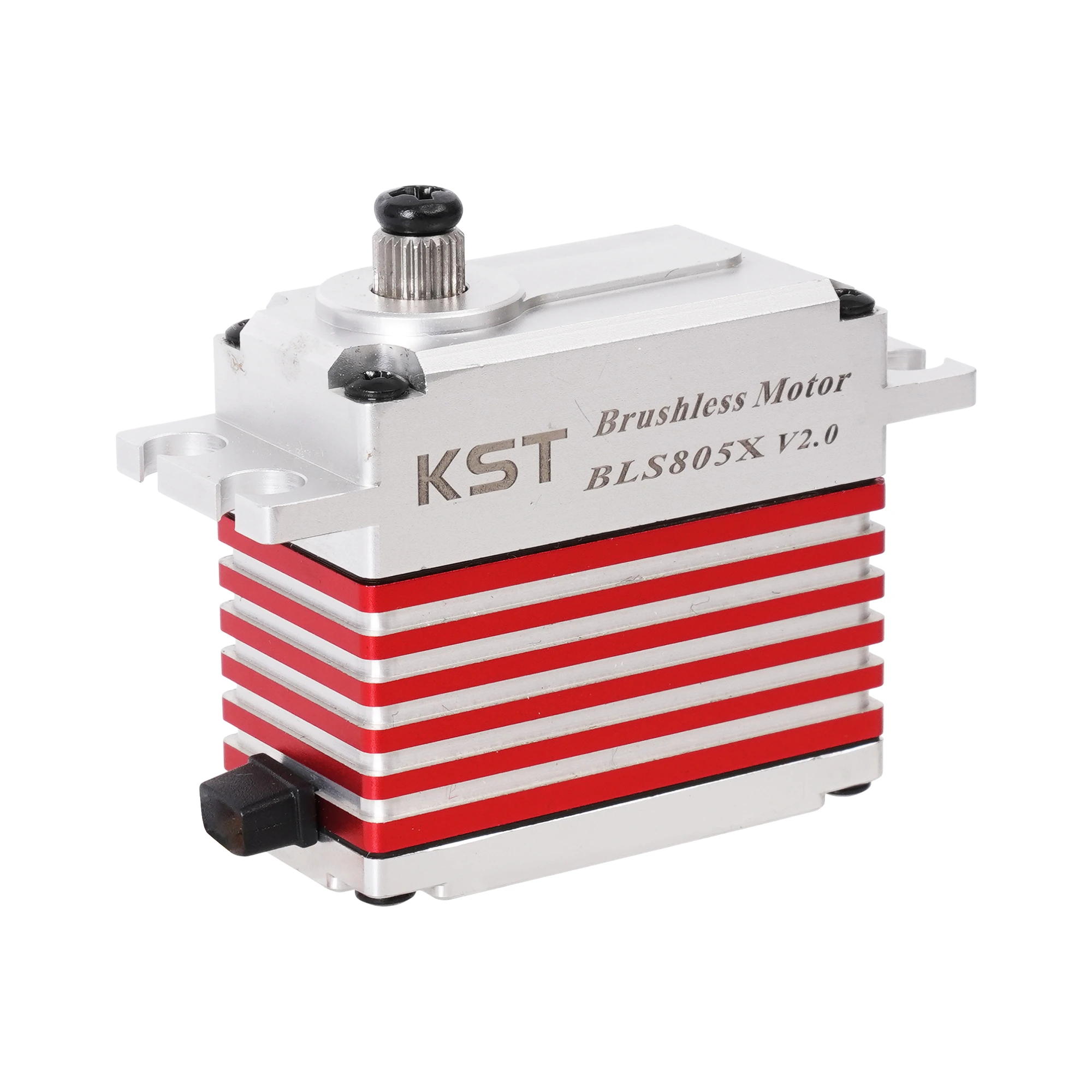

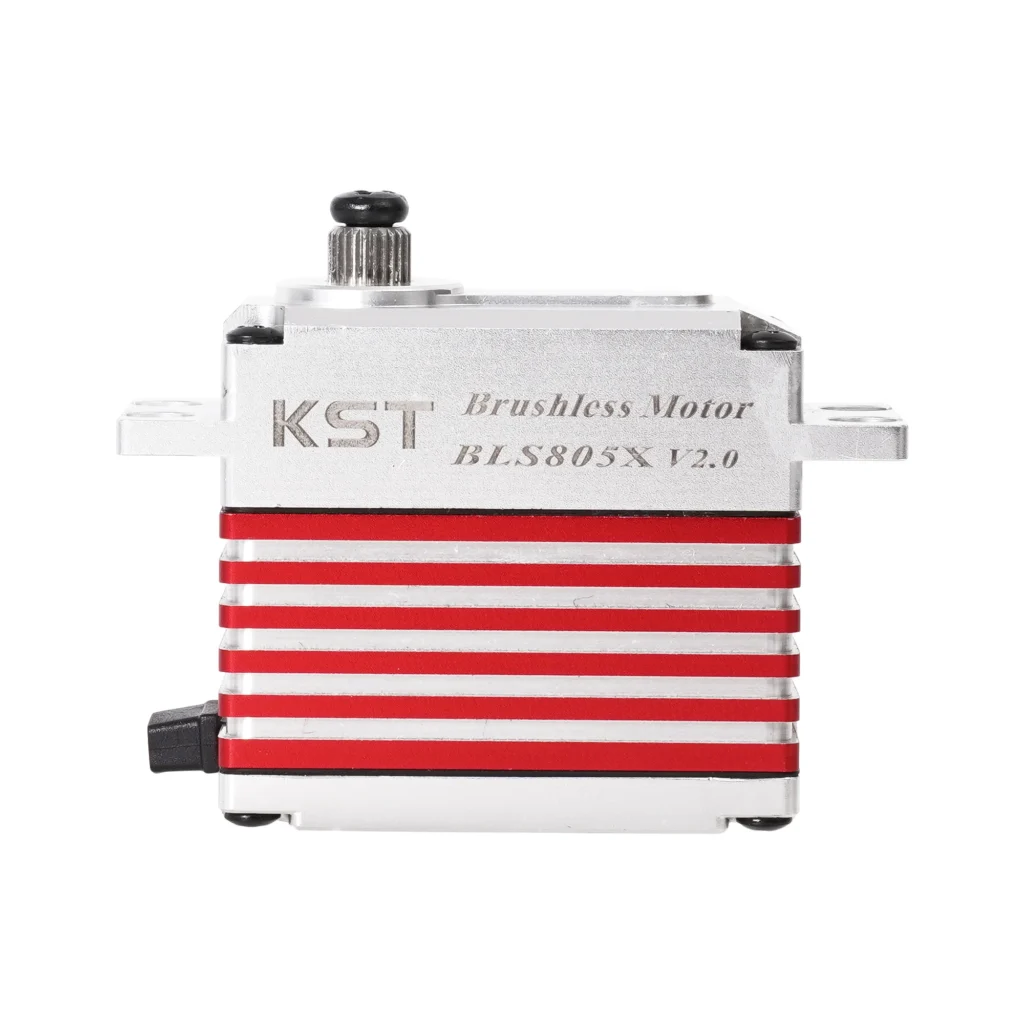

KST BLS805X Digital Servo
$78.00
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST BLS805X Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC6.0V-8.4V
- Torque: 5.5Kgf.cm@6.0V 6.5Kgf.cm@7.4V 7.5Kgf.cm@8.4V
- Speed: 0.048sec/60°@6.0V 0.042sec/60°@7.4V 0.039sec/60°@8.4V
- Motor: Brushless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
Technical Specifications
| Rated voltage | DC7.4V |
|---|---|
| Operating voltage | DC6.0V-8.4V |
| Torque | 5.5Kgf.cm@6.0V 6.5Kgf.cm@7.4V 7.5Kgf.cm@8.4V |
| Speed | 0.048sec/60°@6.0V 0.042sec/60°@7.4V 0.039sec/60°@8.4V |
| Working frequency | 760us/560Hz |
| Operating temperature | -20℃……+65℃ |
| Case material | Aluminum Alloy |
| Motor type | Brushless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Dimensions | 40.5*20*38mm±0.2mm Ball Bearing 2 BB |
| Weight | 70g±10% |
| Protocol / interface | PWM Command Interface |
