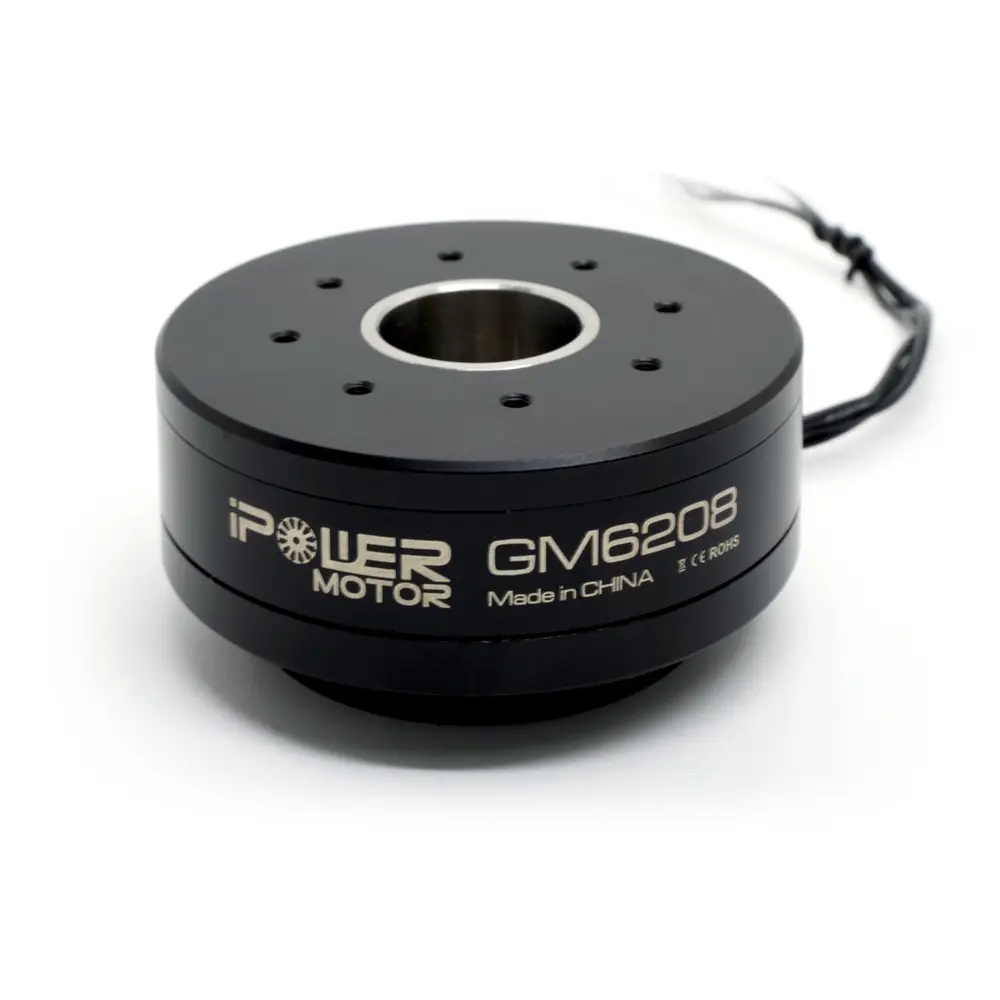

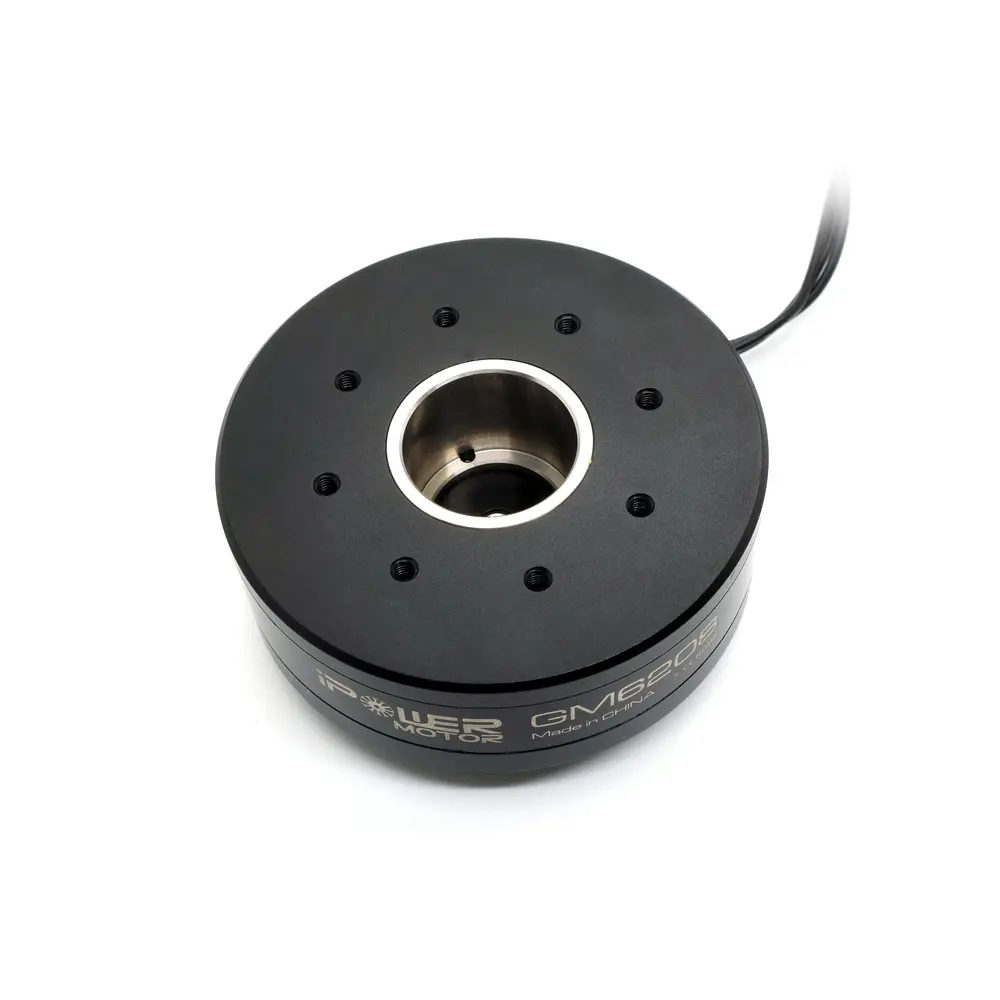

GM6208

Features:

• Sealed housing to prevent contamination from dust and dirt
• Hollow shaft size 22mm for slip ring or wiring

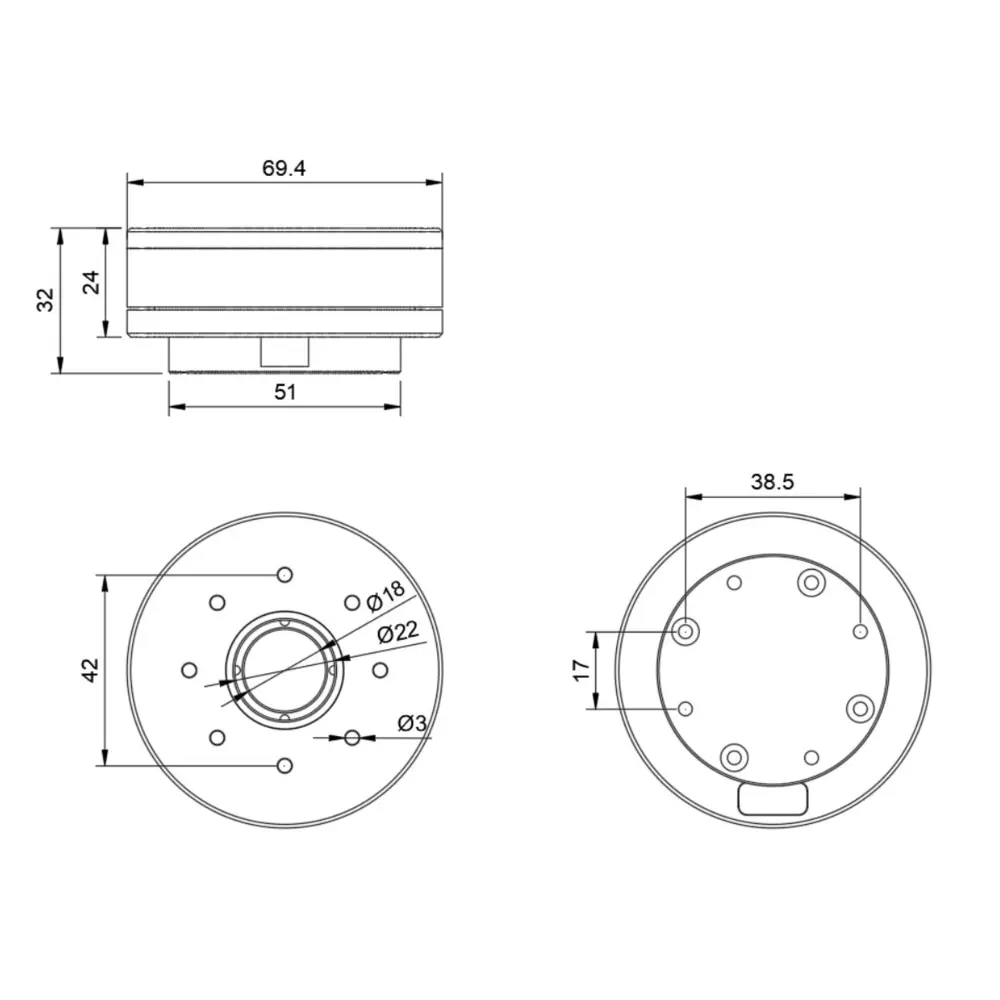

• Built-in AS5048L encoder with SPI and PWM connectivity (encoder version only)

Specifications:

• Copper wire (OD) 0.21mm, pre-wound 150 turns.
• Interfacial resistance 32.6 Ohm
• Motor dimensions 69.5mm (outer diameter) × 32mm (height)

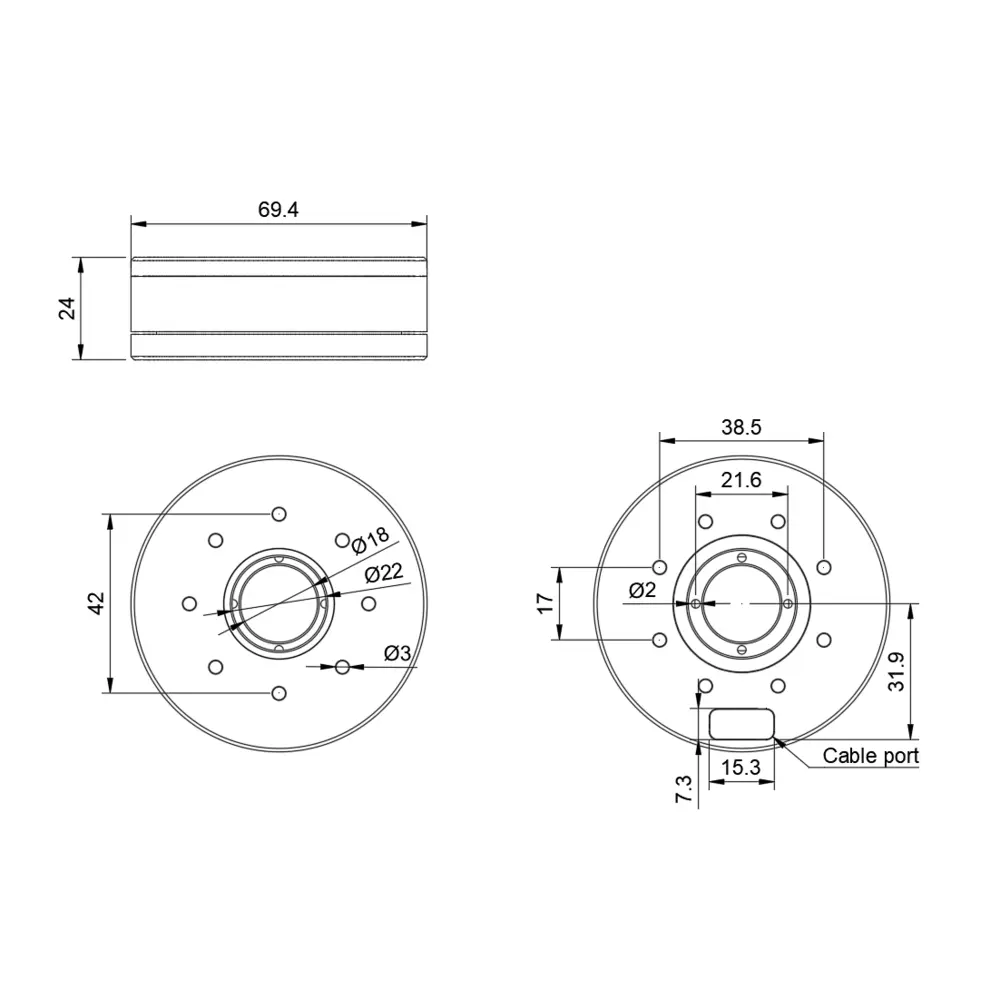

• Mounting holes – please refer to the drawing
• Hollow shaft diameter (inner) 22 mm
• Configuration 24N28P
• Camera weight 2600-3600 grams (powered by 6S battery)
