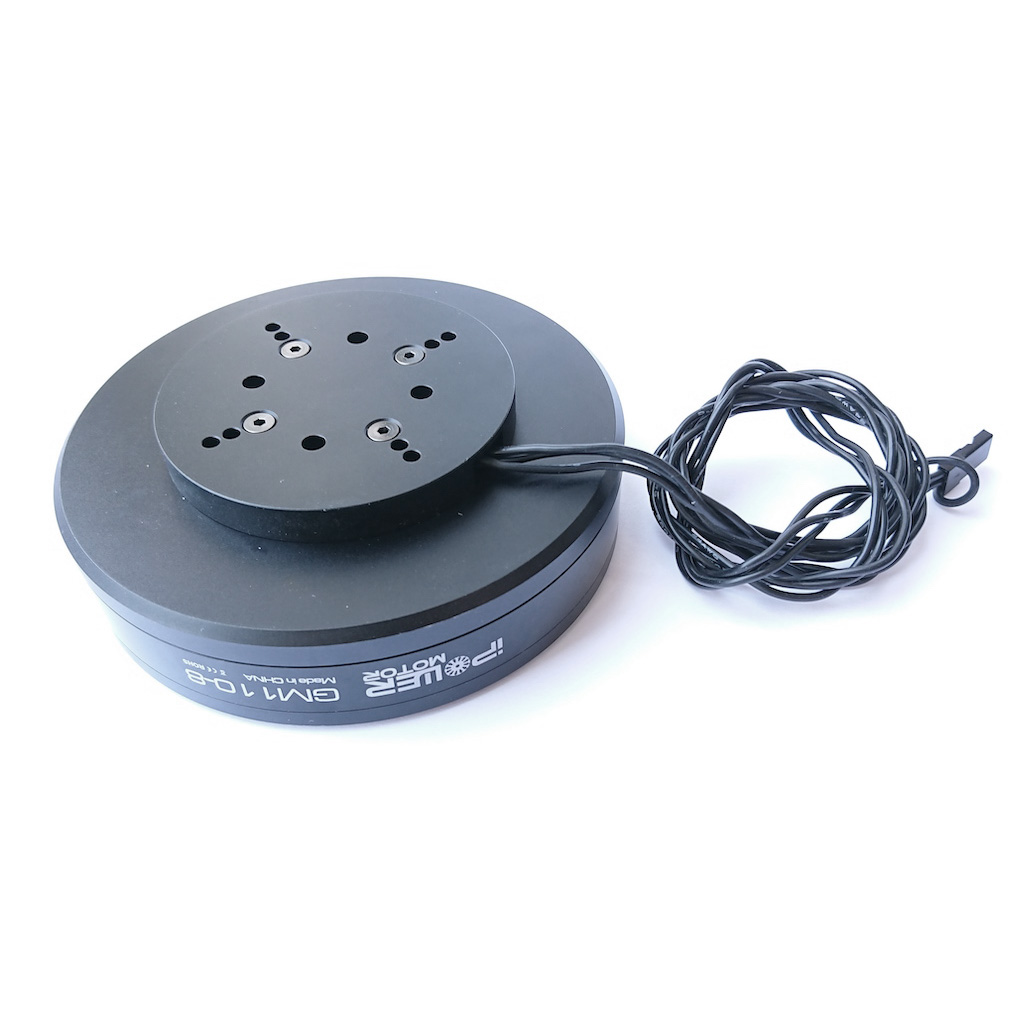

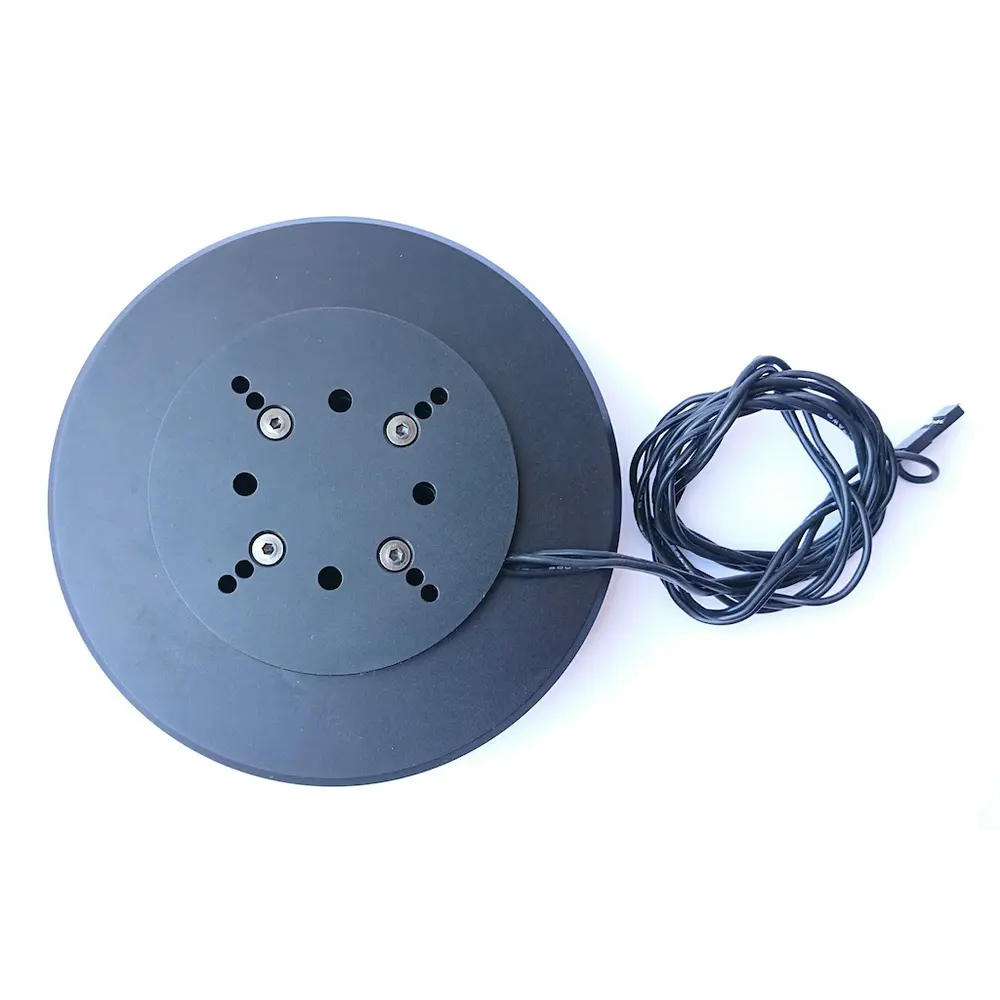

GM110-150T with Encoders

Price range: $477.70 through $477.71

* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.

Clear
SKU N/A Category Brand:

Specification

  • Copper wire (OD) 0.32 mm, Pre-wound with 150 turns.
  • Interfacial resistance 17.2 Ohms
  • Motor Dimension 110 mm (OD) × 34 mm (Height)
  • Stator Dimension 100 mm (OD) × 16 mm (Height)

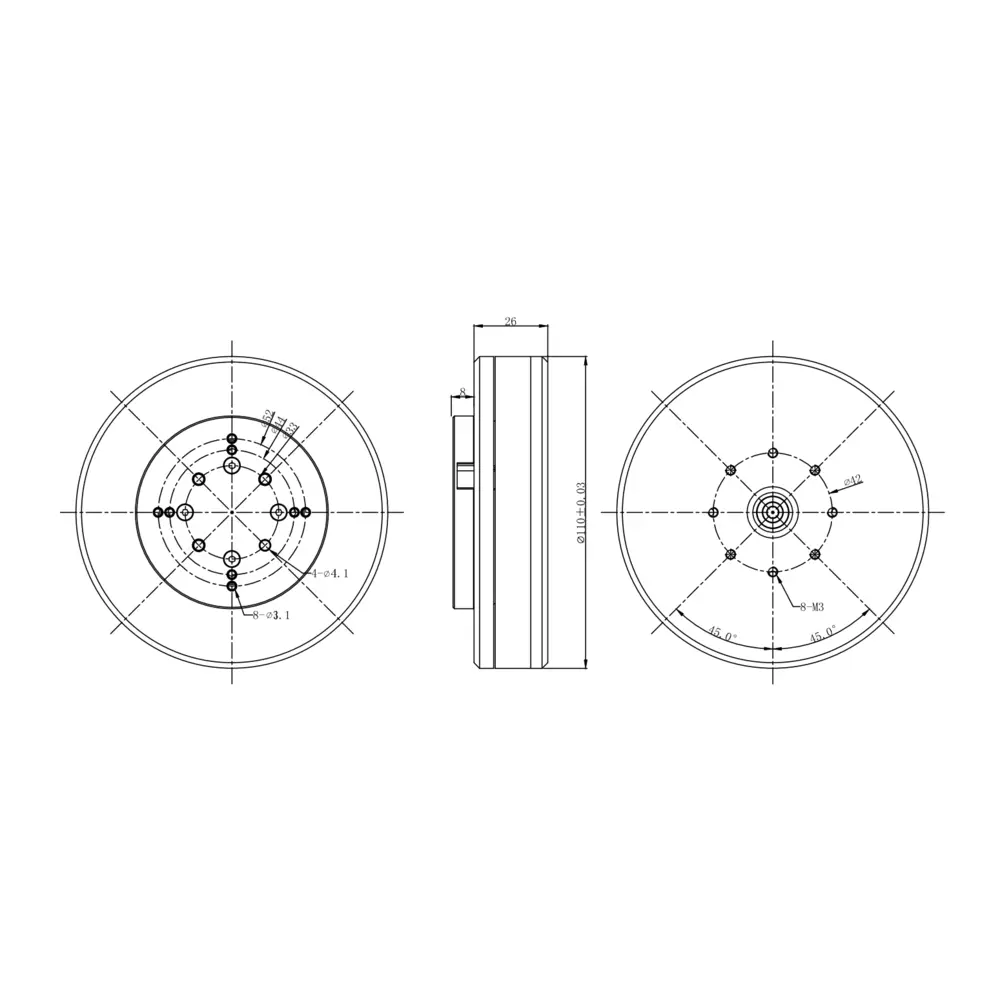

  • Mounting holes — see drawing
  • Hollow Shaft Diameter (internal) 12.6 mm, narrowed to 6 mm at the magnet mounting place
  • Configuration 24N28P
  • Wire length: 450 mm including JR plug
  • Camera weight 5—8 kg
  • Magnet type: Spare, rare-earth

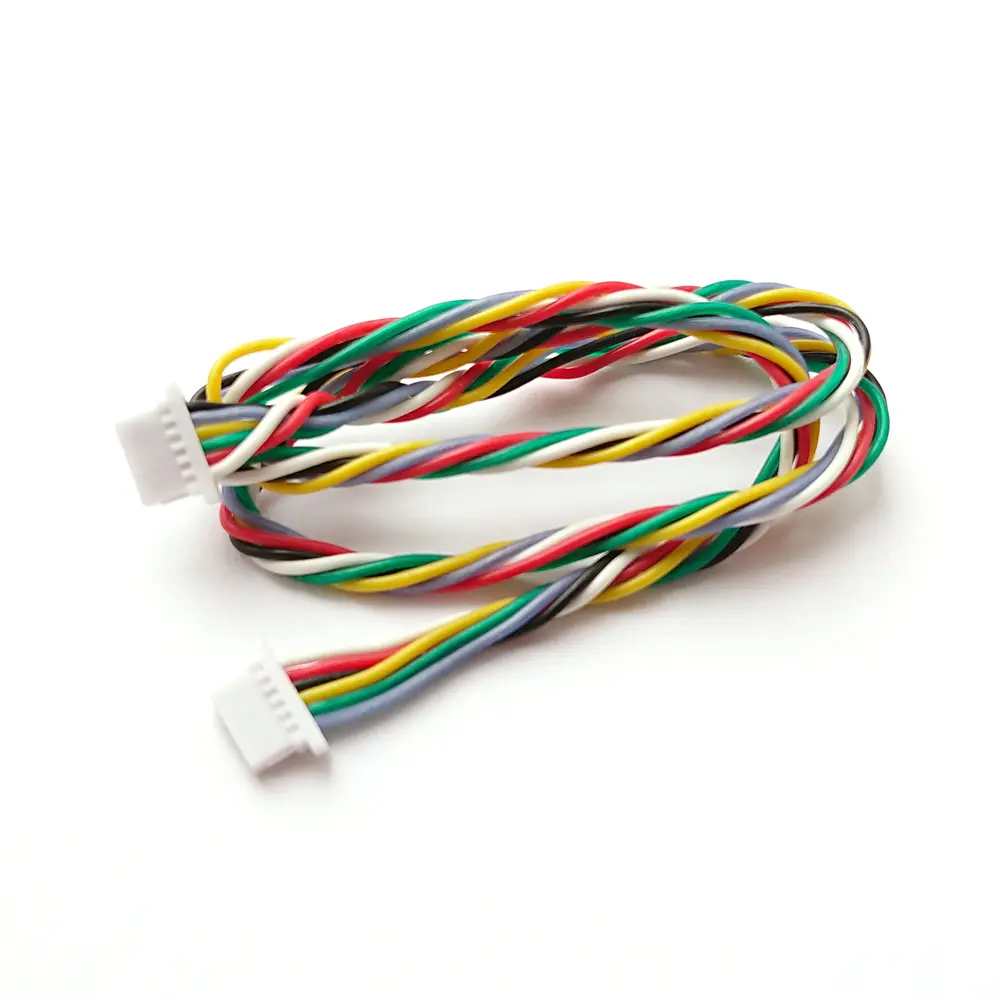

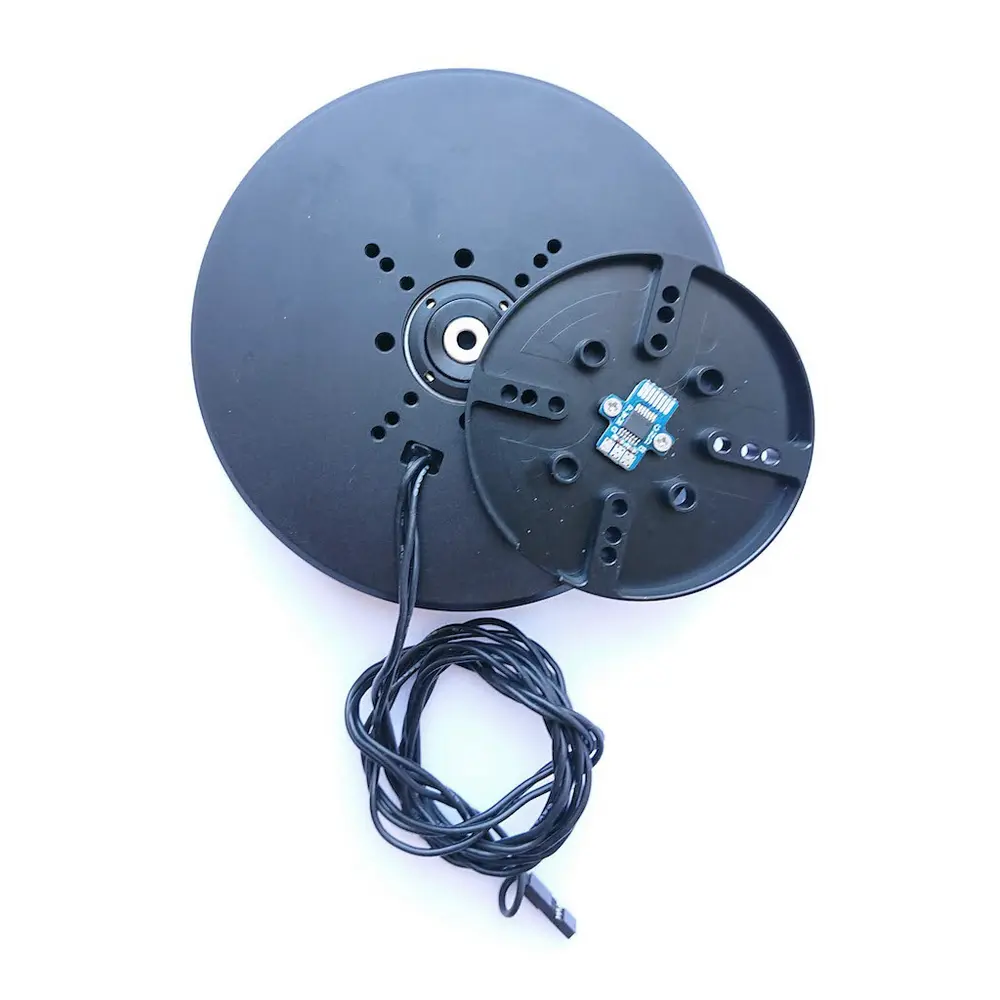

  • Encoder SPI cable included

Connection

To connect encoder to the “Extended” board you need to fix the cable — exchange pins in connector as shown on the picture.
