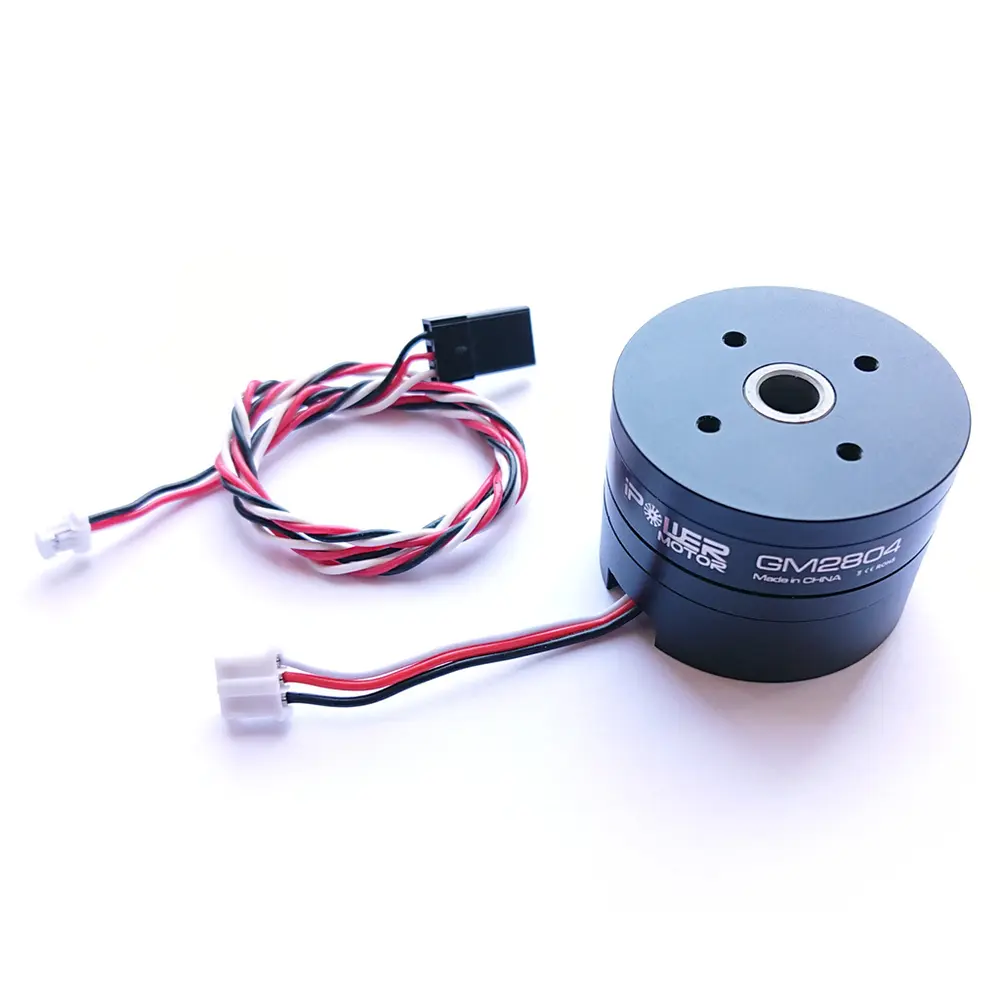

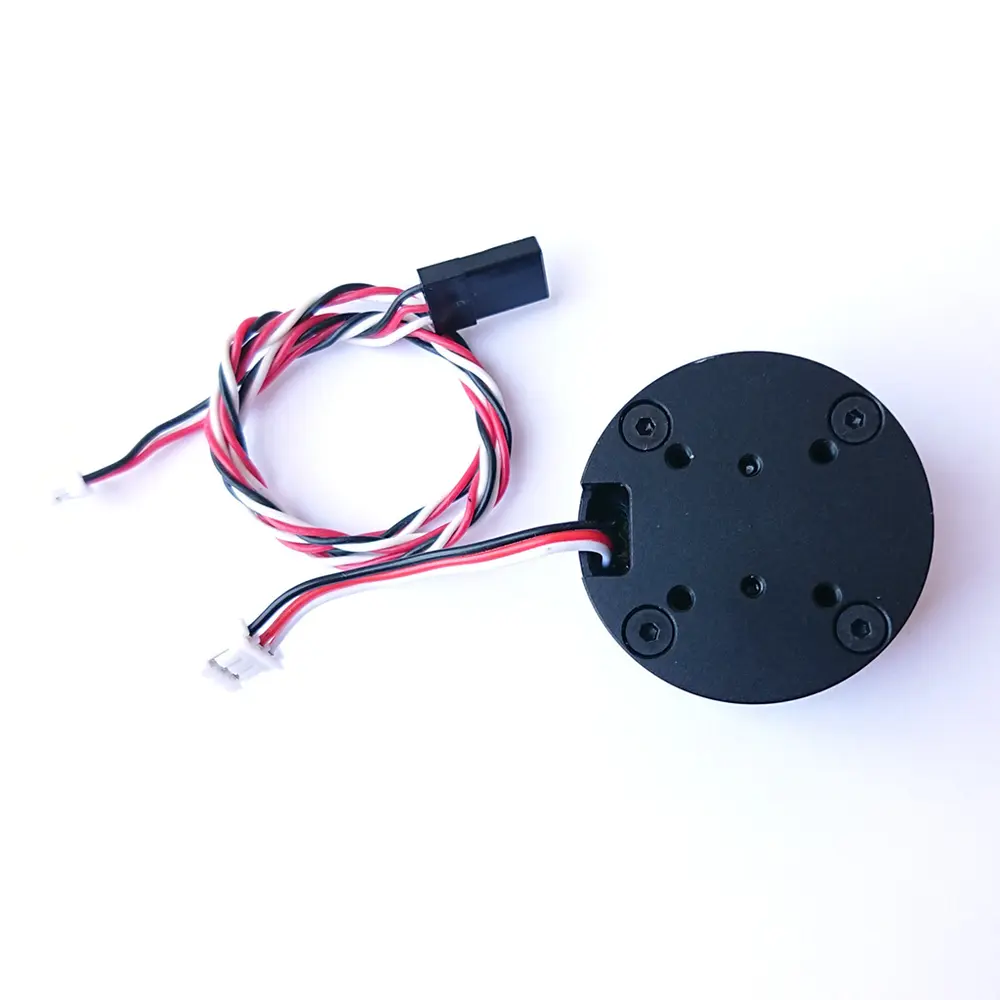

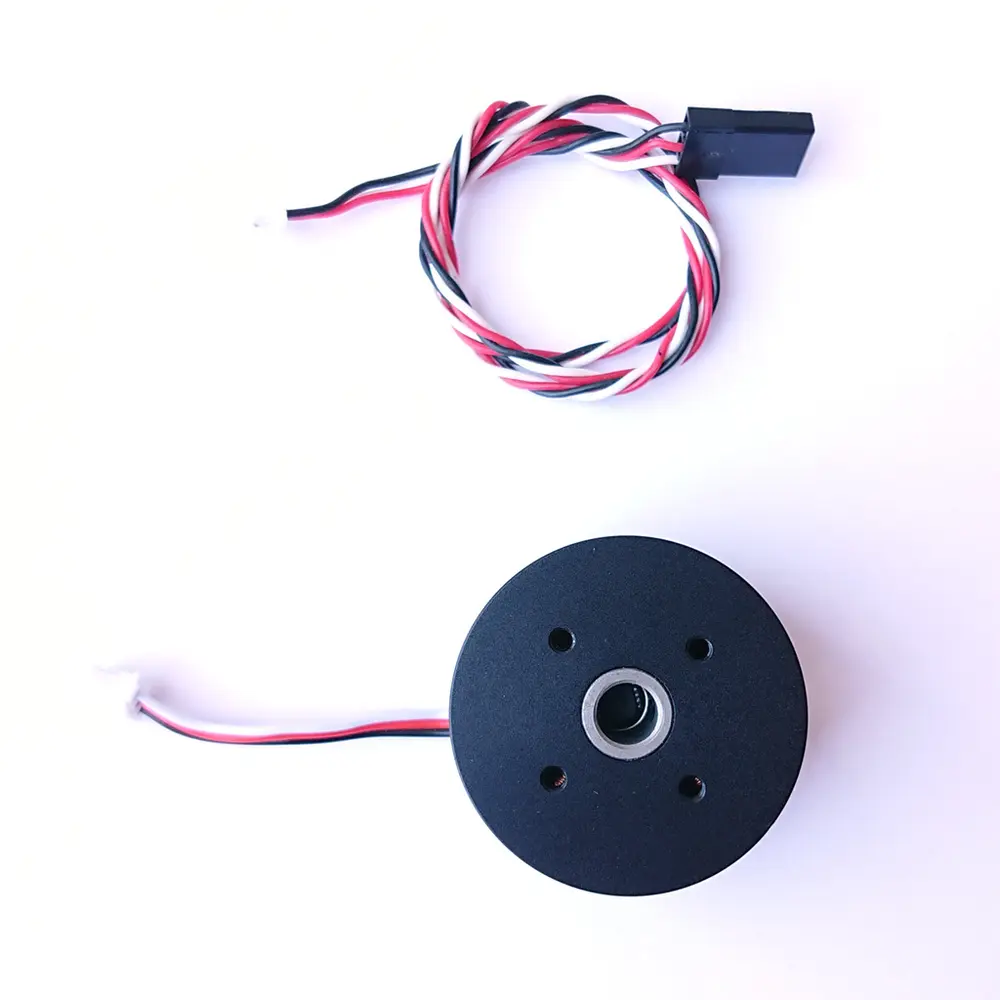

GBM2804H-100T with Encoders
$82.33 – $103.24
Connection
To connect encoder to the “Extended” board you need to fix the cable — exchange pins in connector as shown on the picture.
Specification
- Motor Dimension 35 mm (OD) × 25 mm (Height)
- Stator Dimension 35 mm (OD) × 14 mm (Height)
- Interfacial resistance 9.2 Ohms

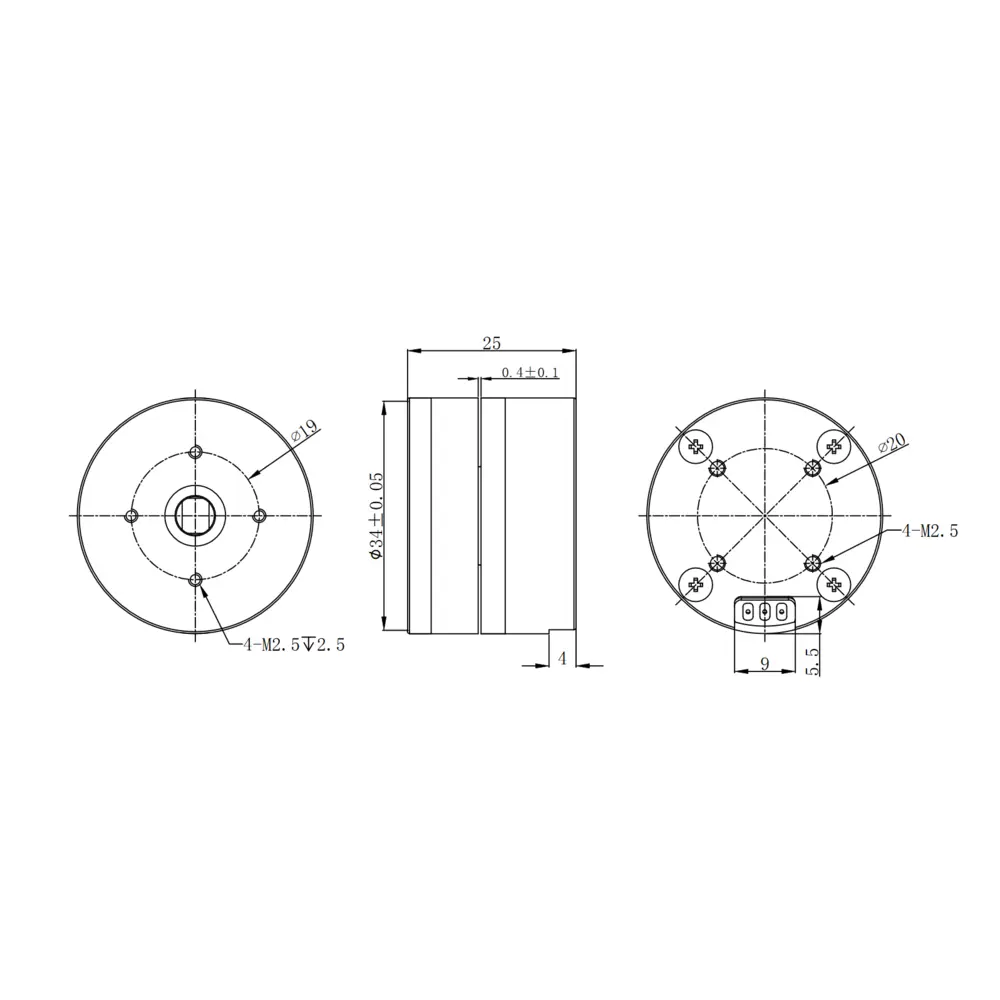

- Mounting holes — see drawing
- Hollow Shaft Diameter (internal) 6 mm, hole in encoder magnet 5.6 mm
- Configuration 12N14P
- Wire length: 40 mm
- Camera weight 150–500 gr
- Magnet type: O-ring, magnet
- Encoder SPI cable included
Additional information
| Encoder type: | AS5048A, AS5048B |
|---|
