Radio Telemetry 915Mhz
Original price was: $70.09.$28.04Current price is: $28.04.

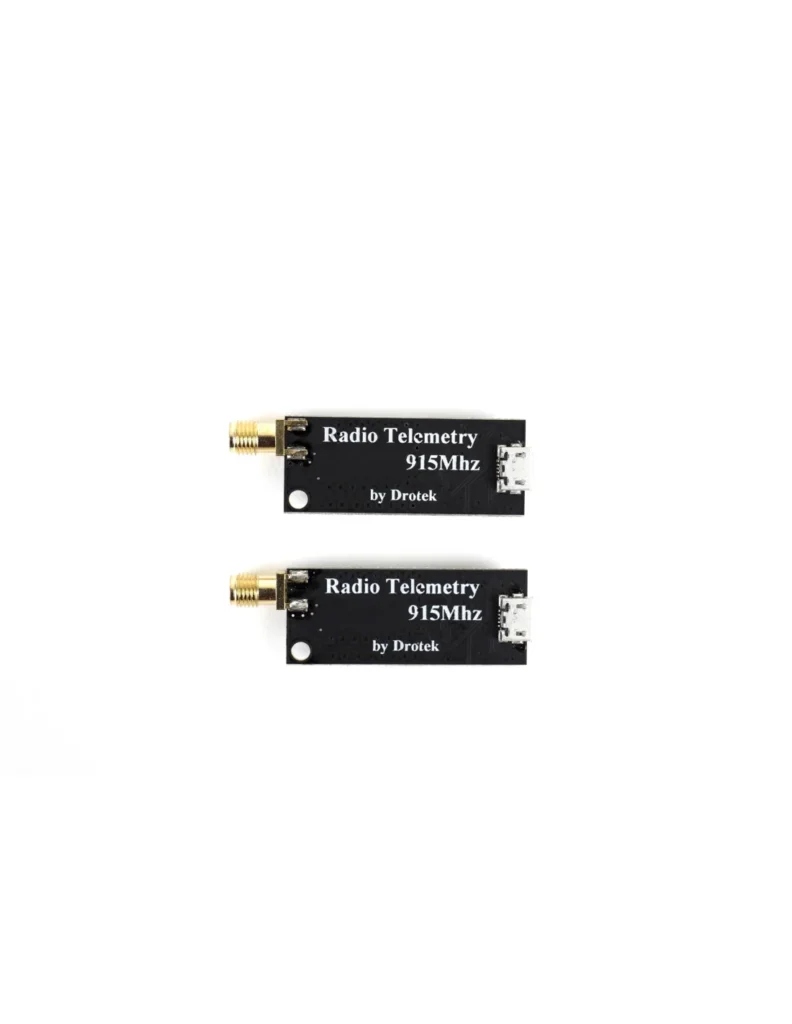

The Drotek Radio Telemetry (915Mhz) is a 3DR Radio system 100% compatible. Designed as an open-source Xbee replacement radio set, it offers a longer range (approx one mile) and superior performance to Xbee radios, for a lower price.
The Drotek Radio Telemetry (915Mhz) is a 3DR Radio system 100% compatible. Designed as an open source Xbee replacement radio set, it offers longer range (approx one mile) and superior performance to Xbee radios, for a lower price.
The Drotek telemetry system base on 3DR Radio system and 100% compatible. Designed as an open source Xbee replacement radio set, offering a lower price, longer range (approx one mile) and superior performance to Xbee radios. The Drotek Radio Telemetry Kit provides a full-duplex link using HopeRF’s HM-TRP modules running custom, open source firmware.
Package content:
- Radio telemetry x2
- JST-GH cable x2
The Drotek Radio Telemetry Kit 915Mhz is following configurations: serial board (for the air) and USB (for the ground). Interface to the module is via standard 5V-tolerant TTL serial / FTDI USB serial. Firmware upgrades and configuration are fully supported in the APM Mission Planner.
Configuration is also possible through the 3DR Radio configurator and AT commands.
Warning: Frequency/power level regulations vary by country, so consult your local airspace authority to find out which frequency and power level are legal in your area. In Europe you should use the 433 MHz

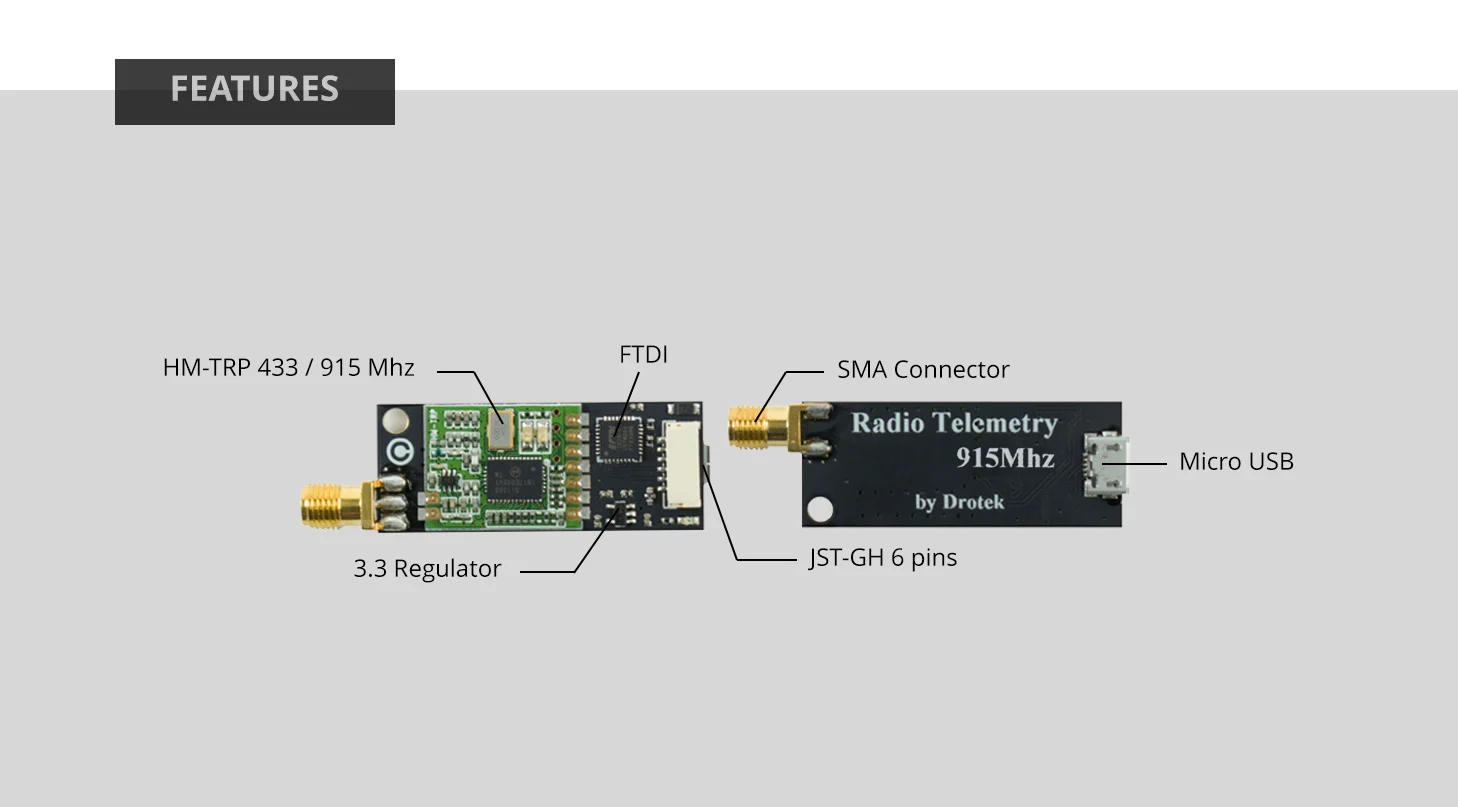

Features:
- Small size and light weight
- Receiver sensitivity to -121 dBm
- Transmit power up to 20dBm (100mW)
- Transparent serial link Air data rates up to 250kbps
- MAVLink protocol framing and status reporting
- Frequency hopping spread spectrum (FHSS)
- Adaptive time division multiplexing (TDM)
- Configurable duty cycle
- Built in error correcting code (can correct up to 25% data bit errors)
- Demonstrated range of several kilometers with a small omni antenna
- Can be used with a bi-directional amplifier for even more range
- Open source firmware
- AT commands for radio configuration
- RT commands for remote radio configuration
- Based on the HopeRF HM-TRP radio module, with an SiLabs Si1000 RF microcontroller Transmit current: 100 mA at 20 dBm Receive current: 25 mA
This package includes :
2x Telemetry Module
2x JST-GH 6 Pins cable
