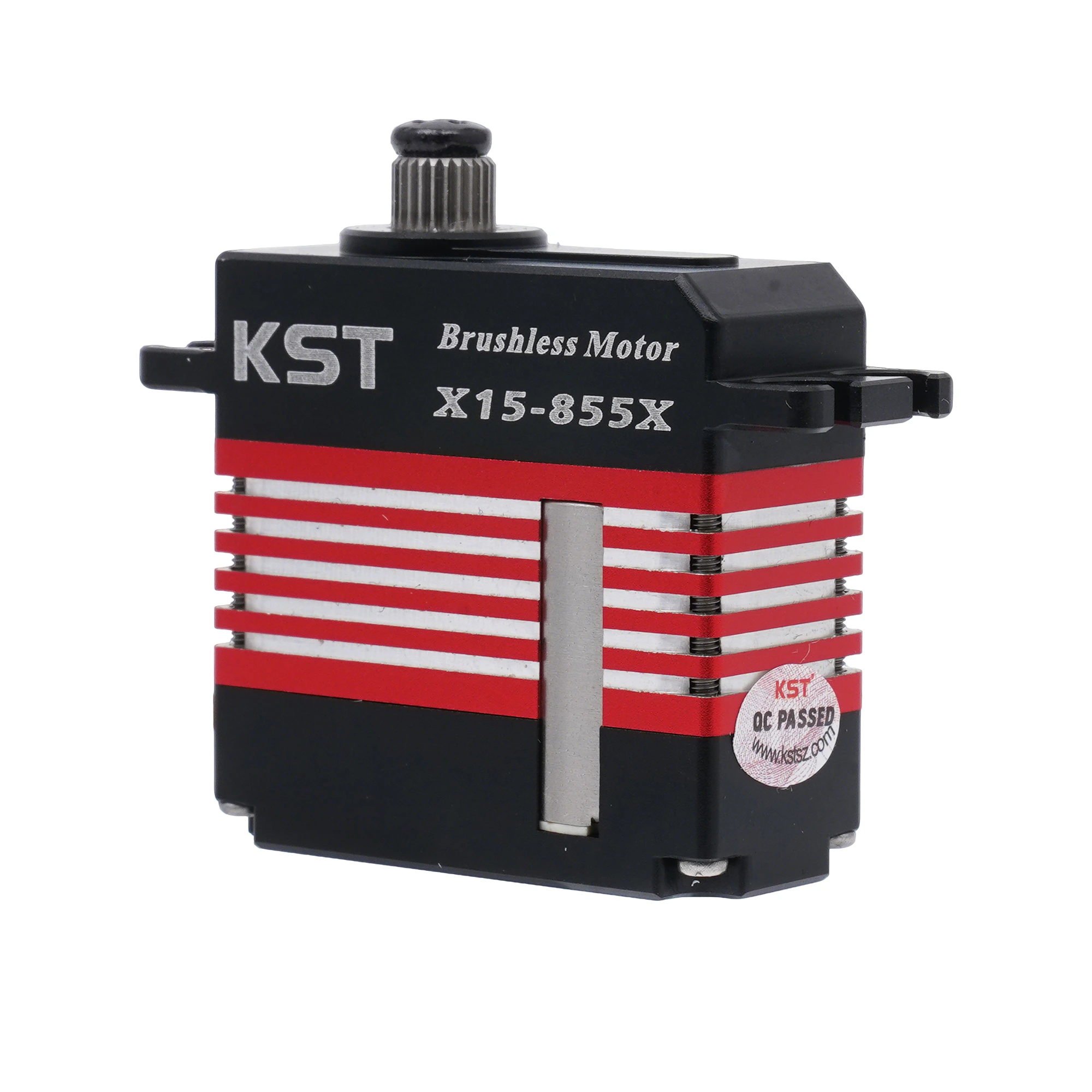

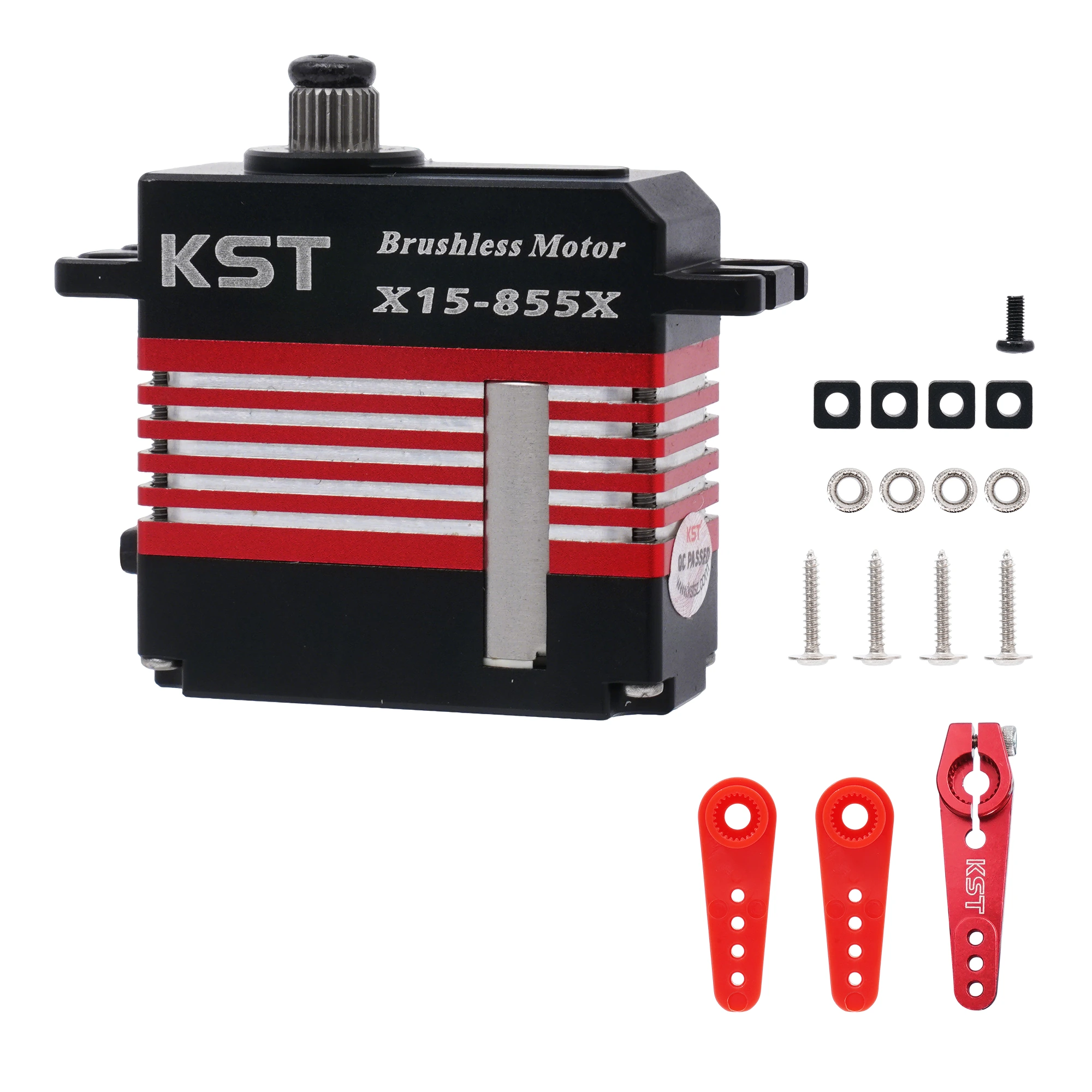

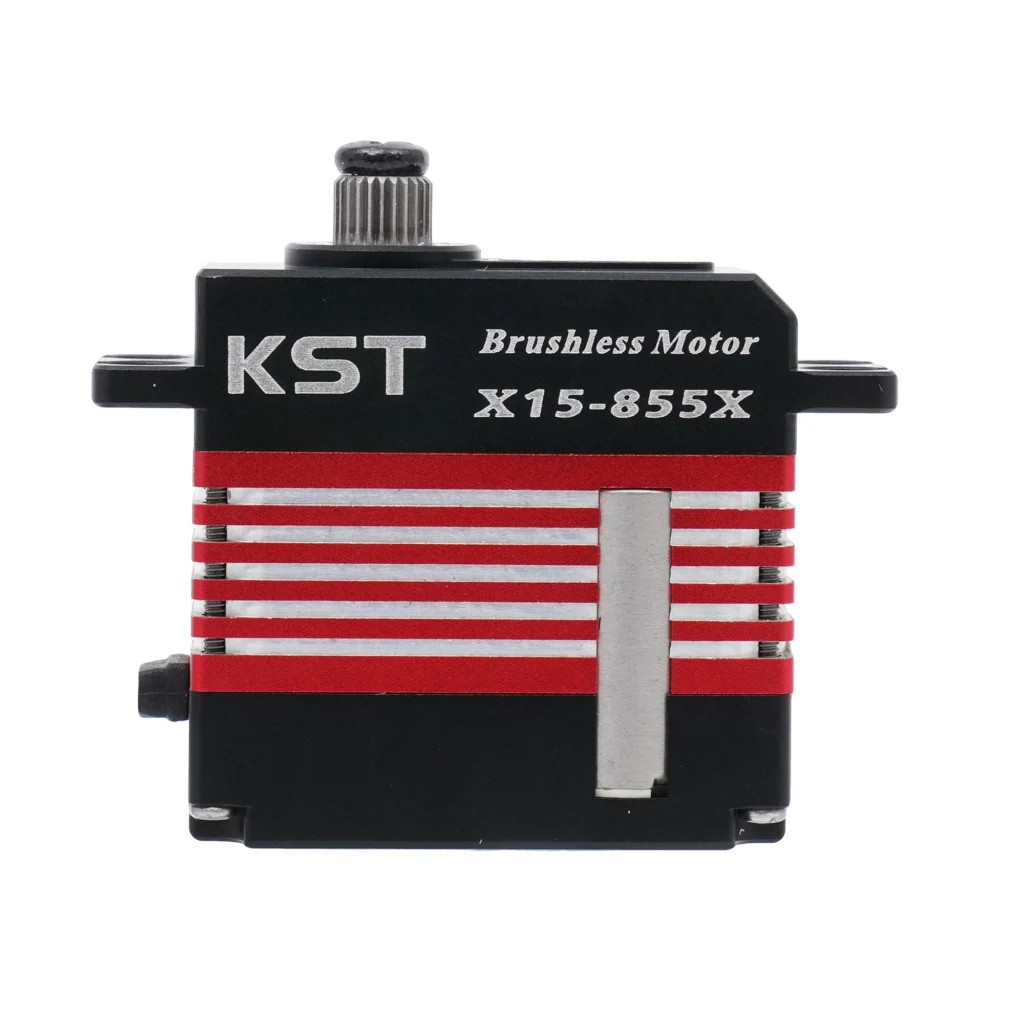

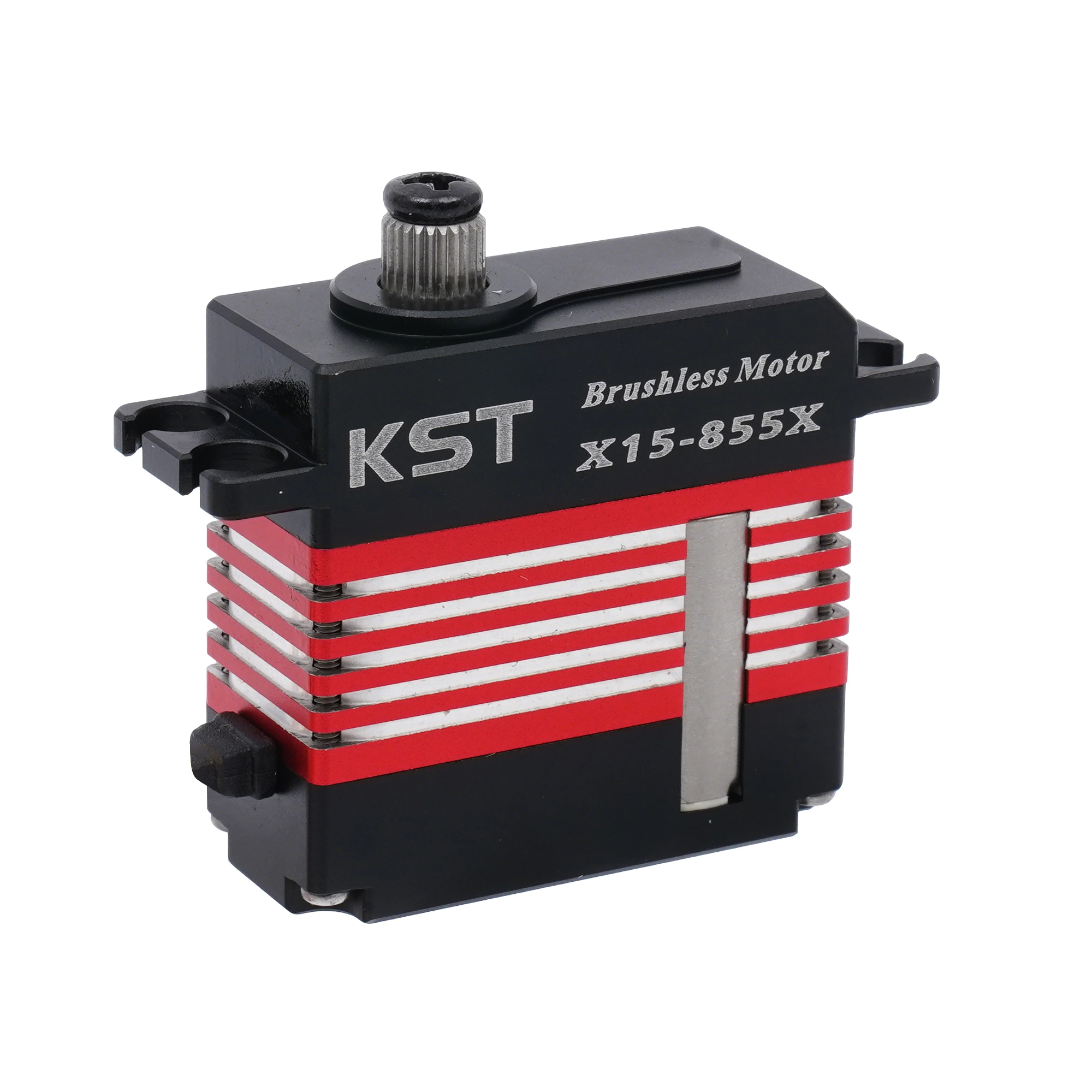

KST X15-855X Digital Servo
82,00 €
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST X15-855X Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC6.0V-8.4V
- Torque: 10Kgf.cm@6.0V 13Kgf.cm@7.4V 15Kgf.cm@8.4V
- Speed: 0.07sec/ 60° @6.0V 0.06sec/ 60° @7.4V 0.05sec/ 60° @8.4V
- Motor: Brushless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
Technical Specifications
| Rated voltage | DC7.4V |
|---|---|
| Operating voltage | DC6.0V-8.4V |
| Torque | 10Kgf.cm@6.0V 13Kgf.cm@7.4V 15Kgf.cm@8.4V |
| Speed | 0.07sec/ 60° @6.0V 0.06sec/ 60° @7.4V 0.05sec/ 60° @8.4V |
| Working frequency | 760us/ 560Hz |
| Operating temperature | -20℃……+65℃ |
| Case material | Aluminum Alloy |
| Motor type | Brushless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 35.5*15*35.5mm±0.2mm |
| Weight | 45g±10% |
| Protocol / interface | PWM Command Interface |
