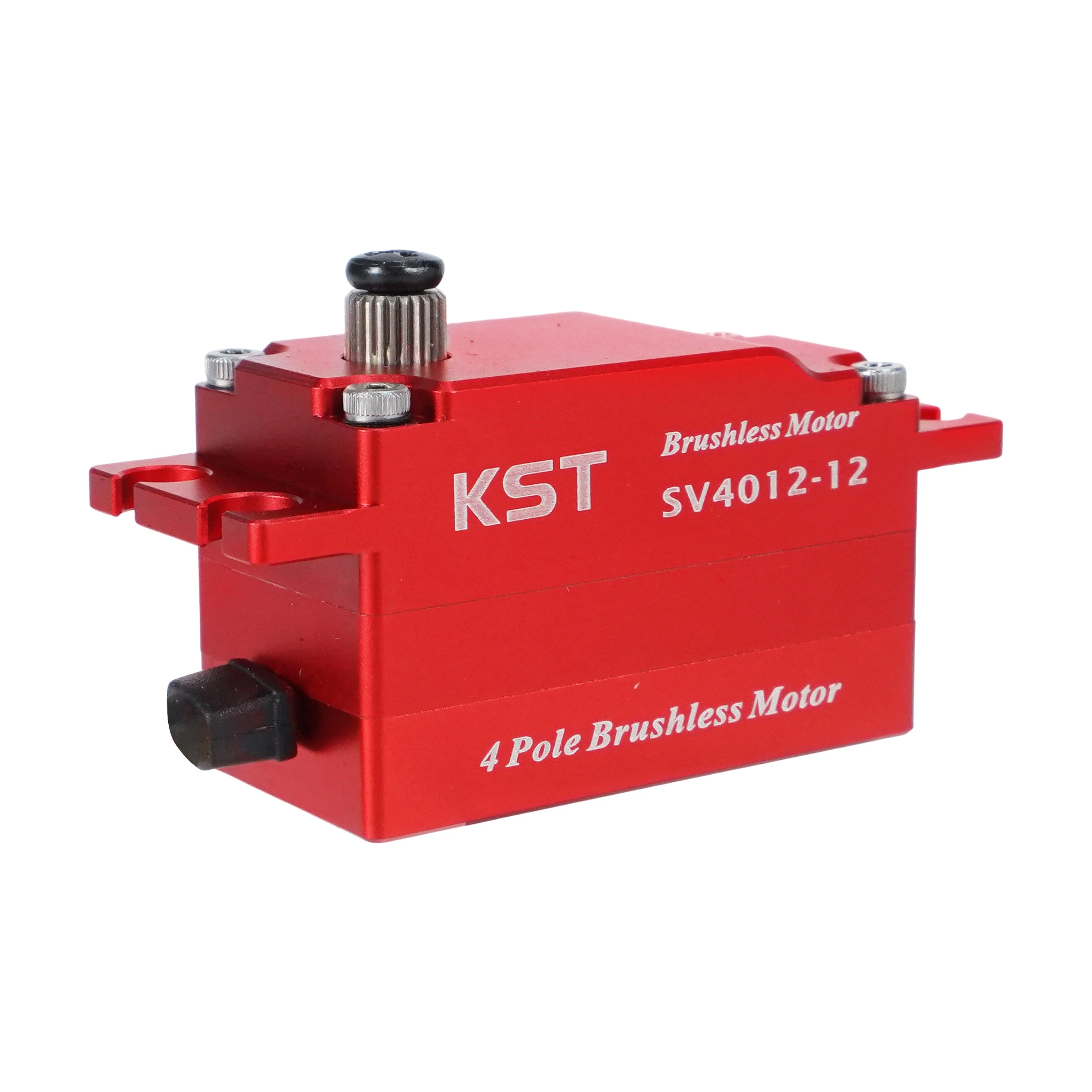

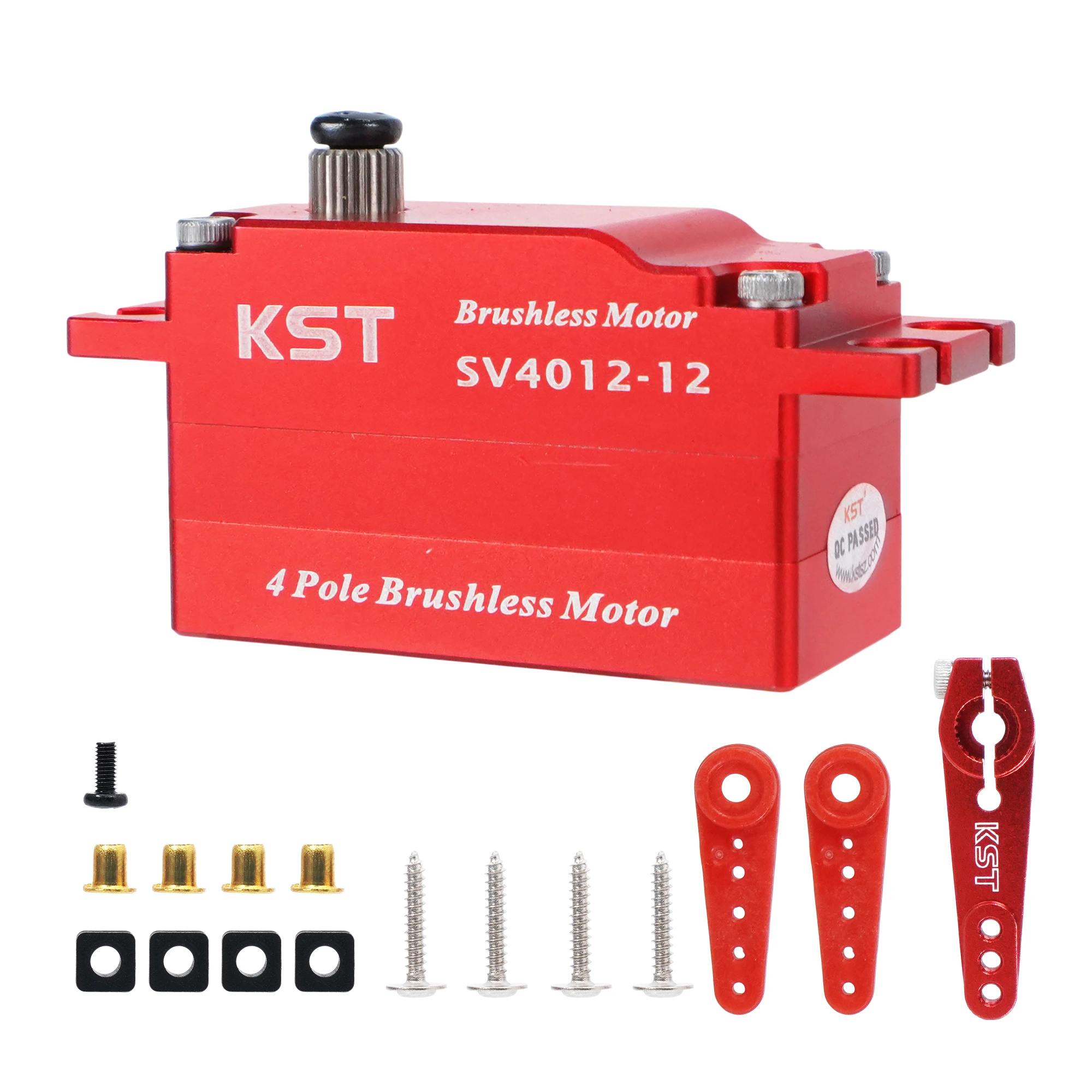

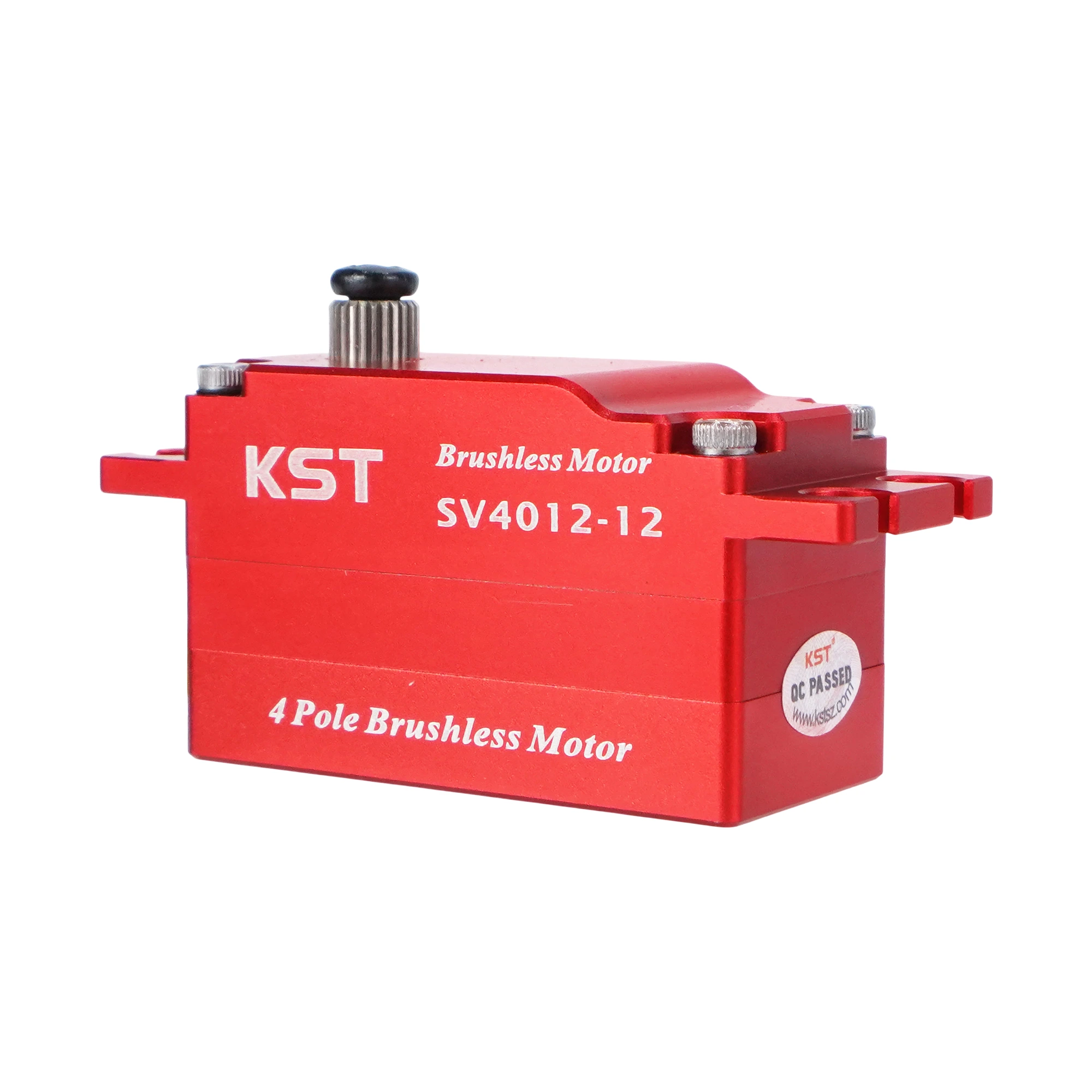

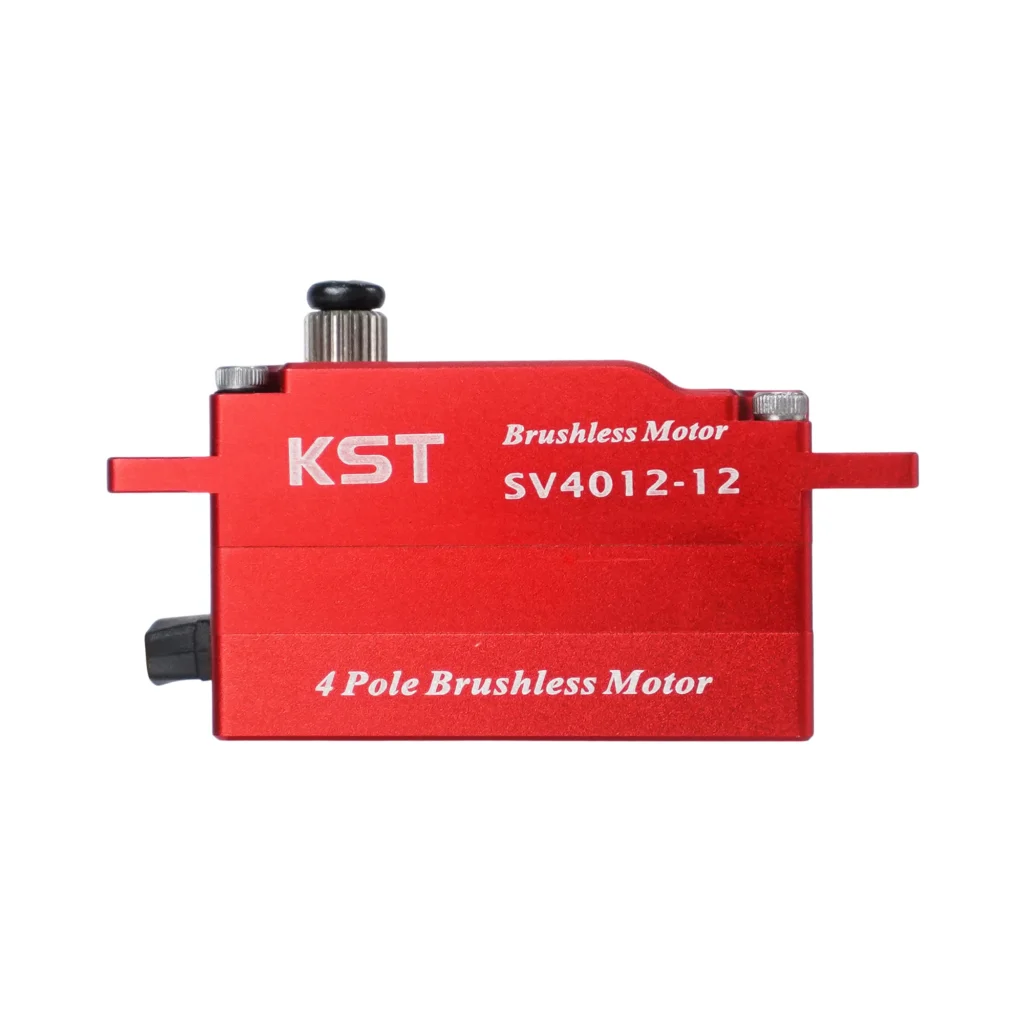

KST SV4012-12 Digital Servo
$130.80
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST SV4012-12 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC8.40V-13.0V
- Torque: 35.0Kgf.cm@8.40V 40.0Kgf.cm@12.0V 42.0Kgf.cm@13.0V
- Speed: 0.16sec/ 60° @8.40V 0.12sec/ 60° @12.0V 0.10sec/ 60° @13.0V Start Current 2.79A@8.40V 3.65A@12.0V 4.05A@13.0V
- Motor: 4 pole Brushless DC Motor
- Gear set: Hardened Steel
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Programmable Yes
Technical Specifications
| Rated voltage | DC12.0V |
|---|---|
| Operating voltage | DC8.40V-13.0V |
| Torque | 35.0Kgf.cm@8.40V 40.0Kgf.cm@12.0V 42.0Kgf.cm@13.0V |
| Speed | 0.16sec/ 60° @8.40V 0.12sec/ 60° @12.0V 0.10sec/ 60° @13.0V Start Current 2.79A@8.40V 3.65A@12.0V 4.05A@13.0V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±100° =200° Total |
| Operating temperature | -20℃……+65℃ |
| Soft start | Programmable |
| Programmable | Programmable Yes |
| Case material | Aluminum Alloy |
| Motor type | 4 pole Brushless DC Motor |
| Gear material | Hardened Steel |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 40.5*20*25.5mm±0.2mm |
| Weight | 50g±10% |
| Protocol / interface | PWM Command Interface |
