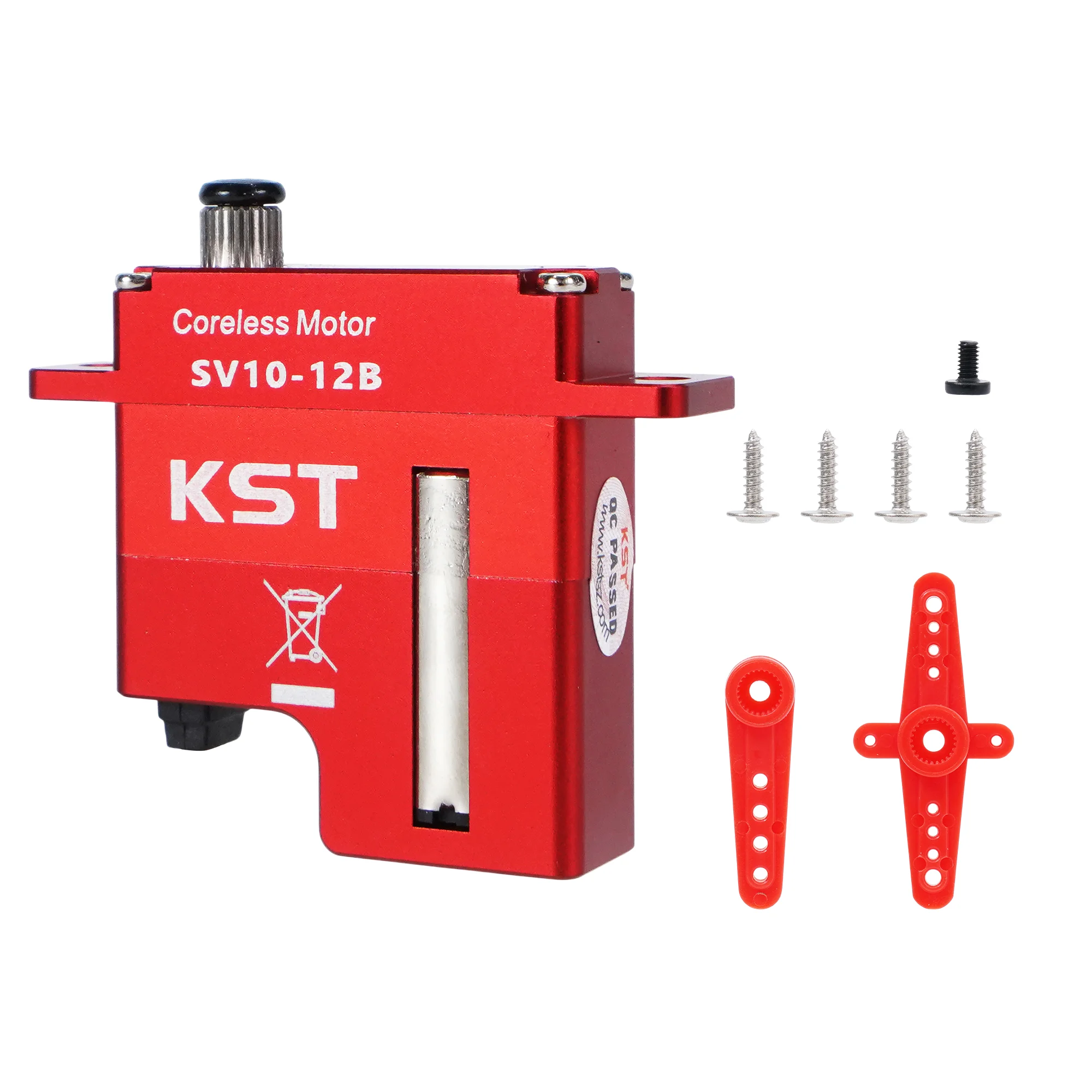

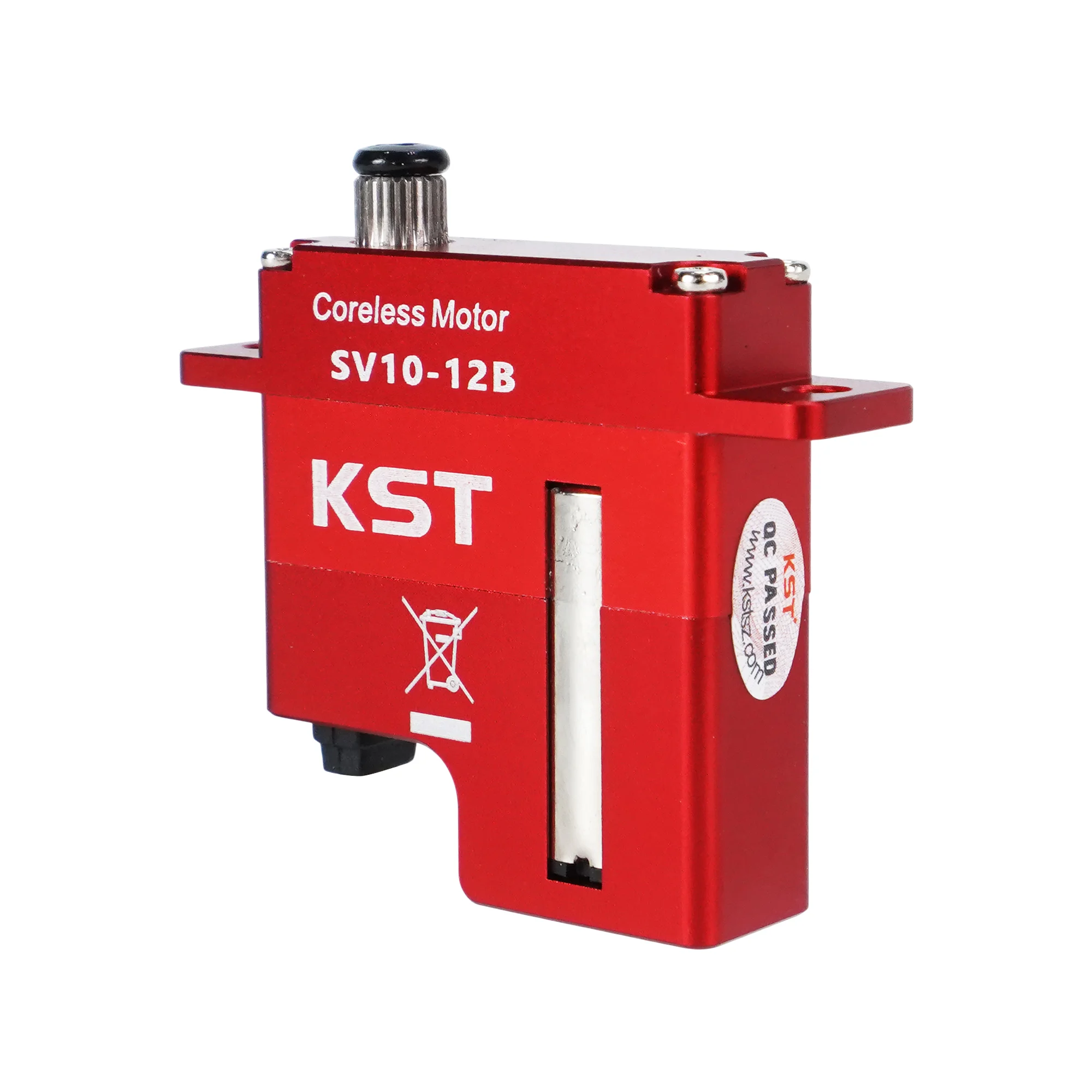

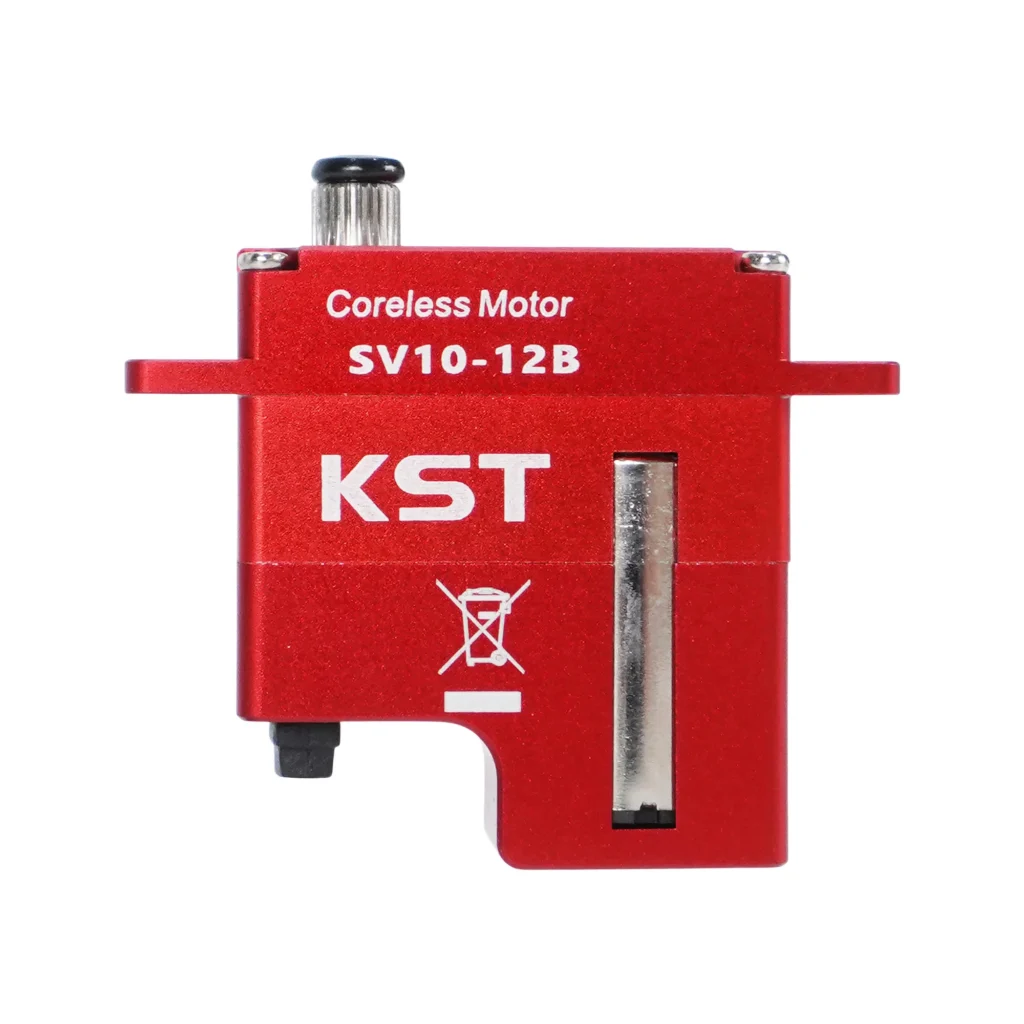

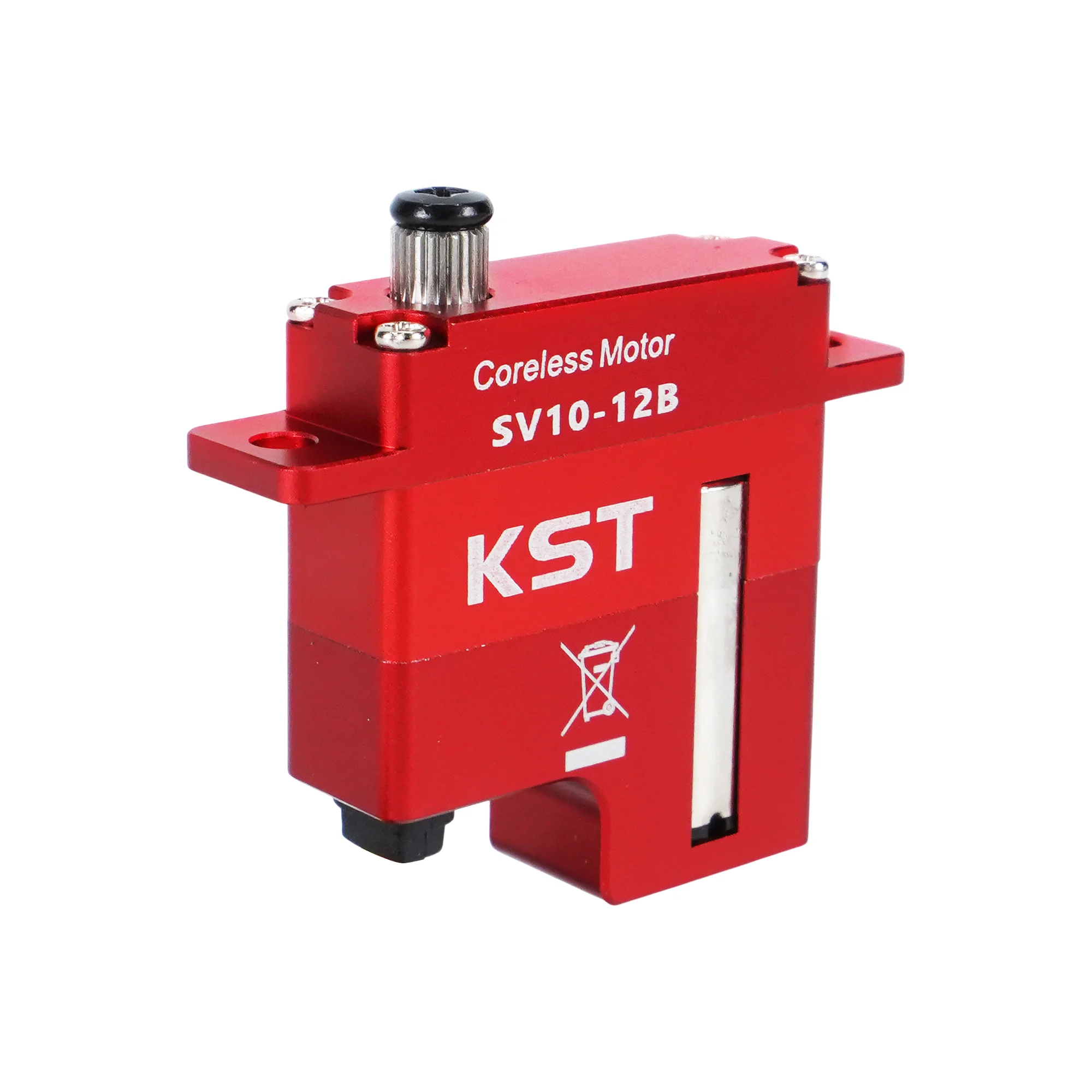

KST SV10-12B Digital Servo
$63.60
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST SV10-12B is a high-voltage programmable digital servo for UAV and robotics integration. The model, official photo set, shared SV10-12 manufacturer datasheet and approved EUR price were matched directly. Only documented specifications are included.
Key Features
- 8.4–13.0 V operating range
- Up to 14 kgf·cm stall torque at 13.0 V
- Speed down to 0.10 sec/60° at 13.0 V
- Coreless motor and hardened-steel gears
- Aluminum-alloy case
- Programmable soft start and travel
Technical Specifications
| Operating voltage | DC 8.4–13.0 V (rated 12.0 V) |
| Stall torque | 11 kgf·cm @ 8.4 V; 13 kgf·cm @ 12.0 V; 14 kgf·cm @ 13.0 V |
| Operating speed | 0.15 / 0.11 / 0.10 sec/60° @ 8.4 / 12.0 / 13.0 V |
| Control signal | PWM, 1520 µs / 333 Hz |
| Default travel | ±60° (120°) |
| Operating temperature | −10 to +65 °C |
| Case / motor / gears | Aluminum alloy / coreless / hardened steel |
| Position sensor | Potentiometer |
| Dimensions / weight | 30 × 10 × 33.5 mm / 25 g |
| Pulse range | 900–2100 µs |
| Reference positions | 1000 / 1500 / 2000 µs = −50° / 0° / +50° |
| Output spline | 25T, 5 mm |
Applications
High-voltage UAV and robotics motion-control assemblies. Final integration suitability must be validated by the system designer.
Datasheet
Download the official KST SV10-12A/B technical specification (PDF)
