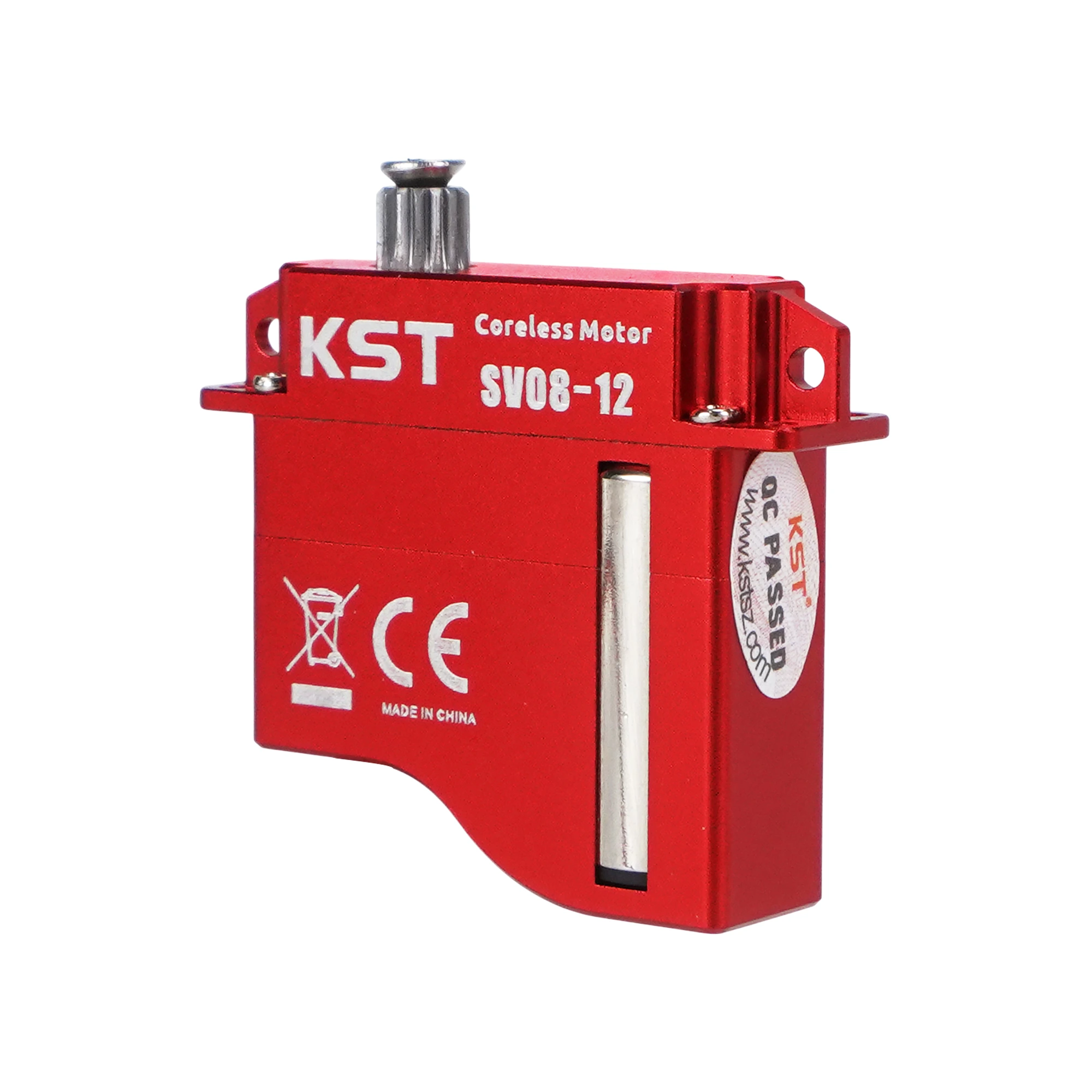

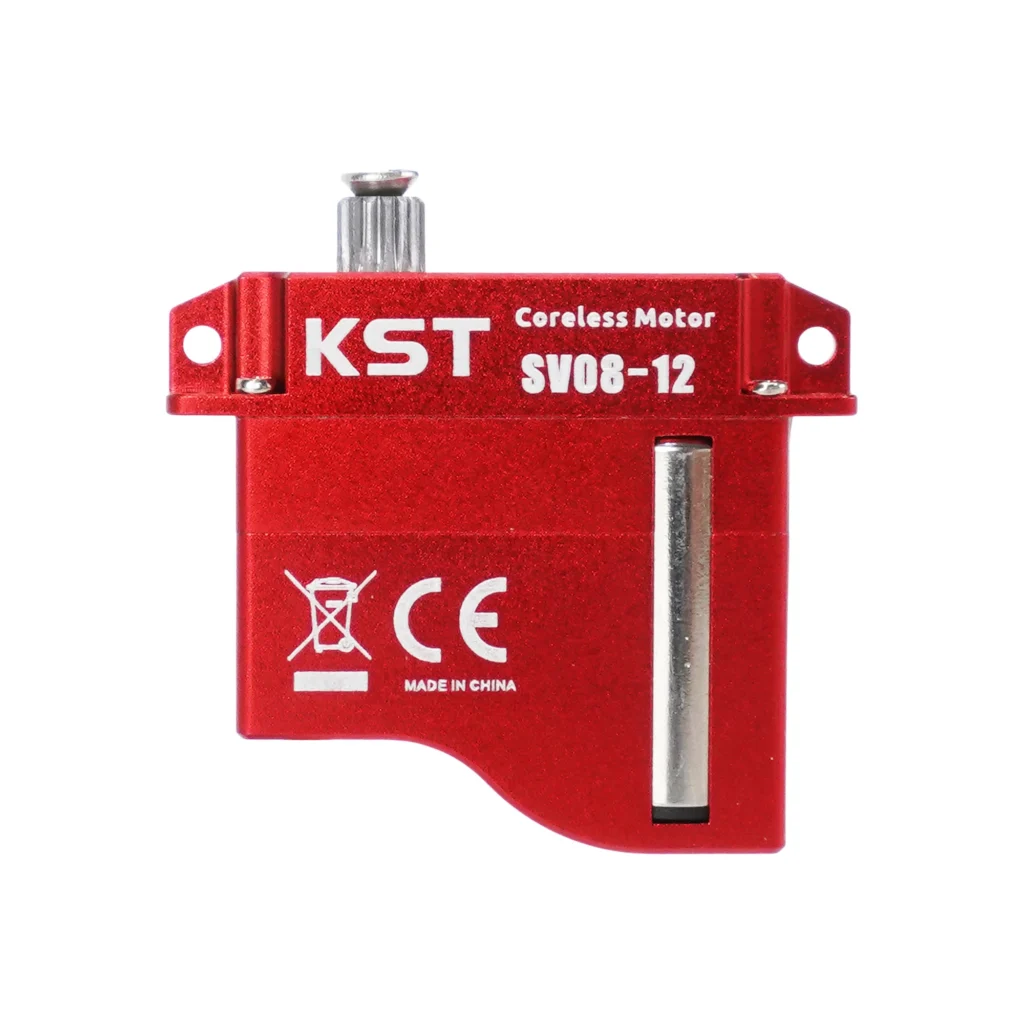

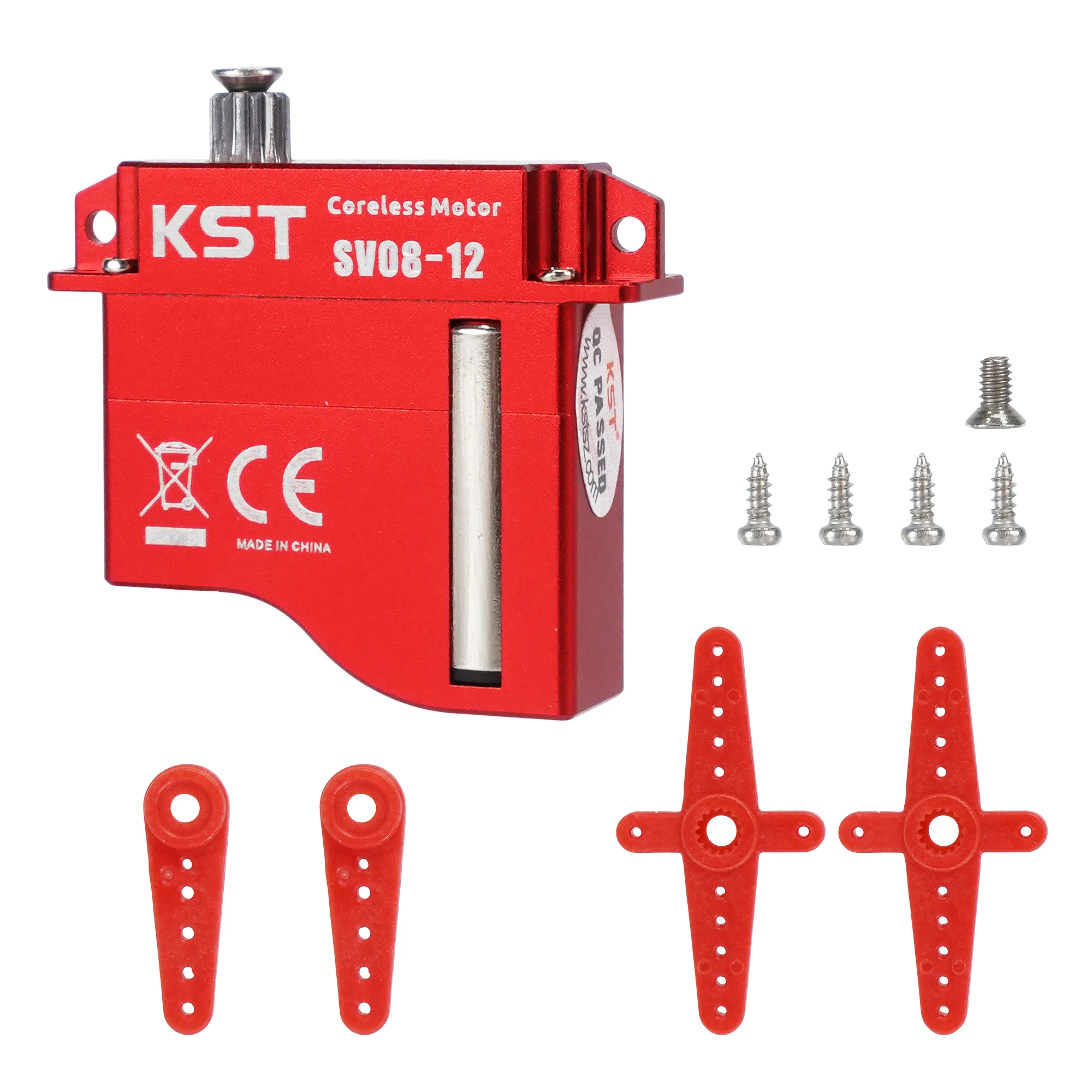

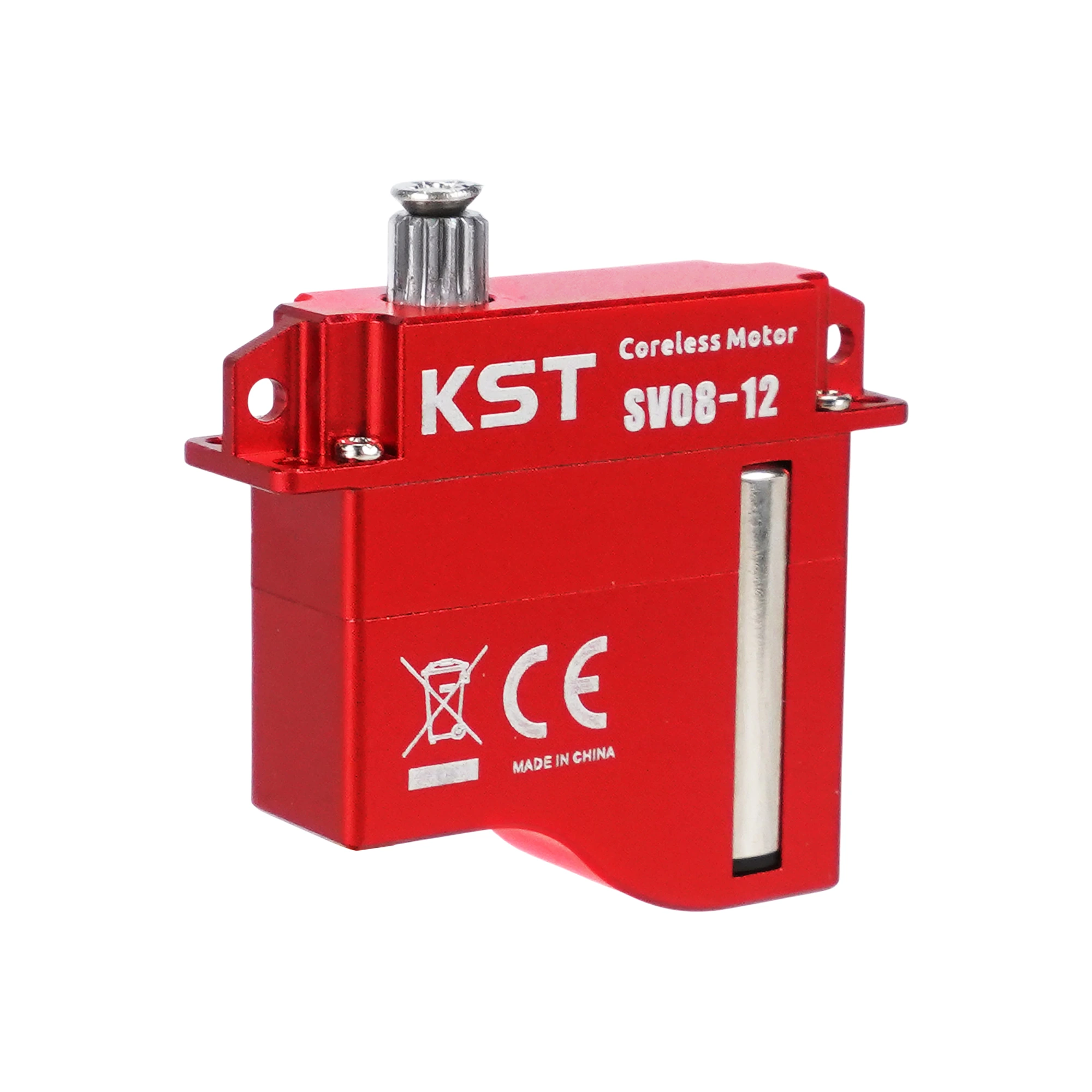

KST SV08-12 Digital Servo
$70.80
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST SV08-12 Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC8.40V-13.0V
- Torque: 5.00Kgf.cm@8.40V 7.00Kgf.cm@12.0V 8.00Kgf.cm@13.0V
- Speed: 0.15sec/ 60° @8.40V 0.10sec/ 60° @12.0V 0.09sec/ 60° @13.0V Start Current 1.18A@12.0V Rated Torque 2.0kgf.cm@12.0V Rated Current 0.35A@12.0V
- Motor: Coreless DC Motor
- Gear set: Hardened Gear
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Programmable Yes
Technical Specifications
| Rated voltage | DC12.0V |
|---|---|
| Operating voltage | DC8.40V-13.0V |
| Torque | 5.00Kgf.cm@8.40V 7.00Kgf.cm@12.0V 8.00Kgf.cm@13.0V |
| Speed | 0.15sec/ 60° @8.40V 0.10sec/ 60° @12.0V 0.09sec/ 60° @13.0V Start Current 1.18A@12.0V Rated Torque 2.0kgf.cm@12.0V Rated Current 0.35A@12.0V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±60° =120° Total |
| Operating temperature | -10℃……+65℃ |
| Soft start | Programmable |
| Programmable | Programmable Yes |
| Case material | Aluminum Alloy Brushless DC Motor Hardened Steel Contactless/Potentiometer |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Gear |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Dimensions | 23.5*8*25.25mm ±0.2mm |
| Weight | 11g ±10% |
| Protocol / interface | PWM Command Interface |
