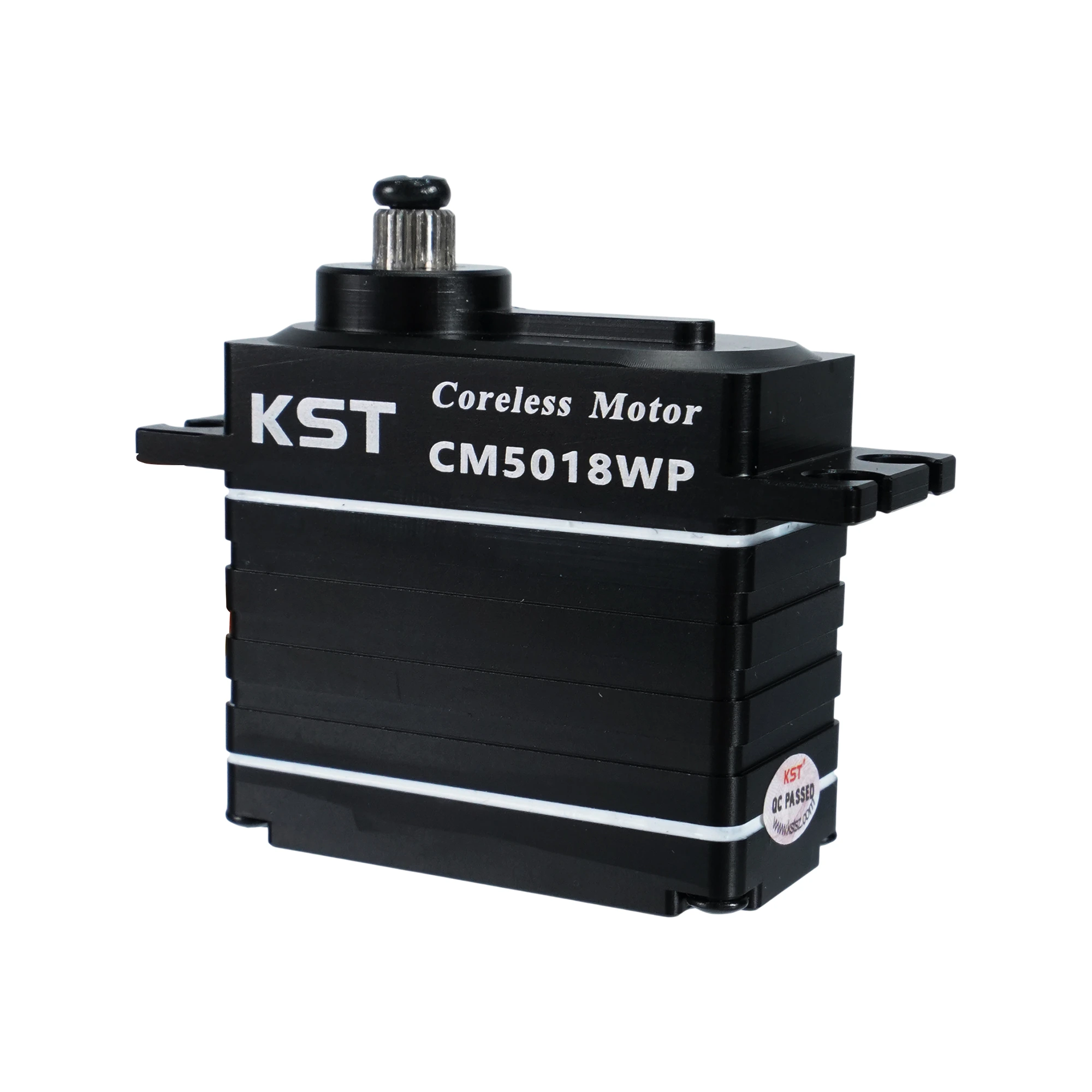

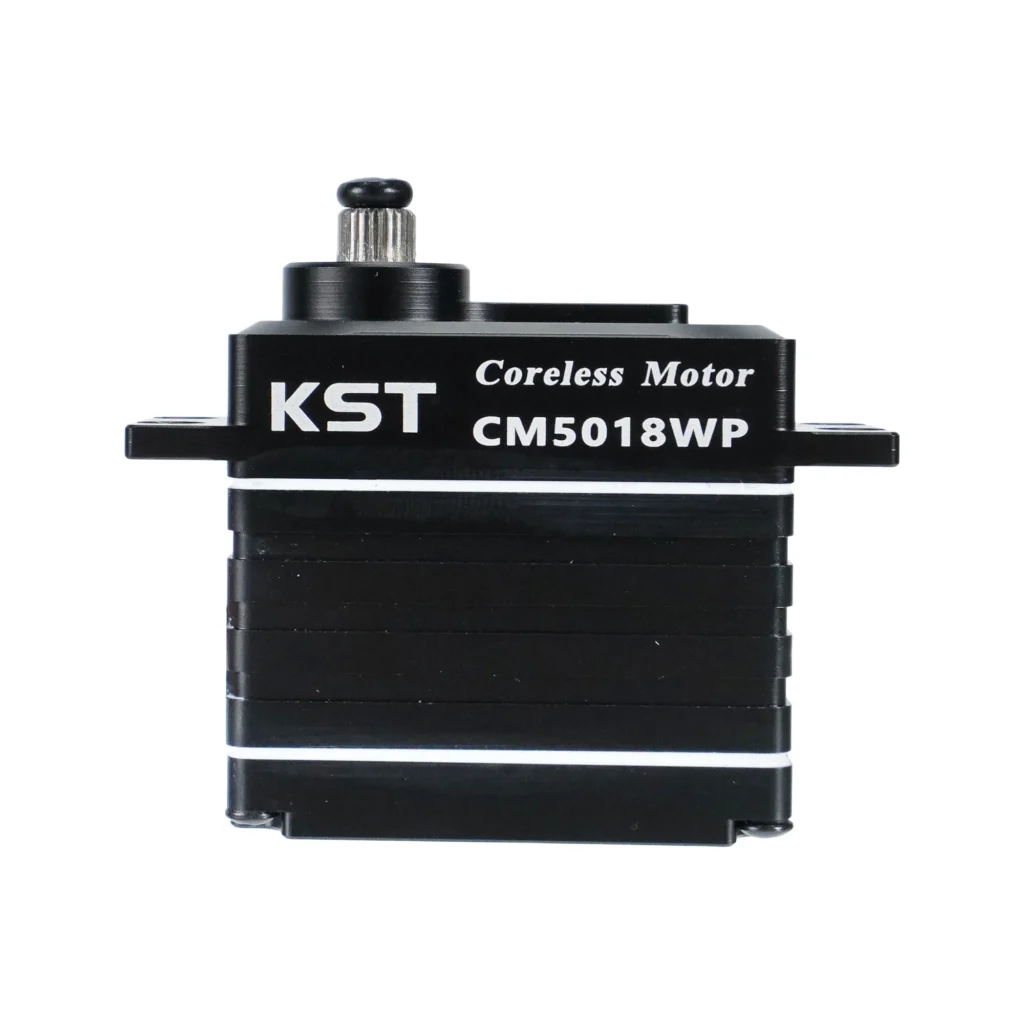

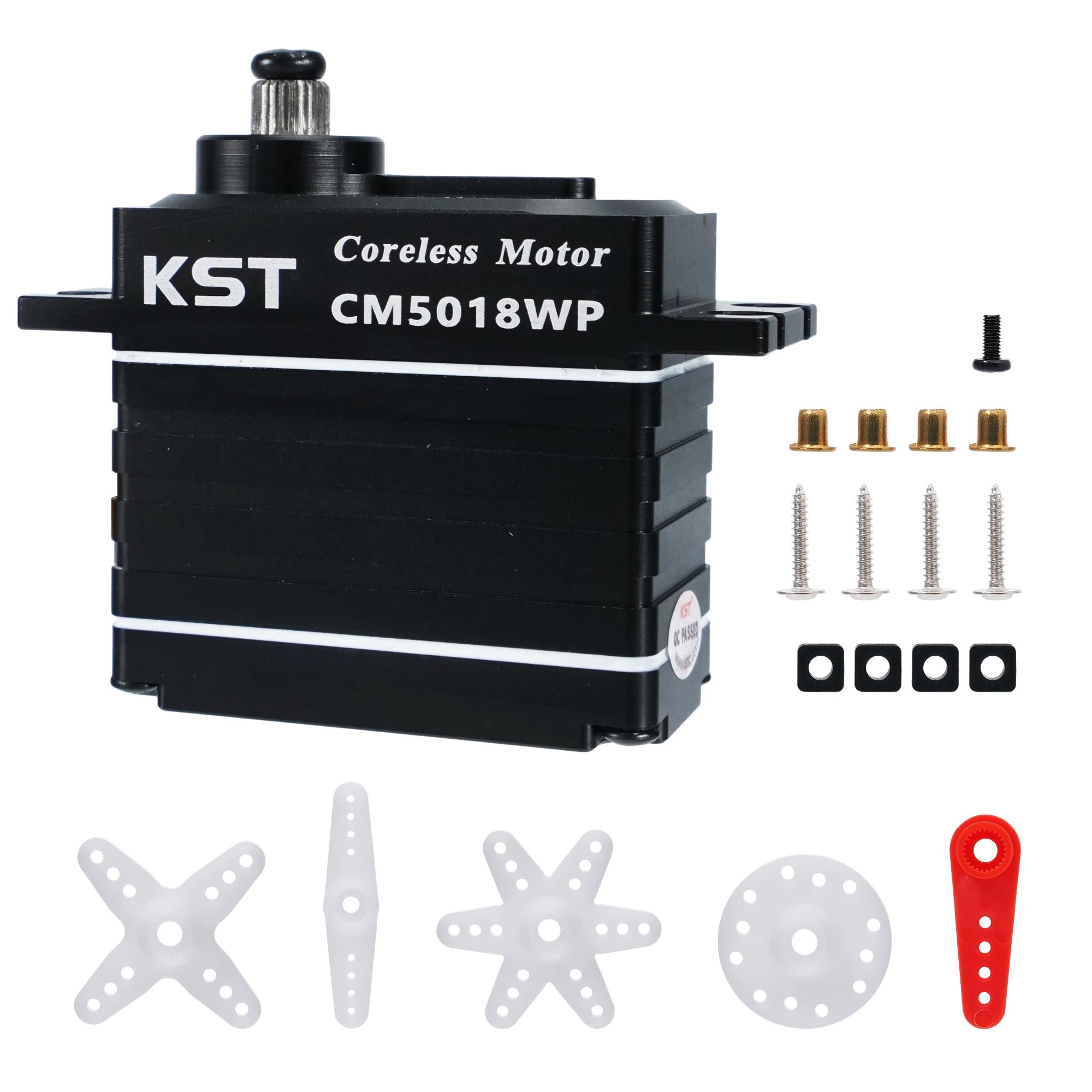

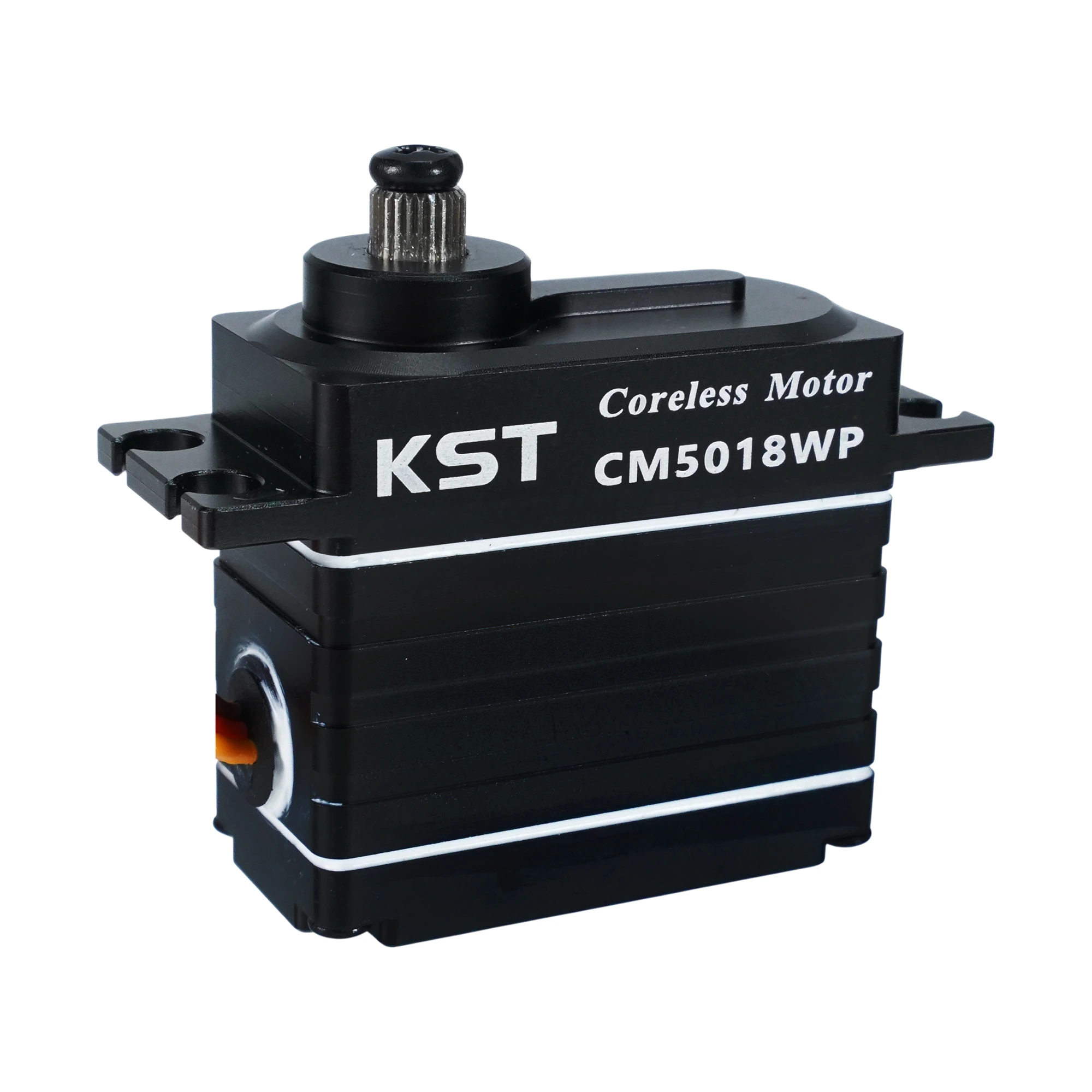

KST CM5018WP Digital Servo
$112.80
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
KST CM5018WP Digital Servo is prepared for engineering integration using the exact official KST model datasheet, model-specific image set and approved EUR price.
Key Features
- Operating voltage: DC4.8V-8.4V
- Torque: 35Kgf.cm@4.8V 40Kgf.cm@6.0V 45Kgf.cm@7.4V 50Kgf.cm@8.4V
- Speed: 0.25sec/ 60° @4.8V 0.23sec/ 60° @6.0V 0.20sec/ 60° @7.4V 0.18sec/ 60° @8.4V Start Current 4.68A@4.8V 5.70A@6.0V 7.25A@7.4V 8.15A@8.4V
- Motor: Coreless DC Motor
- Gear set: Hardened Steel Gear
- Position sensor: Potentiometer
- Interface: PWM Command Interface
- Programmable: Programmable Yes
- Waterproof: IP67
Technical Specifications
| Rated voltage | DC7.4V |
|---|---|
| Operating voltage | DC4.8V-8.4V |
| Torque | 35Kgf.cm@4.8V 40Kgf.cm@6.0V 45Kgf.cm@7.4V 50Kgf.cm@8.4V |
| Speed | 0.25sec/ 60° @4.8V 0.23sec/ 60° @6.0V 0.20sec/ 60° @7.4V 0.18sec/ 60° @8.4V Start Current 4.68A@4.8V 5.70A@6.0V 7.25A@7.4V 8.15A@8.4V |
| Working frequency | 1520us/ 333Hz |
| Travel | ±50° =100° Total |
| Operating temperature | -10℃……+65℃ |
| Soft start | Programmable |
| Programmable | Programmable Yes |
| Case material | Aluminum Alloy |
| Motor type | Coreless DC Motor |
| Gear material | Hardened Steel Gear |
| Position sensor | Potentiometer |
| Bearings | 2BB |
| Waterproof | IP67 |
| Dimensions | 40.5*20.5*41.3mm±0.2mm |
| Weight | 80g±10% |
| Protocol / interface | PWM Command Interface |
