GBM110-150T
$319.44
* – Price shown excluding VAT. VAT will be added to the proforma invoice for private customers and Estonian-registered businesses.
** – Shipping costs are calculated and added based on the delivery destination.
6 in stock
Specification:
- Copper wire (OD) 0.32 mm, Pre-wound with 150 turns.
- Interfacial resistance 17.2 Ohms
- Motor Dimension 110 mm (OD) × 26 mm (Height)
- Stator Dimension 100 mm (OD) × 8 mm (Height)

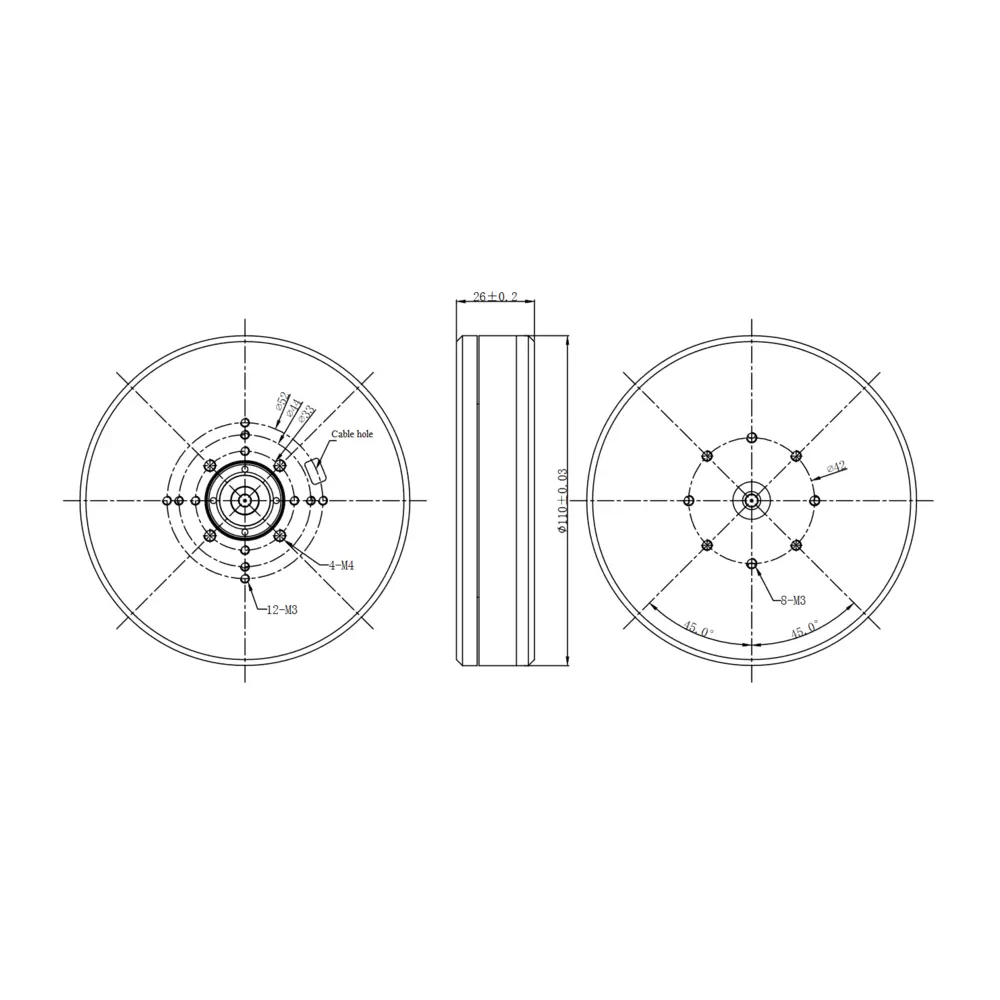

- Mounting holes — see drawing
- Hollow Shaft Diameter (internal) 12.6 mm, narrowed to 6 mm at the magnet mounting place
- Configuration 24N28P
- Wire length: 450 mm including JR plug
- Camera weight 5—8 kg
- Magnet type: Spare, rare-earth
